060L224166

Part Number: 060L224166
060L224166
Manufacturer
Danfoss
Part number
060L224166
Category

Product Information

Extended Description

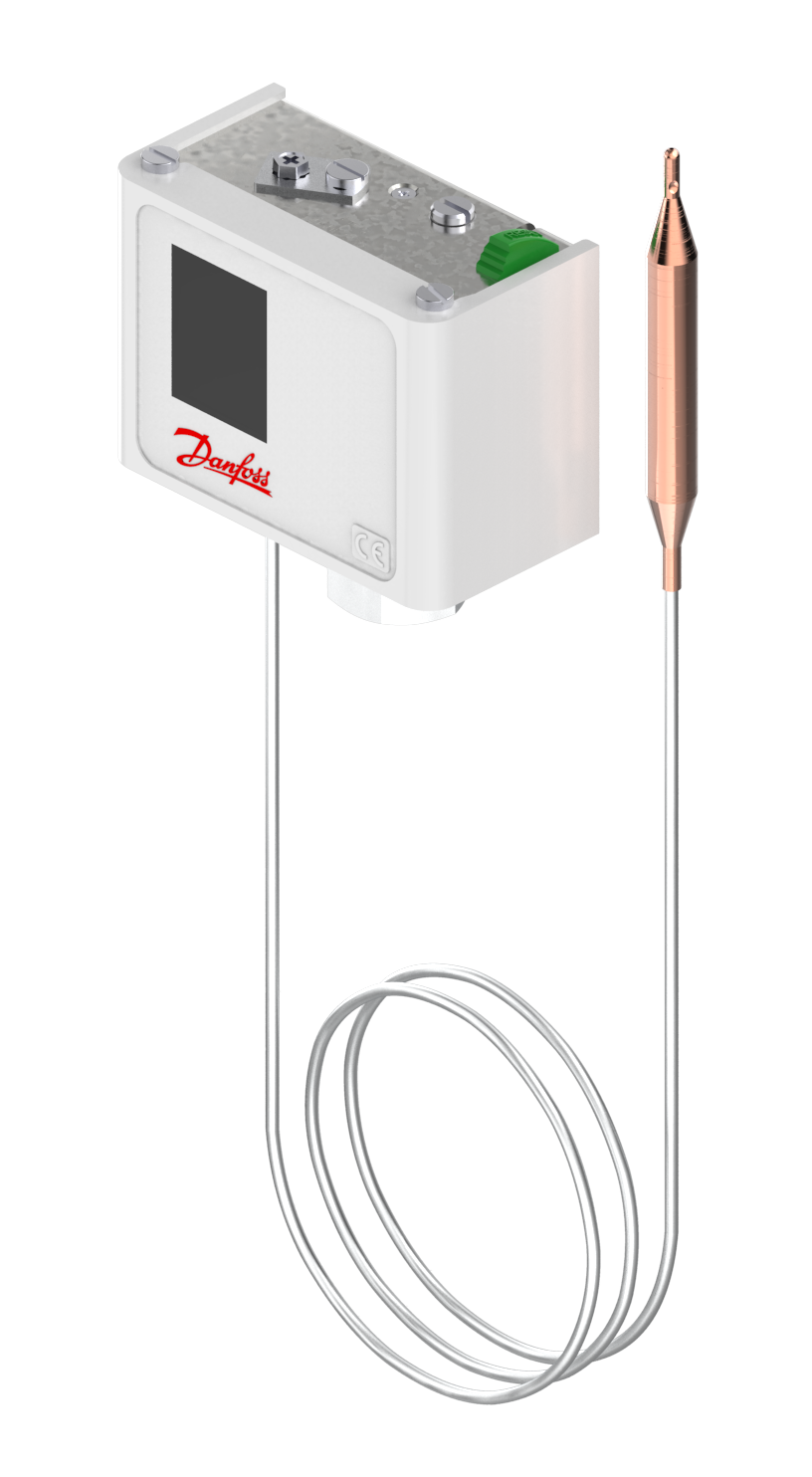

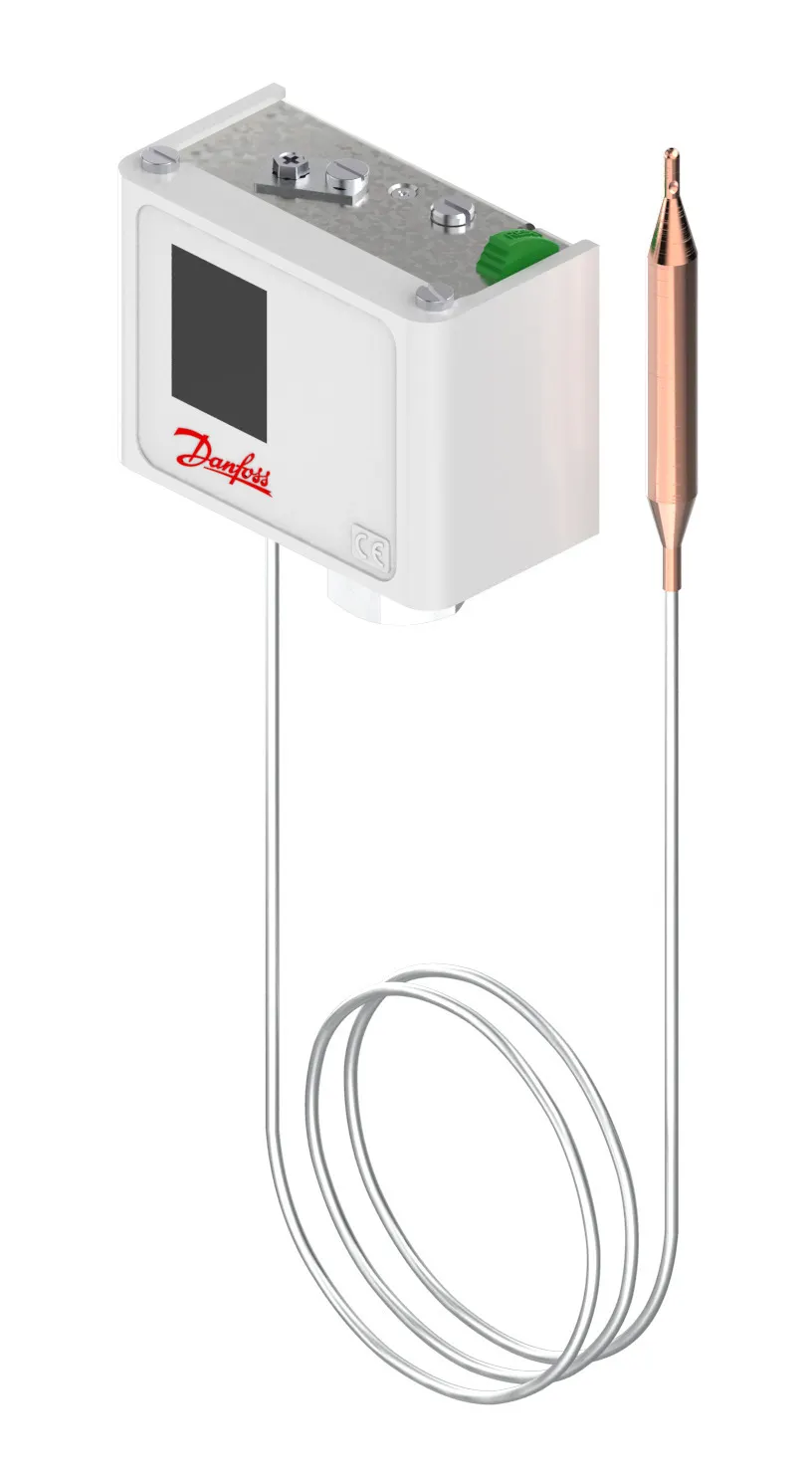

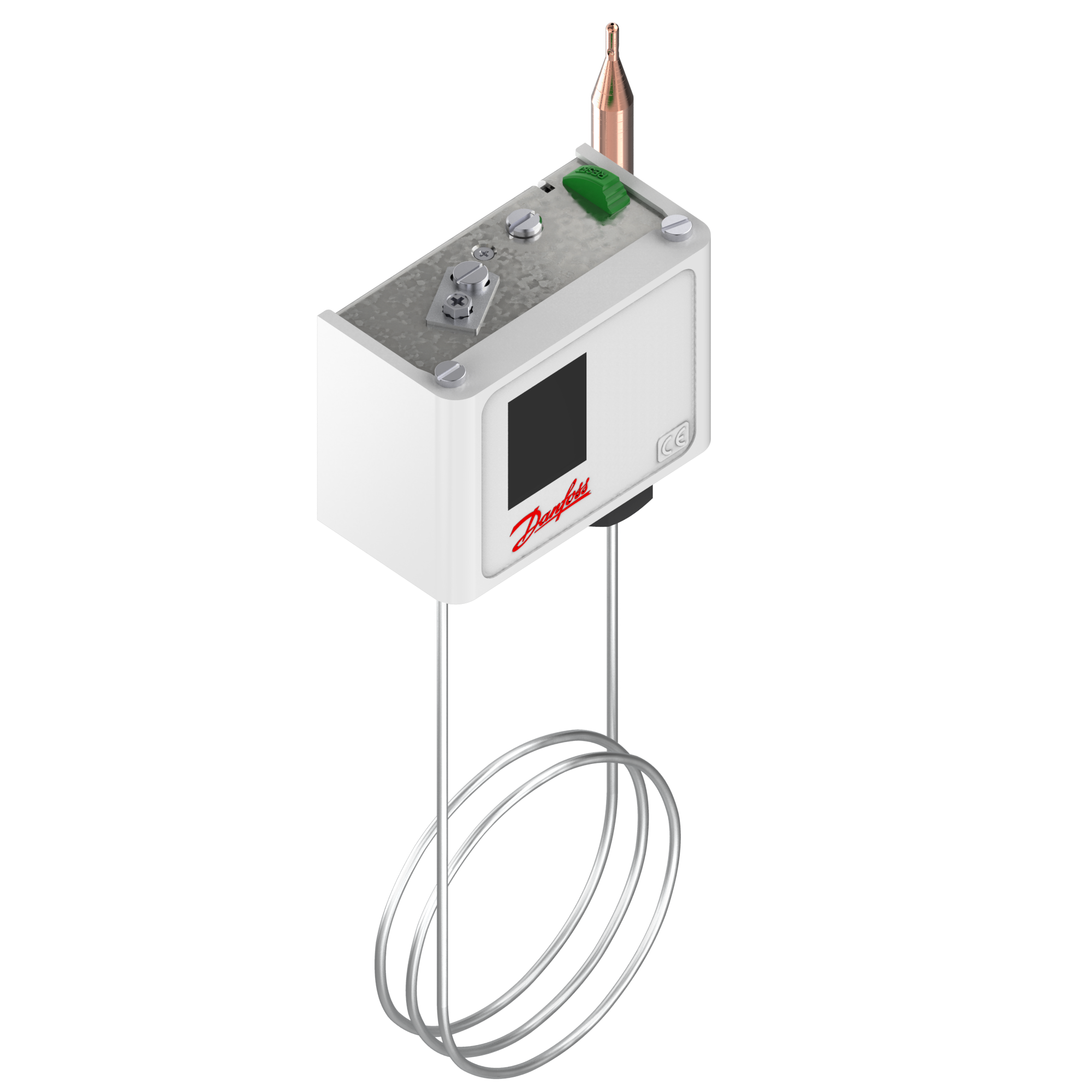

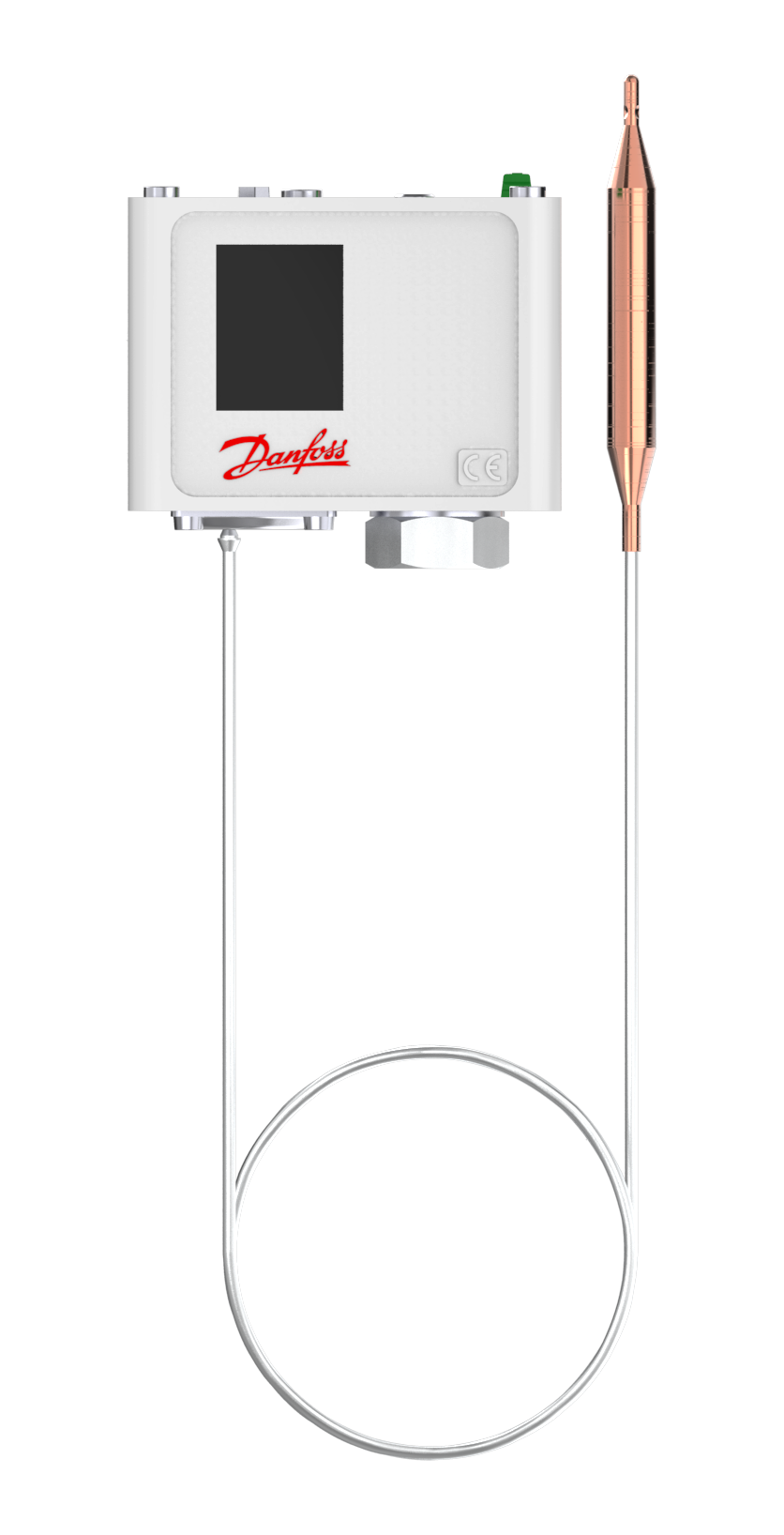

060L224166 Danfoss: Temperature range [°C]: 80 - 116, Reset function: Manual Max, Contact function: SPDT, Sensor type: Remote bulb, Capillary tube length [mm]: 2030, Enclosure rating IP: IP30
Gross weight
0.458 Kilogram
Net weight
0.389 Kilogram
Volume
1.281 Liter
EAN
5702423229505
Amb. Temp. Note
80 °C/176 °F for max 120 min
Ambient temperature range [°C] [max]
65 °C
Ambient temperature range [°C] [min]
-40 °C
Ambient temperature range [°F] [max]
150 °F
Ambient temperature range [°F] [min]
-40 °F
Approval
BV,CCC,CE,CMIM,DNV,EAC,GL,LLC CDC EURO-TYSK,LVD,PZH,RINA,RMRS,RoHS China,c UL us UL353, CS C22.2,c UL us UL873, CS C22.2
Cap. tube length fraction [in]
80 in
Capillary tube length [mm]
2030 mm
CE evaluated
Yes
Charge type
Adsorption
China RoHS compliance
Yes
Contact function
SPDT
Contact rating
120 V AC, 16 FLA, 96 LRA,16 A resistive, single phase,240 V AC, 8 FLA, 48 LRA,8 A resistive, single phase,Pilot Duty: 120/240 V ac 3A,Pilot Duty: 240V dc 12W(0.05A)
Contain batteries
No
Diff. @ Max. range setting [K]
9 K
Diff. @ Max. range setting[°C]
9 °C
Diff. @ Max. range setting[°F]
16 °F
Diff. @ Min. range setting [K]
9 K
Diff. @ Min. range setting[°C]
9 °C
Diff. @ Min. range setting[°F]
16 °F
Differential type
Fixed
Electrical conn. Male/Female
Female
Electrical connection
Swivel cable connector
Electrical connection size
NPSM 1/2 - 14
Electrical connection standard
ANSI/ASME B1.20.1
Electrical spec. standard
EN 60947-4/-5
EN 60947 electrical properties
Insulation: 400V,Pollution degree: 3,Rated impulse voltage: 4 kV,Short circuit prot, fuse: 16A
EN 60947 wiring properties
Flex, ferrules: 0.5-1.5 mm2,Flex, no ferrules: 0.7-2.5 mm2,Solid/stranded: 0.75-2.5 mm2
Enclosure rating IP
IP30
Enclosure rating Nema (~)
1
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Max. sensor temperature [°C]
200 °C
Max. sensor temperature [°F]
392 °F
Packing format
Multi pack
Parts included
screws
Product accessories
Switches accessories
Product description
Thermostat
Product group
Switches and thermostats
Product Name Description
Thermostat
Quantity per packing format
32 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Reset function
Manual Max
SCIP dossier no.
b1323c86-8856-44cc-b1c6-6849abe37ee4
SCIP dossier product name
KP/KPI pressure switch
Sensor size (Ø x L) [in]
3/8 x 3 3/8 in
Sensor size (Ø x L) [mm]
9.5 x 85 mm
Sensor type
Remote bulb
Serviceable
No
Temperature range [°C] [max]
116 °C
Temperature range [°C] [min]
80 °C
Temperature range [°F] [max]
240 °F
Temperature range [°F] [min]
175 °F
Type
KP81
UK RoHS compliance
Yes
UL approval file name
E31024,MH27572
UL evaluated
Yes
017-420166
Switches accessories, Sensor Holder Kit
017-420366
Switches accessories, Sensor Clamp
017-420466
Switches accessories, Clamping Band Ass'y
017-421666
Switches accessories, Sensor Pocket
017-422066
Generic accessories, Tube Gland For RT
017-436966
Switches accessories, Sensor Pocket KP/RT Stainless 112mm G ½"
017-437066
Switches accessories, Sensor Pocket KP/RT 112mm G½"
060-003166
Switches accessories, Protective Cap For KP Single
060-105366
Switches accessories, Bracket Angle
060-109766
Switches accessories, Top Plate For KP Single
