060L600066

Part Number: 060L600066
060L600066
Manufacturer
Danfoss
Part number
060L600066
Category

Product Information

Extended Description

060L600066 Danfoss: Temperature range [°C]: 20 - 60, Reset function: Auto, Contact function: SPDT, Sensor type: Remote bulb, Capillary tube length [mm]: 2000, Enclosure rating IP: IP30
Gross weight
0.413 Kilogram
Net weight
0.349 Kilogram
Volume
1.874 Liter
EAN
5702428014830
Alarm Signal
Rising
Amb. Temp. Note
80 °C/176 °F for max 120 min
Ambient temperature range [°C] [max]
70 °C
Ambient temperature range [°C] [min]
-40 °C
Ambient temperature range [°F] [max]
158 °F
Ambient temperature range [°F] [min]
-40 °F
Approval
BV,CCC,CE,CMIM,DNV,EAC,GL,LLC CDC EURO-TYSK,LR,LVD,PZH,RINA,RMRS,RoHS China,c UL us UL873, CS C22.2
Cap. tube length fraction [in]
78 3/4 in
Capillary tube length [mm]
2000 mm
CE evaluated
Yes
Charge type
Adsorption
China RoHS compliance
Yes
Contact function
SPDT
Contact rating
AC15=10 A, 400 V,AC1=16 A, 400 V,AC3=16 A, 400 V,DC13=12 W, 220 V,LR=112 A, 400 V
Contain batteries
No
Differential (FS) [K]
5 K
Differential type
Fixed (max. value)
Electrical connection
Rubber cable gland
Electrical connection size
6-14 mm
Electrical spec. standard
EN 60947-5
EN 60947 electrical properties
Insulation: 400V,Pollution degree: 3,Rated impulse voltage: 4 kV,Short circuit prot, fuse: 16A
EN 60947 wiring properties
Flex, ferrules: 0.5-1.5 mm2,Flex, no ferrules: 0.7-2.5 mm2,Solid/stranded: 0.75-2.5 mm2
Enclosure rating IP
IP30
Enclosure rating Nema (~)
1
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Factory setting (FS) [°C]
35 °C
Factory setting type
Dedicated
Max. sensor temperature [°C]
130 °C
Max. sensor temperature [°F]
266 °F
Packing format
Industrial pack
Product accessories
Switches accessories
Product description
Thermostat
Product group
Switches and thermostats
Product Name Description
Thermostat
Quantity per packing format
24 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Reset function
Auto
SCIP dossier no.
be15a44e-80b1-41bd-9578-c8ff1cd7b9f3
Sensor size (Ø x L) [in]
3/8 x 3 3/8 in
Sensor size (Ø x L) [mm]
9.5 x 85 mm
Sensor type
Remote bulb
Serviceable
No
Temperature range [°C] [max]
60 °C
Temperature range [°C] [min]
20 °C
Temperature range [°F] [max]
140 °F
Temperature range [°F] [min]
68 °F
Type
KP77
UK RoHS compliance
Yes
UL approval file name
E31024
UL evaluated
Yes
017-420166
Switches accessories, Sensor Holder Kit
017-420366
Switches accessories, Sensor Clamp
017-420466
Switches accessories, Clamping Band Ass'y
017-421666
Switches accessories, Sensor Pocket
017-422066
Generic accessories, Tube Gland For RT
017-436966
Switches accessories, Sensor Pocket KP/RT Stainless 112mm G ½"
017-437066
Switches accessories, Sensor Pocket KP/RT 112mm G½"
060-003166
Switches accessories, Protective Cap For KP Single
060-033066
Switches accessories, IP55 Enclosure For KP (Single)
060-062866
Switches accessories, IP55 Transparent Enclosure

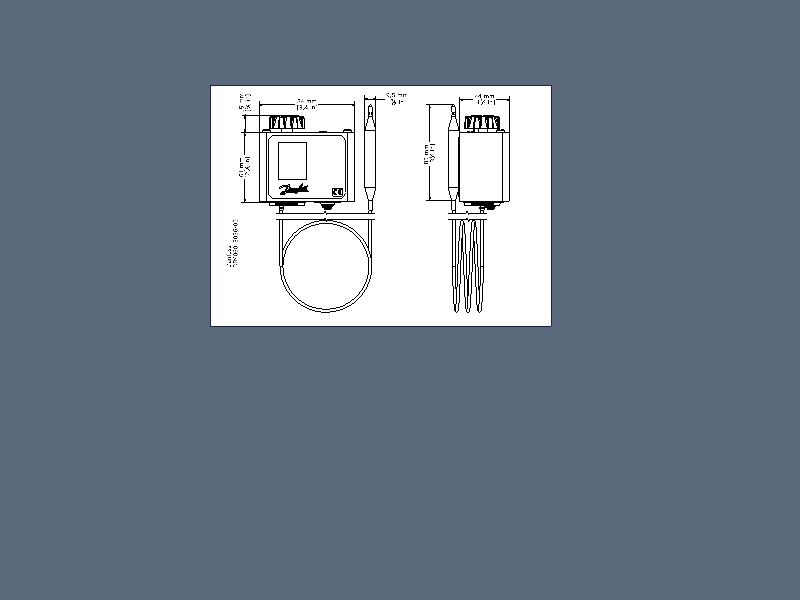

Switches and thermostats - Industrial Refrigeration product group catalogue Thermostat type KP Thermostat Type KP, Spare parts and accessories Thermostat KP 61 – KP 85 Thermostat type KP Danfoss CCC 2024010305641303 Danfoss EU 060-9650AF UL E31024 Pressure switches & Thermostats Danfoss MD 060-9638.AA BV SMS.W.II-2179-C.0 BV 02281-K0 BV DNV TAA000026F Rev.01 LR21356588TA RINA ELE086320XG-001 Thermostat, KP77 060L600066 KP 61 - KP 81 dimensions, without sensor bulb Thermostat, KP77 060L600066 Thermostat, KP77 060L600066 KP77 Thermostat KP77 Thermostat
