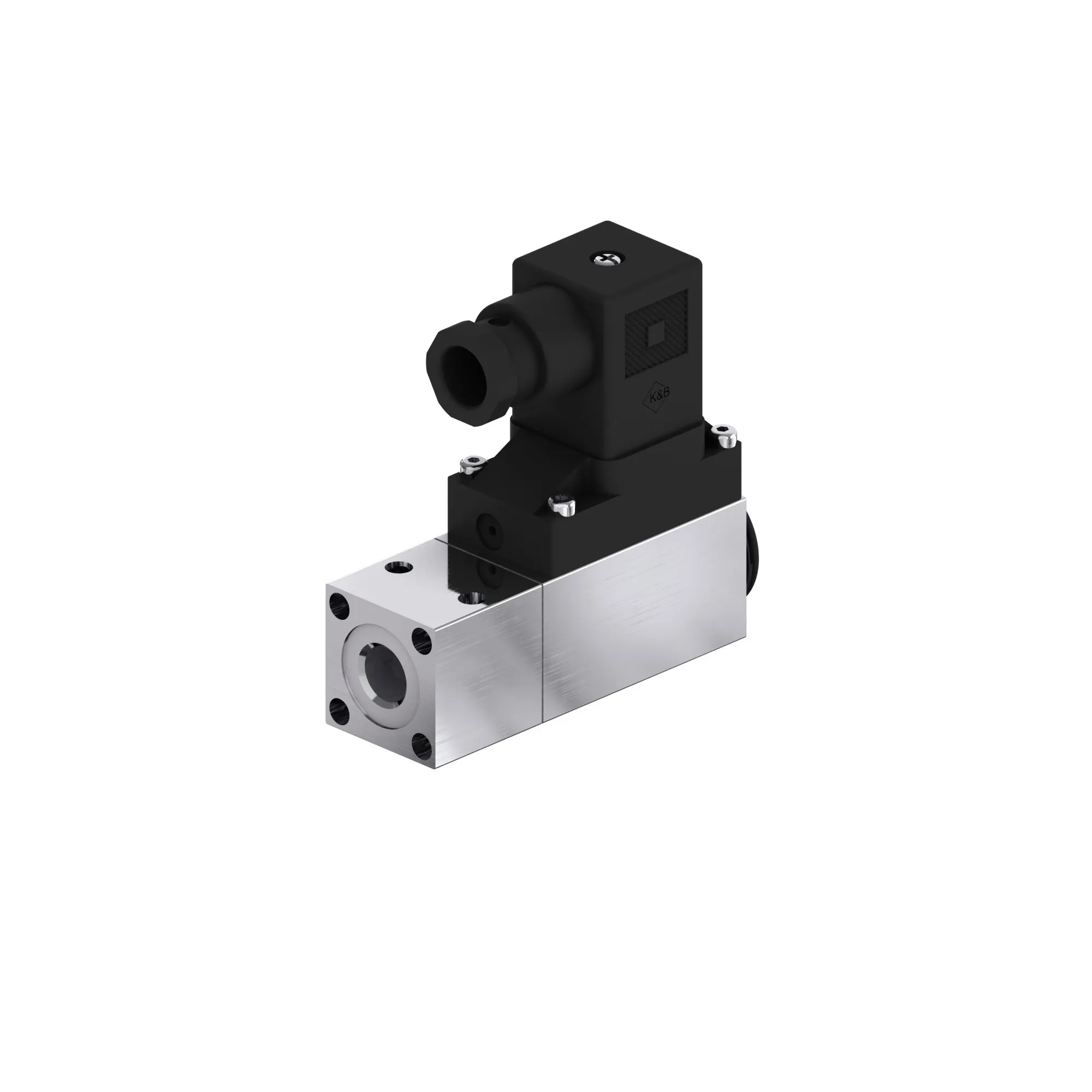

061B100166
Part Number: 061B100166
Product Information
Extended Description
061B100166 Danfoss: Regulation range [bar] Pe: 10.00 - 100.00, Reset function: Auto, Pressure connection type: G, Pressure connection size: 1/4, Enclosure rating IP: IP65, Max. Working Pressure [bar]: 150.0
Gross weight
0.296 Kilogram
Net weight
0.248 Kilogram
Volume
0.647 Liter
EAN
5702423244478
Ambient temperature range [=C2=B0C] [max]
85 =C2=B0C
Ambient temperature range [=C2=B0C] [min]
-10 =C2=B0C
Ambient temperature range [=C2=B0F] [max]
185 =C2=B0F
Ambient temperature range [=C2=B0F] [min]
14 =C2=B0F
Approval
ABS,BV,CCC,CCS,CE,CMIM,DNV,EAC,GL,KRS,LLC CDC EURO-TYSK,LR,LVD,NKK,RINA,RMRS,RoHS,RoHS China,TYSK
Burst pressure [bar]
300 bar
CE evaluated
Yes
China RoHS compliance
Yes
Contact function
SPDT
Contact rating
AC15=3D0.5 A, 250 V,DC13=3D12 W, 125 V
Contain batteries
No
Diff.@Max. range setting [bar]
12 bar
Diff.@Min. range setting [bar]
4 bar
Electrical conn. Male/Female
Female
Electrical connection
DIN-plug
Electrical connection size
Pg 11
Electrical connection standard
EN 175301-803-A
Electrical spec. standard
EN 60947-5
Enclosure rating IP
IP65
EU RoHS compliance
Out of scope
Max. test pressure [bar] Pe
150 bar
Max. test pressure [psig]
2176 psig
Max. Working Pressure [bar]
150 bar
Max. Working Pressure [psig]
2175 psig
Other RoHS documentation
Saudi Arabia RoHS
Packing format
Multi pack
Pressure connection size
1/4
Pressure connection standard
ISO 228-1
Pressure connection type
G
Pressure Male/Female
Female
Pressure sensing element
Diaphragm
Product accessories
Switches accessories
Product description
Pressure Switch
Product group
Switches and thermostats
Product Name Description
Pressure switch
Quantity per packing format
32 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Regulation range [bar] Pe [max]
100 bar
Regulation range [bar] Pe [min]
10 bar
Regulation range [MPa] Pe [max]
10 MPa
Regulation range [MPa] Pe [min]
1 MPa
Reset function
Auto
SCIP dossier no.
c9549e84-c103-45b0-86ec-6021ce3385c8
Serviceable
No
Specification key
4241-1CB04
Type
MBC 5100
UK RoHS compliance
Out of scope
061B400166
Test valves accessories, Damping Device For MBC
061B400266
Test valves accessories, Damping Device For MBC
Pressure switch type MBC 5000 and MBC 5100
Heavy duty pressure switch, type MBC 5000 and MBC 5100
Danfoss CCC 20240103056411307
Danfoss EU 060-9680.AB
Pressure switches & Thermostats
Danfoss MD 060-9639.AB
ABS 20-LD1960092-PDA
BV 06095-G0 BV
DNV GL TAA00001W8 Rev. 3
KR HMB 17529-AE005
LR 2010633TA
NKK TA22325M
Pressure switch, MBC 5100_061B100066, 061B103066

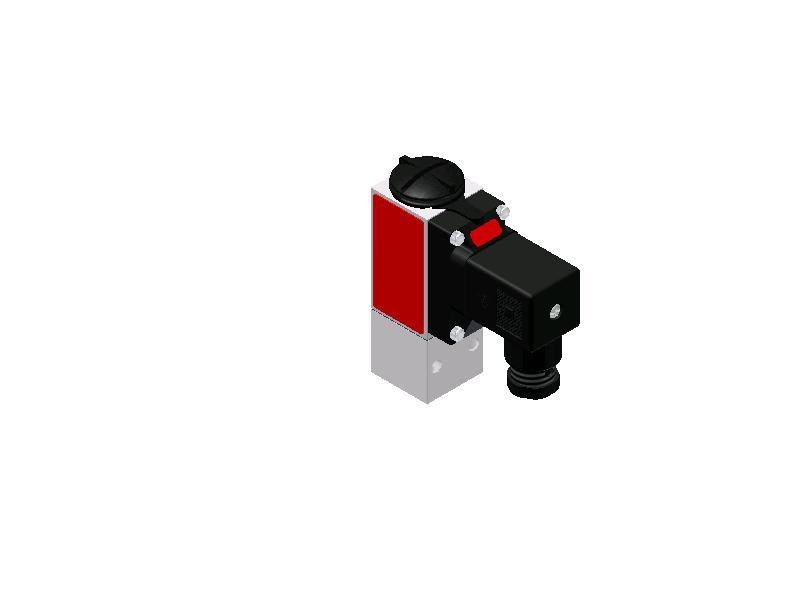

MBC 5100 Pressure Control
MBC 5100 Pressure Control
