061F7282
Part Number: 061F7282
Product Information
Extended Description
061F7282 Danfoss: Higher activ. pressure [bar]: 1.50, Lower activ. pressure [bar]: 0.40, Reset function: Auto, Contact function: SPST(NO), Pressure connection type: Flare, Pressure connection size: 1/4 in, Electrical connection: Cable, Enclosure rating IP: IP65
Gross weight
0.045 Kilogram
Net weight
0.043 Kilogram
Volume
0.125 Liter
EAN
5702428266024
Ambient temperature range [°C] [max]
85 °C
Ambient temperature range [°C] [min]
-30 °C
Ambient temperature range [°F] [max]
185 °F
Ambient temperature range [°F] [min]
-20 °F
Approval
CE
Burst pressure [bar]
200 bar
Burst pressure [psig]
2900 psig
Cable length [in]
11.81 in
Cable length [m]
0.3 m
Cable type
AWG18
CE evaluated
Yes
China RoHS compliance
Out of scope
Contact function
SPST(NO)
Contact rating
AC=4 A, 250 V
Contain batteries
No
Electrical connection
Cable
Enclosure rating IP
IP65
EU RoHS compliance
Out of scope
Higher activ. pressure [bar]
1.5 bar
Higher activ. pressure [psi]
22 psi
Housing
Regular hot-melt
Lower activ. pressure [bar]
0.4 bar
Lower activ. pressure [psi]
6 psi
Lubricants compatibility
Oilfree applications
Max. Working Pressure [bar]
35 bar
Max. Working Pressure [psig]
508 psig
Medium temperature range [°C] [max]
135 °C
Medium temperature range [°C] [min]
-55 °C
Medium temperature range [°F] [max]
275 °F
Medium temperature range [°F] [min]
-70 °F
Mounting
Vertical +/- 45º
Oil free refrigerants
R134a,R513A
Packing format
Industrial pack
Pressure connection notes
No deflator
Pressure connection size
1/4 in
Pressure connection type
Flare
Pressure Male/Female
Female
Pressure range category
Low pressure
Product accessories
Switches accessories
Product group
Switches and thermostats
Product Name Description

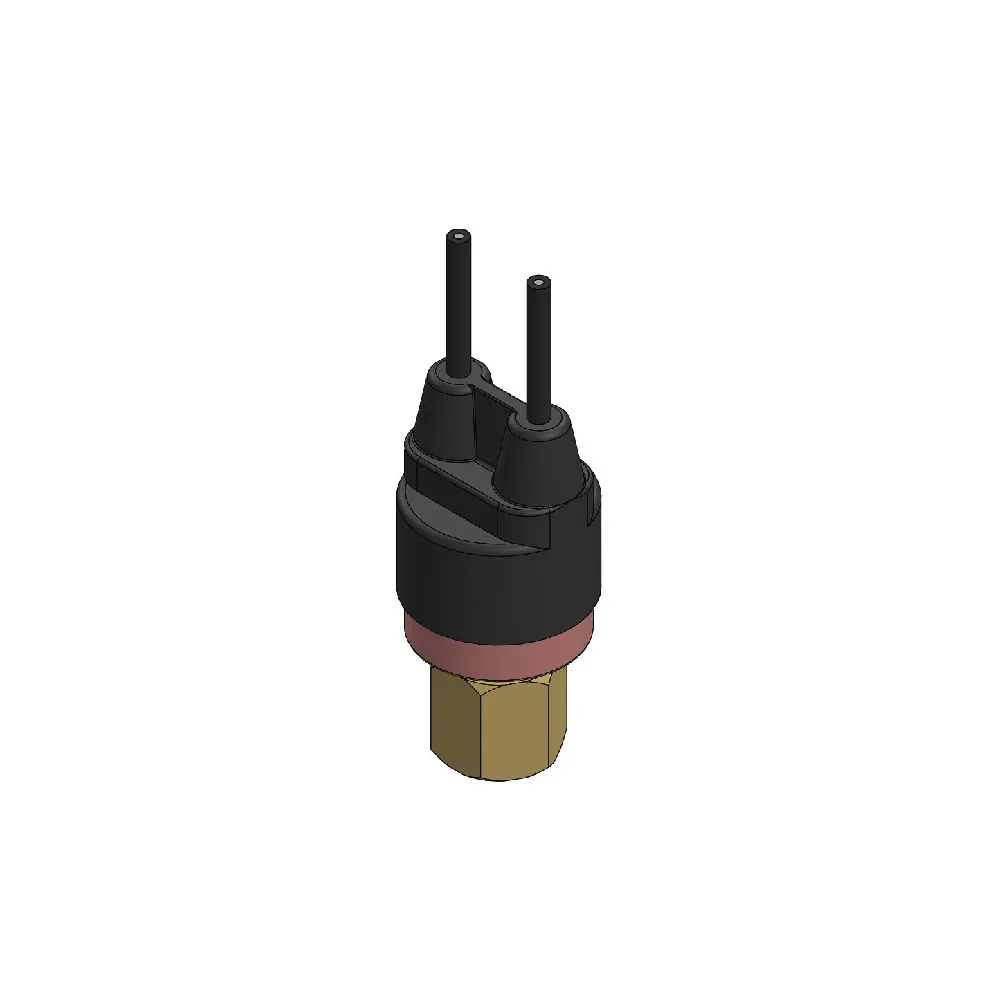

Cartridge pressure switch
Quantity per packing format
100 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerants
R125,R134a,R22,R404A,R407C,R407H,R410A,R438A,R448A,R449A,R452A,R513A
Reset function
Auto
SCIP dossier no.
3214dac9-e7f5-4553-abfe-56ba718eab3c
SCIP dossier product name
ACB/LCB, Cartridge pressure switch, flare connection
Serviceable
No
Specification key
LCB-LA49
Type
LCB
UK RoHS compliance
Out of scope
Wire colour
Red
