061F8764
Part Number: 061F8764
Product Information
Extended Description
061F8764 Danfoss: Higher activ. pressure [bar]: 17.00, Lower activ. pressure [bar]: 14.00, Reset function: Auto, Contact function: SPST(NO), Pressure connection type: Solder, ODM, Pressure connection size: 1/4 in, Electrical connection: Spade connectors, Enclosure rating IP: IP40
Gross weight
0.024 Kilogram
Net weight
0.023 Kilogram
Volume
0.063 Liter
EAN
5702428260756
Ambient temperature range [°C] [max]
85 °C
Ambient temperature range [°C] [min]
-30 °C
Ambient temperature range [°F] [max]
185 °F
Ambient temperature range [°F] [min]
-20 °F
Approval
C UL US UL873,CE 0035,TÜV
Burst pressure [bar]
200 bar
Burst pressure [psig]
2900 psig
CE evaluated
Yes
China RoHS compliance
Yes exceed limitations
Contact function
SPST(NO)
Contact rating
AC=6 A, 250 V
Contain batteries
No
Electrical connection
Spade connectors
Enclosure rating IP
IP40
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Higher activ. pressure [bar]
17 bar
Higher activ. pressure [psi]
247 psi
Housing
Regular
Lower activ. pressure [bar]
14 bar
Lower activ. pressure [psi]
203 psi
Lubricants compatibility
Oilfree applications
Max. Working Pressure [bar]
45 bar
Max. Working Pressure [psig]
653 psig
Medium temperature range [°C] [max]
135 °C
Medium temperature range [°C] [min]
-55 °C
Medium temperature range [°F] [max]
275 °F
Medium temperature range [°F] [min]
-70 °F
Mounting
Vertical +/- 45º
Oil free refrigerants
R134a,R513A
Packing format
Industrial pack
Pressure connection notes
Cu-tube (tip=3mm)
Pressure connection size
1/4 in
Pressure connection size [mm]
6.35 mm
Pressure connection type
Solder, ODM
Pressure range category
High pressure
Product accessories
Switches accessories
Product group
Switches and thermostats
Product Name Description
Cartridge pressure switch
Quantity per packing format
300 pc
REACH Candidate List substances
No
Refrigerants
R125,R134a,R22,R404A,R407C,R407H,R410A,R438A,R448A,R449A,R452A,R513A
Reset function
Auto
SCIP dossier product name
ACB/LCB, Cartridge pressure switch, solder connection
Serviceable
No
Specification key
ACB-2UA161
Type
ACB
UK RoHS compliance
Yes with exemptions
UK RoHS exemption clause
18
UL approved refrigerants
R125,R134a,R22,R404A,R407C,R407H,R410A,R438A,R448A,R449A,R452A,R513A
UL evaluated
Yes
Cartridge pressure switch, type ACB and CCB
Instruction ACB Cartridge Controls
Danfoss EU Saginomiya 04-11-2022 ACB
UL E31024
UL E227388
Danfoss MD Saginomiya 01-16
TÜV 01 202 641-B-19-0020 02
TÜV 01 202 931 Q-04 0018.00
Danfoss UK Saginomiya 2022-11-04 ACB

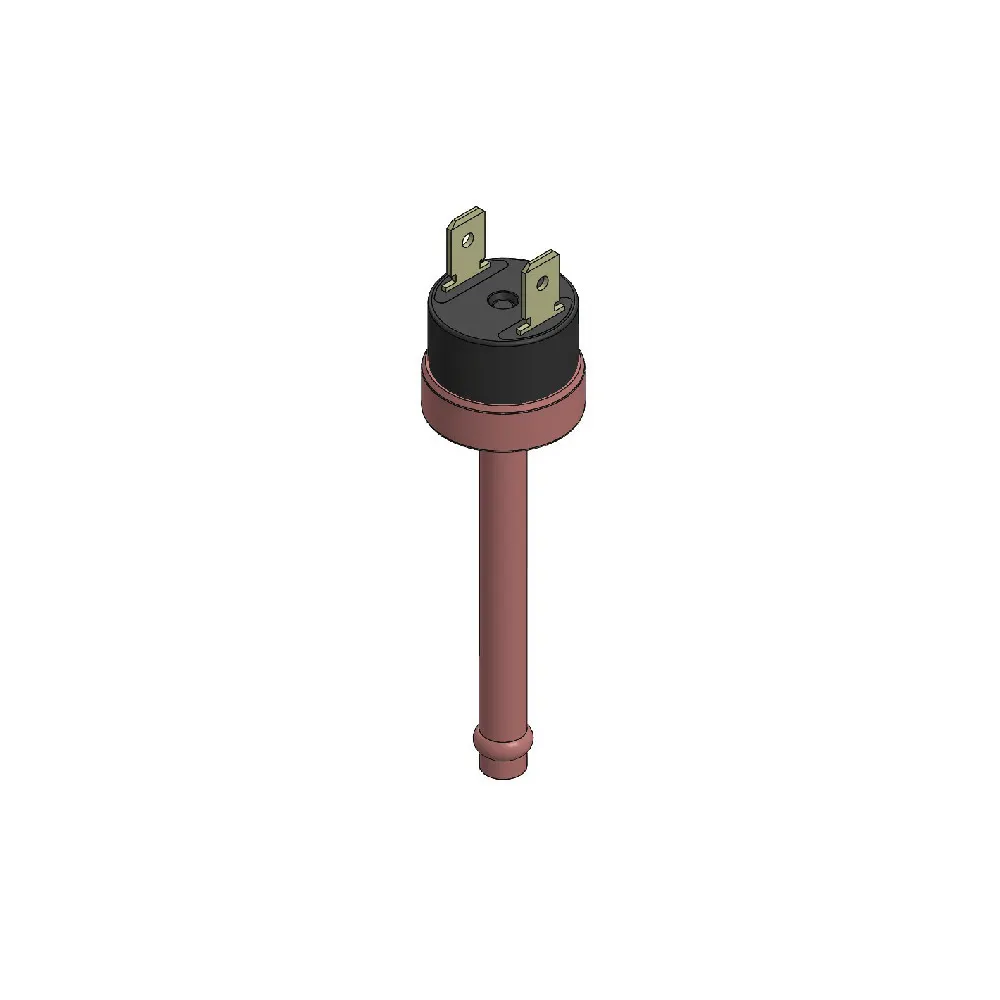

Cartridge pressure switch, ACB, Auto, Spade, Solder ODM
