061F9093
Part Number: 061F9093
Product Information
Extended Description

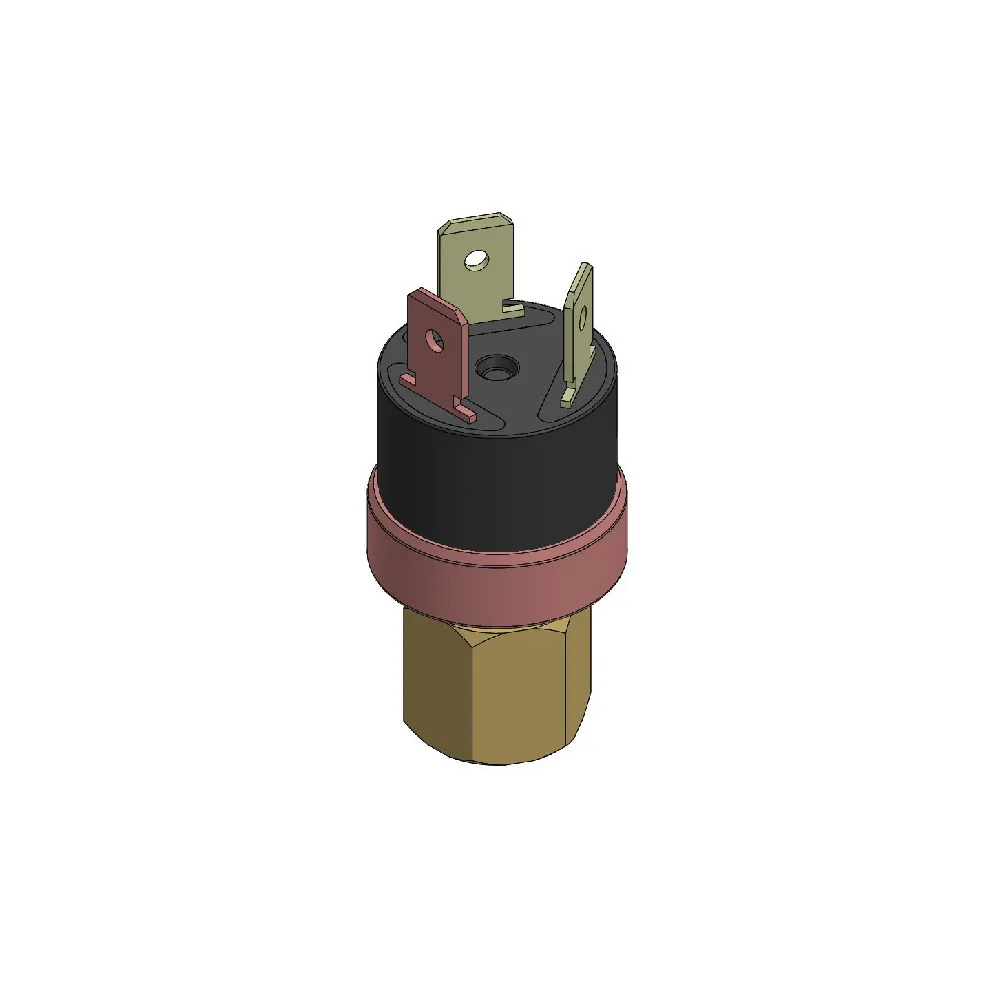

061F9093 Danfoss: Higher activ. pressure [bar]: 44.80, Lower activ. pressure [bar]: 34.50, Reset function: Auto, Contact function: SPDT, Pressure connection type: Flare, Pressure connection size: 1/4 in, Electrical connection: Spade connectors, Enclosure rating IP: IP40
Gross weight
0.033 Kilogram
Net weight
0.031 Kilogram
Volume
0.068 Liter
EAN
5702428259637
Ambient temperature range [°C] [max]
85 °C
Ambient temperature range [°C] [min]
-30 °C
Ambient temperature range [°F] [max]
185 °F
Ambient temperature range [°F] [min]
-20 °F
Approval
C UL US UL873,CE 0035,TÜV
Burst pressure [bar]
200 bar
Burst pressure [psig]
2900 psig
CE evaluated
Yes
China RoHS compliance
Yes exceed limitations
Contact function
SPDT
Contact rating
AC=4 A, 250 V
Contain batteries
No
Electrical connection
Spade connectors
Enclosure rating IP
IP40
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Higher activ. pressure [bar]
44.8 bar
Higher activ. pressure [psi]
650 psi
Housing
Regular
Lower activ. pressure [bar]
34.5 bar
Lower activ. pressure [psi]
500 psi
Lubricants compatibility
Oilfree applications
Max. Working Pressure [bar]
45 bar
Max. Working Pressure [psig]
653 psig
Medium temperature range [°C] [max]
135 °C
Medium temperature range [°C] [min]
-55 °C
Medium temperature range [°F] [max]
275 °F
Medium temperature range [°F] [min]
-70 °F
Mounting
Vertical +/- 45º
Oil free refrigerants
R134a,R513A
Packing format
Industrial pack
Pressure connection notes
Deflator
Pressure connection size
1/4 in
Pressure connection type
Flare
Pressure Male/Female
Female
Pressure range category
High pressure
Product accessories
Switches accessories
Product group
Switches and thermostats
Product Name Description
Cartridge pressure switch
Quantity per packing format
300 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerants
R125,R134a,R22,R404A,R407C,R407H,R410A,R438A,R448A,R449A,R452A,R513A
Reset function
Auto
SCIP dossier no.
3214dac9-e7f5-4553-abfe-56ba718eab3c
SCIP dossier product name
ACB/LCB, Cartridge pressure switch, flare connection
Serviceable
No
Specification key
ACB-2UC27
Type
ACB
UK RoHS compliance
Yes with exemptions
UK RoHS exemption clause
18
UL approved refrigerants
R125,R134a,R22,R404A,R407C,R407H,R410A,R438A,R448A,R449A,R452A,R513A
UL evaluated
Yes
