061F9106

Part Number: 061F9106
061F9106
Manufacturer
Danfoss
Part number
061F9106
Category

Product Information

Extended Description

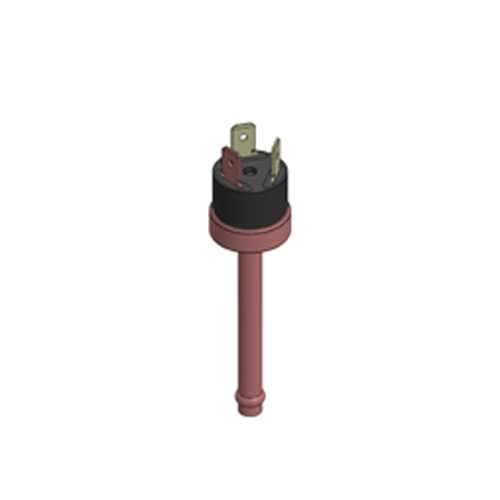

061F9106 Danfoss: Higher activ. pressure [bar]: 1.50, Lower activ. pressure [bar]: 0.50, Reset function: Auto, Contact function: SPDT, Pressure connection type: Solder, ODM, Pressure connection size: 1/4 in, Electrical connection: Spade connectors, Enclosure rating IP: IP40
Gross weight
0.038 Kilogram
Net weight
0.024 Kilogram
Volume
0.401 Liter
EAN
5702428509985
Ambient temperature range [°C] [max]
85 °C
Ambient temperature range [°C] [min]
-30 °C
Ambient temperature range [°F] [max]
185 °F
Ambient temperature range [°F] [min]
-20 °F
Approval
C UL US UL873,CE 0035,TÜV
Burst pressure [bar]
200 bar
Burst pressure [psig]
2900 psig
CE evaluated
Yes
China RoHS compliance
Yes exceed limitations
Contact function
SPDT
Contact rating
AC=4 A, 250 V
Contain batteries
No
Electrical connection
Spade connectors
Enclosure rating IP
IP40
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Higher activ. pressure [bar]
1.5 bar
Higher activ. pressure [psi]
22 psi
Housing
Regular
Lower activ. pressure [bar]
0.5 bar
Lower activ. pressure [psi]
7 psi
Lubricants compatibility
Oilfree applications
Max. Working Pressure [bar]
35 bar
Max. Working Pressure [psig]
508 psig
Medium temperature range [°C] [max]
135 °C
Medium temperature range [°C] [min]
-55 °C
Medium temperature range [°F] [max]
275 °F
Medium temperature range [°F] [min]
-70 °F
Mounting
Vertical +/- 45º
Oil free refrigerants
R134a,R513A
Packing format
Industrial pack
Pressure connection notes
Cu-tube (tip=3mm)
Pressure connection size
1/4 in
Pressure connection size [mm]
6.35 mm
Pressure connection type
Solder, ODM
Pressure range category
Low pressure
Product accessories
Switches accessories
Product group
Switches and thermostats
Product Name Description
Cartridge pressure switch
Quantity per packing format
50 pc
REACH Candidate List substances
No
Refrigerants
R125,R134a,R22,R404A,R407C,R407H,R410A,R438A,R448A,R449A,R452A,R513A
Reset function
Auto
SCIP dossier product name
ACB/LCB, Cartridge pressure switch, solder connection
Serviceable
No
Specification key
ACB-2UC106
Type
ACB
UK RoHS compliance
Yes with exemptions
UK RoHS exemption clause
18
UL approved refrigerants
R125,R134a,R22,R404A,R407C,R407H,R410A,R438A,R448A,R449A,R452A,R513A
UL evaluated
Yes
Danfoss solutions for Air Handling Units and Rooftops Cartridge pressure switch, type ACB and CCB Instruction ACB Cartridge Controls Danfoss EU Saginomiya 04-11-2022 ACB UL E31024 UL E227388 Danfoss MD Saginomiya 01-16 TÜV 01 202 641-B-19-0020 02 TÜV 01 202 931 Q-04 0018.00 Danfoss UK Saginomiya 2022-11-04 ACB SPD _AUTO_OPEN_P_ACB_061F9104, 061F9105, 061F9106 Cartridge pressure switch, ACB_061F9105 ACB_P
