061F9124
Part Number: 061F9124
Product Information
Extended Description
061F9124 Danfoss: Higher activ. pressure [bar]: 2.70, Lower activ. pressure [bar]: 1.70, Reset function: Auto, Contact function: SPDT, Pressure connection type: Flare, Pressure connection size: 1/4 in, Electrical connection: Cable, Enclosure rating IP: IP65
Gross weight
0.122 Kilogram
Net weight
0.116 Kilogram
Volume
0.459 Liter
EAN
5702428259545
Ambient temperature range [°C] [max]
85 °C
Ambient temperature range [°C] [min]
-30 °C
Ambient temperature range [°F] [max]
185 °F
Ambient temperature range [°F] [min]
-20 °F
Approval
C UL US UL873,CE 0035,TĂśV
Burst pressure [bar]
200 bar
Burst pressure [psig]
2900 psig
Cable length [in]
59.06 in
Cable length [m]
1.5 m
Cable type
AWG18
CE evaluated
Yes
China RoHS compliance
Yes exceed limitations
Contact function
SPDT
Contact rating
AC=4 A, 250 V
Contain batteries
No
Electrical connection
Cable
Enclosure rating IP
IP65
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Higher activ. pressure [bar]
2.7 bar
Higher activ. pressure [psi]
39 psi
Housing
Epoxy type
Lower activ. pressure [bar]
1.7 bar
Lower activ. pressure [psi]
25 psi
Lubricants compatibility
Oilfree applications
Max. Working Pressure [bar]
35 bar
Max. Working Pressure [psig]
508 psig
Medium temperature range [°C] [max]
135 °C
Medium temperature range [°C] [min]
-55 °C
Medium temperature range [°F] [max]
275 °F
Medium temperature range [°F] [min]
-70 °F
Mounting
Vertical +/- 45Âş
Oil free refrigerants
R134a,R513A
Packing format
Industrial pack
Pressure connection notes
Deflator
Pressure connection size
1/4 in
Pressure connection type
Flare
Pressure Male/Female
Female
Pressure range category
Low pressure
Product accessories
Switches accessories
Product group
Switches and thermostats
Product Name Description

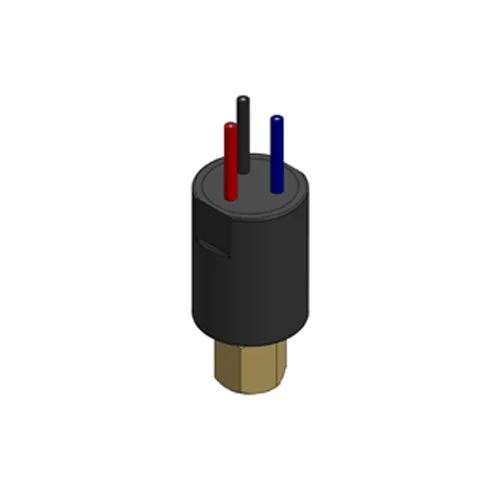

Cartridge pressure switch
Quantity per packing format
50 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerants
R125,R134a,R22,R404A,R407C,R407H,R410A,R438A,R448A,R449A,R452A,R513A
Reset function
Auto
SCIP dossier no.
3214dac9-e7f5-4553-abfe-56ba718eab3c
SCIP dossier product name
ACB/LCB, Cartridge pressure switch, flare connection
Serviceable
No
Specification key
ACB-2UC133W
Type
ACB
UK RoHS compliance
Yes with exemptions
UK RoHS exemption clause
18
UL approved refrigerants
R125,R134a,R22,R404A,R407C,R407H,R410A,R438A,R448A,R449A,R452A,R513A
UL evaluated
Yes
Wire colour
Black+blue+red
Cartridge pressure switch, type ACB and CCB
Instruction ACB Cartridge Controls
Danfoss EU Saginomiya 04-11-2022 ACB
UL E31024
UL E227388
Danfoss MD Saginomiya 01-16
TĂśV 01 202 641-B-19-0020 02
TĂśV 01 202 931 Q-04 0018.00
Danfoss UK Saginomiya 2022-11-04 ACB
SPD - AUTO - EPOXY -M_ACB_061F9124, 061F9125, 061F9126
