061F9730
Part Number: 061F9730
Product Information
Extended Description
061F9730 Danfoss: Higher activ. pressure [bar]: 42.00, Lower activ. pressure [bar]: 33.00, Reset function: Manual, Contact function: SPST(NC), Pressure connection type: Flare, Pressure connection size: 1/4 in, Electrical connection: Cable, Enclosure rating IP: IP65
Gross weight
0.14 Kilogram
Net weight
0.133 Kilogram
Volume
0.44 Liter
EAN
5702428509695
Ambient temperature range [°C] [max]
85 °C
Ambient temperature range [°C] [min]
-30 °C
Ambient temperature range [°F] [max]
185 °F
Ambient temperature range [°F] [min]
-20 °F
Approval
C UL US UL873,CE 0035,TĂśV
Burst pressure [bar]
200 bar
Burst pressure [psig]
2900 psig
Cable length [in]
118.11 in
Cable length [m]
3 m
Cable type
AWG18
CE evaluated
Yes
China RoHS compliance
Yes exceed limitations
Contact function
SPST(NC)
Contact rating
AC=6 A, 250 V
Contain batteries
No
Electrical connection
Cable
Enclosure rating IP
IP65
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Higher activ. pressure [bar]
42 bar
Higher activ. pressure [psi]
609 psi
Housing
Epoxy type
Lower activ. pressure [bar]
33 bar
Lower activ. pressure [psi]
479 psi
Lubricants compatibility
Oilfree applications
Max. Working Pressure [bar]
45 bar
Max. Working Pressure [psig]
653 psig
Medium temperature range [°C] [max]
135 °C
Medium temperature range [°C] [min]
-55 °C
Medium temperature range [°F] [max]
275 °F
Medium temperature range [°F] [min]
-70 °F
Mounting
Vertical +/- 45Âş
Oil free refrigerants
R513A,R134a
Packing format
Industrial pack
Pressure connection notes
Deflator
Pressure connection size
1/4 in
Pressure connection type
Flare
Pressure Male/Female
Female
Pressure range category
High pressure
Product accessories
Switches accessories
Product group
Switches and thermostats
Product Name Description

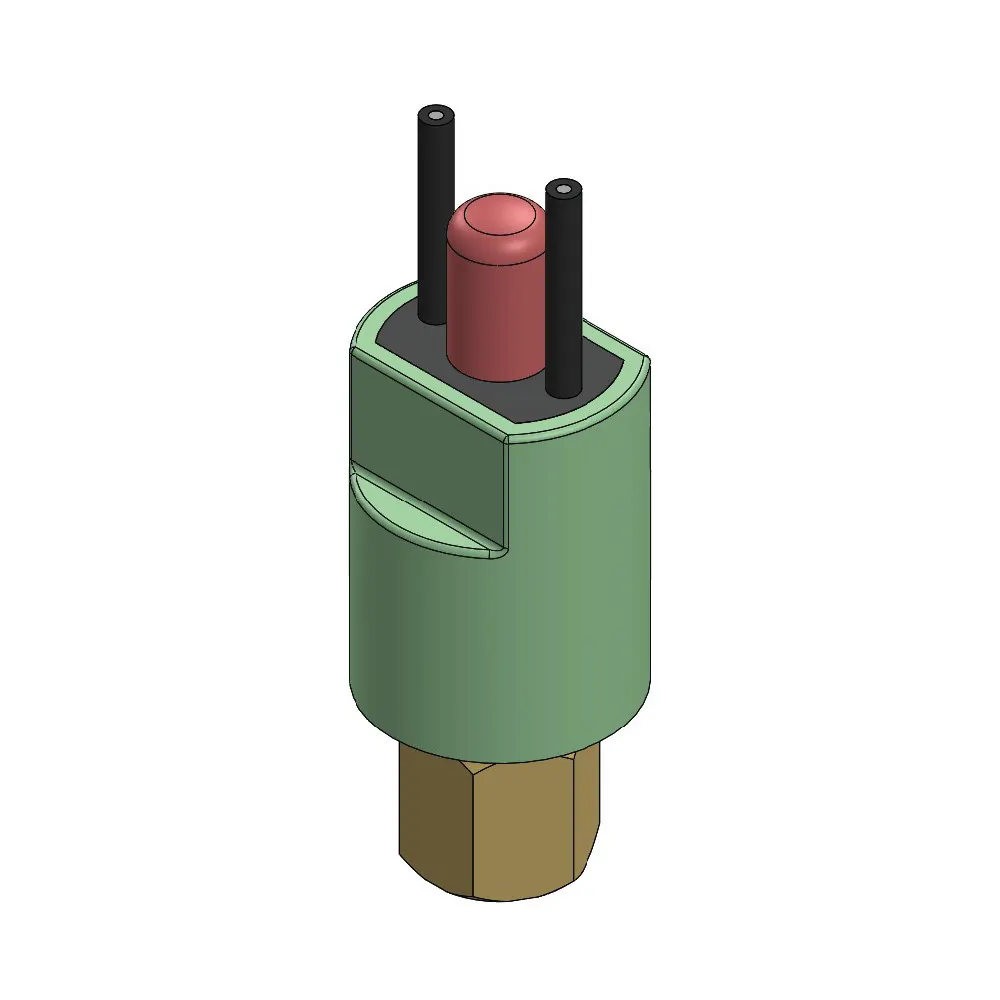

Cartridge pressure switch
Quantity per packing format
50 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerants
R134a,R22,R404A,R407C,R407H,R410A,R438A,R448A,R449A,R452A,R513A,R125
Reset function
Manual
SCIP dossier no.
3214dac9-e7f5-4553-abfe-56ba718eab3c
SCIP dossier product name
ACB/LCB, Cartridge pressure switch, flare connection
Serviceable
No
Specification key
ACB-2UB1122MW
Type
ACB
UK RoHS compliance
Yes with exemptions
UK RoHS exemption clause
18
UL approved refrigerants
R125,R134a,R22,R404A,R407C,R407H,R410A,R438A,R448A,R449A,R452A,R513A
UL evaluated
Yes
Wire colour
Black
