061F9809

Part Number: 061F9809
061F9809
Manufacturer
Danfoss
Part number
061F9809
Category

Product Information

Extended Description

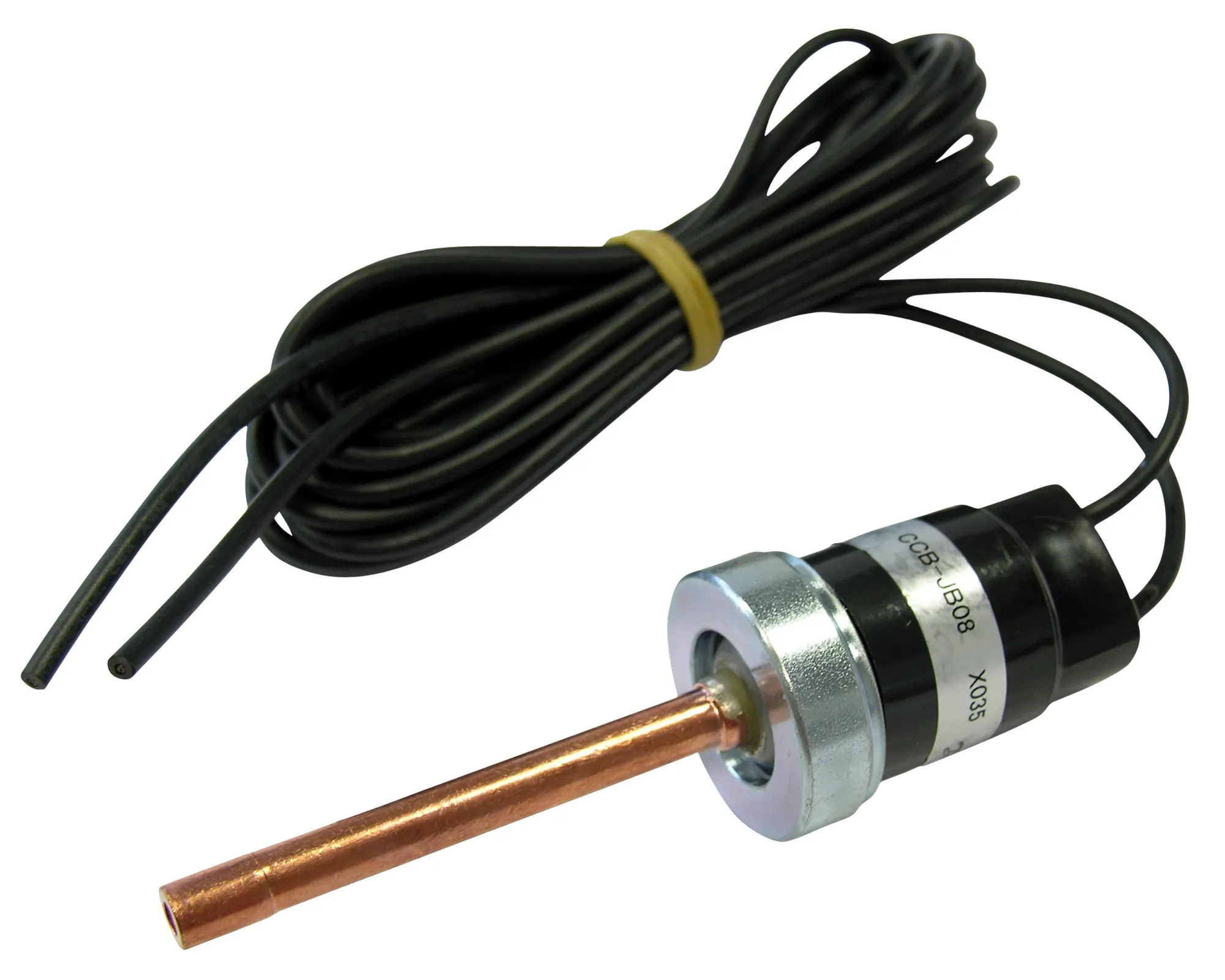

061F9809 Danfoss: Higher activ. pressure [bar]: 110.00, Lower activ. pressure [bar]: 80.00, Reset function: Auto, Contact function: SPST(NC), Pressure connection type: Solder, ODM, Electrical connection: Cable, Enclosure rating IP: IP65
Gross weight
0.139 Kilogram
Net weight
0.124 Kilogram
Volume
0.218 Liter
EAN
5702428258081
Ambient temperature range [°C] [max]
85 °C
Ambient temperature range [°C] [min]
-30 °C
Ambient temperature range [°F] [max]
185 °F
Ambient temperature range [°F] [min]
-20 °F
Approval
CE,TÜV
Burst pressure [bar]
375 bar
Burst pressure [psig]
5440 psig
Cable length [in]
59.06 in
Cable length [m]
1.5 m
Cable type
AWG18
CE evaluated
Yes
China RoHS compliance
Out of scope
Contact function
SPST(NC)
Contact rating
AC=6 A, 250 V
Contain batteries
No
Electrical connection
Cable
Enclosure rating IP
IP65
EU RoHS compliance
Out of scope
Higher activ. pressure [bar]
110 bar
Higher activ. pressure [psi]
1595 psi
Housing
Epoxy type
Lower activ. pressure [bar]
80 bar
Lower activ. pressure [psi]
1160 psi
Lubricants compatibility
Oilfree applications
Max. Working Pressure [bar]
165 bar
Max. Working Pressure [psig]
2393 psig
Medium temperature range [°C] [max]
100 °C
Medium temperature range [°C] [min]
-30 °C
Medium temperature range [°F] [max]
210 °F
Medium temperature range [°F] [min]
-20 °F
Mounting
Vertical +/- 45º
Oil free refrigerants
R134a,R513A
Packing format
Industrial pack
Pressure connection notes
Cu-tube (tip=7mm)
Pressure connection size [mm]
6.35 mm
Pressure connection type
Solder, ODM
Pressure range category
High pressure
Product accessories
Switches accessories
Product group
Switches and thermostats
Product Name Description
Cartridge pressure switch
Quantity per packing format
100 pc
REACH Candidate List substances
No
Refrigerants
R744
Reset function
Auto
Serviceable
No
Specification key
CCB-2UB04W
Type
CCB
UK RoHS compliance
Out of scope
Wire colour
Black
Cartridge pressure switch, type ACB and CCB LLC CDC EURO-TYSK UA.TR.089.1015.05-22 Danfoss UA 2023-01-10 Regulators PL01 PL04 LLC CDC EURO-TYSK UA.TR.089.1015.05-22 Danfoss UA 2023-01-10 Regulators PL01 PL04 LLC CDC EURO-TYSK UA.TR.089.1015.05-22 Danfoss UA 2023-01-10 Regulators PL01 PL04 LLC CDC EURO-TYSK UA.TR.089.1015.05-22 Danfoss UA 2023-01-10 Regulators PL01 PL04 LLC CDC EURO-TYSK UA.TR.089.1015.05-22 Danfoss UA 2023-01-10 Regulators PL01 PL04 Cartridge pressure switch, CCB_061F9803, 061F9806, 061F9808
