061F9811

Part Number: 061F9811
061F9811
Manufacturer
Danfoss
Part number
061F9811
Category

Product Information

Extended Description

061F9811 Danfoss: Higher activ. pressure [bar]: 130.00, Lower activ. pressure [bar]: 100.00, Reset function: Auto, Contact function: SPST(NC), Pressure connection type: Solder, ODM, Electrical connection: Cable, Enclosure rating IP: IP65
Gross weight
0.126 Kilogram
Net weight
0.104 Kilogram
Volume
0.221 Liter
EAN
5702428258067
Ambient temperature range [°C] [max]
85 °C
Ambient temperature range [°C] [min]
-30 °C
Ambient temperature range [°F] [max]
185 °F
Ambient temperature range [°F] [min]
-20 °F
Approval
CE,TĂśV
Burst pressure [bar]
375 bar
Burst pressure [psig]
5440 psig
Cable length [in]
59.06 in
Cable length [m]
1.5 m
Cable type
AWG18
CE evaluated
Yes
China RoHS compliance
Out of scope
Contact function
SPST(NC)
Contact rating
AC=6 A, 250 V
Contain batteries
No
Electrical connection
Cable
Enclosure rating IP
IP65
EU RoHS compliance
Out of scope
Higher activ. pressure [bar]
130 bar
Higher activ. pressure [psi]
1886 psi
Housing
Epoxy type
Lower activ. pressure [bar]
100 bar
Lower activ. pressure [psi]
1450 psi
Lubricants compatibility
Oilfree applications
Max. Working Pressure [bar]
165 bar
Max. Working Pressure [psig]
2393 psig
Medium temperature range [°C] [max]
100 °C
Medium temperature range [°C] [min]
-30 °C
Medium temperature range [°F] [max]
210 °F
Medium temperature range [°F] [min]
-20 °F
Mounting
Vertical +/- 45Âş
Oil free refrigerants
R134a,R513A
Packing format
Industrial pack
Pressure connection notes
Cu-tube (tip=7mm)
Pressure connection size [mm]
6.35 mm
Pressure connection type
Solder, ODM
Pressure range category
High pressure
Product accessories
Switches accessories
Product group
Switches and thermostats
Product Name Description

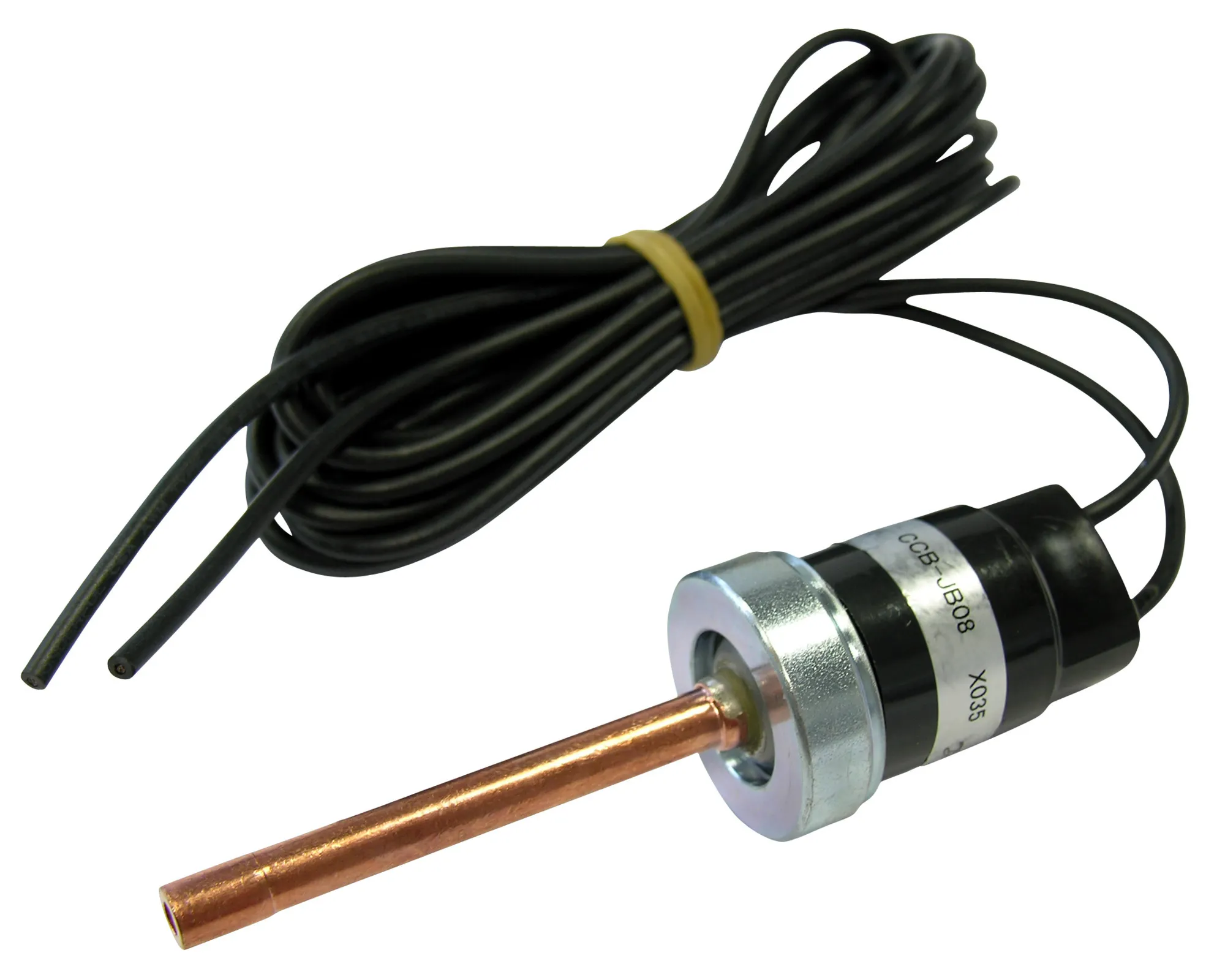

Cartridge pressure switch
Quantity per packing format
100 pc
Refrigerants
R744
Reset function
Auto
Serviceable
No
Specification key
CCB-2UB06W
Type
CCB
UK RoHS compliance
Out of scope
Wire colour
Black
Cartridge pressure switch, type ACB and CCB LLC CDC EURO-TYSK UA.TR.089.1015.05-22 Danfoss UA 2023-01-10 Regulators PL01 PL04 LLC CDC EURO-TYSK UA.TR.089.1015.05-22 Danfoss UA 2023-01-10 Regulators PL01 PL04 LLC CDC EURO-TYSK UA.TR.089.1015.05-22 Danfoss UA 2023-01-10 Regulators PL01 PL04 LLC CDC EURO-TYSK UA.TR.089.1015.05-22 Danfoss UA 2023-01-10 Regulators PL01 PL04 LLC CDC EURO-TYSK UA.TR.089.1015.05-22 Danfoss UA 2023-01-10 Regulators PL01 PL04 Cartridge pressure switch, CCB_061F9803, 061F9806, 061F9808
