061G1087
Part Number: 061G1087
Product Information
Extended Description
061G1087 Danfoss: Contact function: SPDT, Reset function: Manual, Pressure connection type: Solder, ODM, Pressure connection size: 7 mm, Max. Working Pressure [bar]: 30.0
Gross weight
0.124 Kilogram
Net weight
0.052 Kilogram
Volume
0.445 Liter
EAN
5702428531528
Ambient temperature range [°C] [max]
70 °C
Ambient temperature range [°C] [min]
-20 °C
Approval
CE,PED
Capillary tube length [mm]
1000 mm
CE evaluated
Yes
Contact function
SPDT
Contact rating
AC125V/AC250V,FLA 0,5-1,5A
Contain batteries
No
Electrical conn. comments
3 x Faston terminal 250
Electrical connection
Spade connectors
Max. test pressure [bar] Pe
43 bar
Max. Working Pressure [bar]
30 bar
Max. Working Pressure [psig]
435 psig
Mounting options
2 x M4 x 0.7
Packing format
Industrial pack
Pressure connection size
7 mm
Pressure connection type
Solder, ODM
Pressure range category
High pressure
Pressure setting OFF [psig]
430 psig
Pressure setting ON [psig]
357.5 psig
Product accessories
No
Product group
Switches and thermostats
Product Name Description

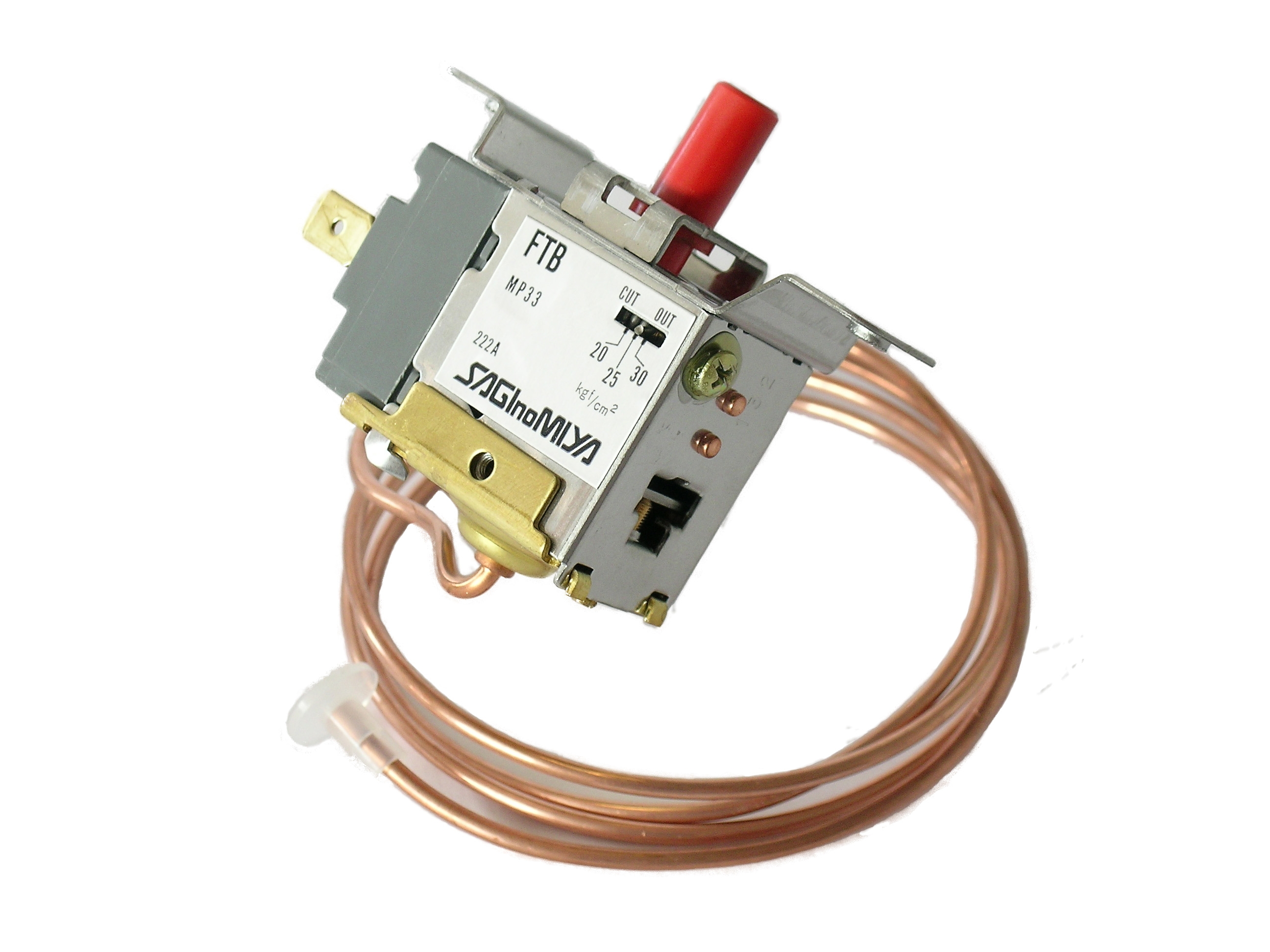

Compact pressure switch
Quantity per packing format
100 pc
REACH Candidate List substances
No
Refrigerants
R1234yf,R1234ze(E),R134a,R32,R404A,R407A,R407C,R407F,R410A,R448A,R449A,R450A,R452A,R452B,R454A,R454B,R454C,R455A,R507A,R513A
Reset function
Manual
Serviceable
No
Specification key
FTB-X389
Type
FTB
