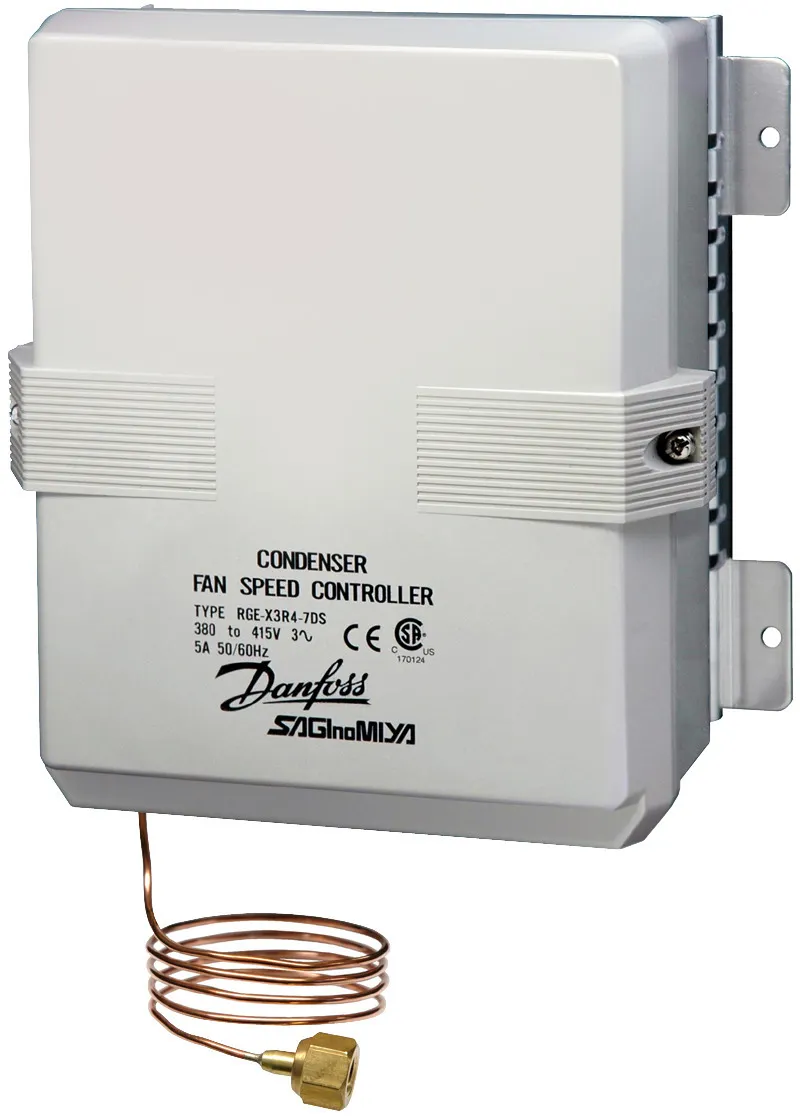

061H3050

Part Number: 061H3050
061H3050
Manufacturer
Danfoss
Part number
061H3050
Category

Product Information

Extended Description

061H3050 Danfoss: Factory setting [bar]: 16.00, Number of Phases: 3, P band max. [bar]: 4.0, Regulation range [bar] Pe [max]: 28.00, Regulation range [bar] Pe [min]: 8.00, Type designation: RGE-Z3T4-7DS
Gross weight
1.651 Kilogram
Net weight
1.53 Kilogram
Volume
4.64 Liter
EAN
5702428275699
Ambient temperature range [°C] [max]
50 °C
Ambient temperature range [°C] [min]
-20 °C
Ambient temperature range [°F] [max]
122 °F
Ambient temperature range [°F] [min]
-4 °F
Approval
CE,UKCA
Burst pressure [bar]
131 bar
Burst pressure [psig]
1900 psig
Capillary tube length [in]
35.4 in
Capillary tube length [mm]
900 mm
CE evaluated
Yes
China RoHS compliance
Out of scope
Contain batteries
No
Enclosure rating IP
IP54
EU RoHS compliance
Out of scope
Factory setting [bar]
16 bar
Factory setting [psig]
232 psig
Frequency [Hz]
50/60 Hz
Housing
Closed
Max. current output/phase [A]
7 A
Max. Working Pressure [bar]
47 bar
Max. Working Pressure [psig]
681 psig
Min speed setting [%]
35%@50Hz,35%@60Hz
Number of Phases
3
Number of terminals [pcs]
8 pc
P band max. [bar]
4 bar
P band max. [psi]
58 psi
Packing format
Multi pack
Pressure connection notes
with Schrader
Pressure inlet conn. size [in]
1/4
Pressure inlet conn. std.
DIN 8906
Pressure inlet conn. type
Flare
Pressure inlet Internal/Extern
Internal
Product accessories
No
Product group
Electronic controllers
Product Name Description
Fan speed controller
Quantity per packing format
6 pc
REACH Candidate List substances
No
Refrigerants
R134a,R22,R404A,R407C,R407H,R449B,R450A,R513A
Regulation range [bar] Pe [max]
28 bar
Regulation range [bar] Pe [min]
8 bar
Regulation range [MPa] Pe [max]
2.8 MPa
Regulation range [MPa] Pe [min]
0.8 MPa
Regulation range [psig] Pe [max]
406 psig
Regulation range [psig] Pe [min]
116 psig
Serviceable
No
Supply voltage [V] AC [max]
240 V
Supply voltage [V] AC [min]
200 V
Type
RGE
Type designation
RGE-Z3T4-7DS
UK RoHS compliance
Out of scope
