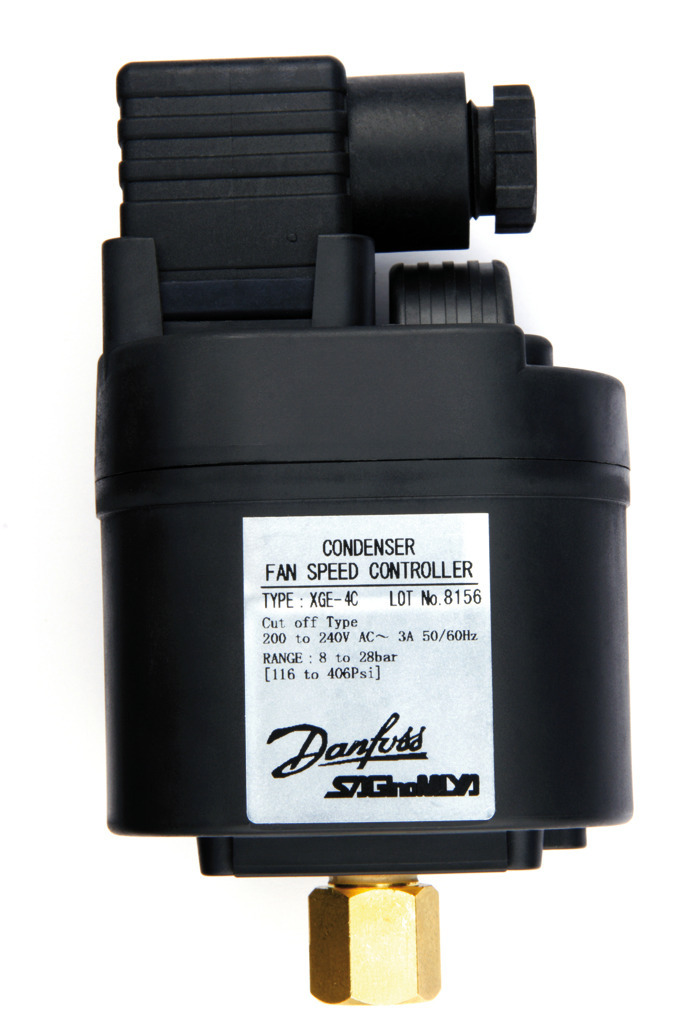

061H3242

Part Number: 061H3242
061H3242
Manufacturer
Danfoss
Part number
061H3242
Category

Product Information

Extended Description

061H3242 Danfoss: Factory setting [bar]: 19.00, Number of Phases: 1, P band max. [bar]: 6.0, Regulation range [bar] Pe [min]: 10.00, Regulation range [bar] Pe [max]: 25.00, Type designation: XGE-4MB
Gross weight
0.266 Kilogram
Net weight
0.253 Kilogram
Volume
0.735 Liter
EAN
5702428275477
Ambient temperature range [°C] [max]
55 °C
Ambient temperature range [°C] [min]
-20 °C
Ambient temperature range [°F] [max]
131 °F
Ambient temperature range [°F] [min]
-4 °F
Approval
CE,UKCA
Burst pressure [bar]
131 bar
Burst pressure [psig]
1900 psig
CE evaluated
Yes
China RoHS compliance
Out of scope
Contain batteries
No
Enclosure rating IP
IP65
EU RoHS compliance
Out of scope
Factory setting [bar]
19 bar
Factory setting [psig]
276 psig
Frequency [Hz]
50/60 Hz
Housing
Closed
Max. current output/phase [A]
3 A
Max. Working Pressure [bar]
47 bar
Max. Working Pressure [psig]
681 psig
Min speed setting [%]
35%@60Hz,45%@50Hz
Number of Phases
1
P band max. [bar]
6 bar
P band max. [psi]
87 psi
Packing format
Multi pack
Parts included
Plug
Pressure inlet conn. size [in]
1/4
Pressure inlet conn. std.
DIN 8906
Pressure inlet conn. type
Flare
Pressure inlet Internal/Extern
External
Product accessories
Electron. control accessories
Product group
Electronic controllers
Product Name Description
Fan speed controller
Quantity per packing format
50 pc
REACH Candidate List substances
No
Refrigerants
R134a,R22,R404A,R407C,R407F,R407H,R448A,R449A,R449B,R450A,R452A,R513A
Regulation range [bar] Pe [max]
25 bar
Regulation range [bar] Pe [min]
10 bar
Regulation range [MPa] Pe [max]
2.5 MPa
Regulation range [MPa] Pe [min]
1 MPa
Regulation range [psig] Pe [max]
363 psig
Regulation range [psig] Pe [min]
145 psig
Serviceable
No
Supply voltage [V] AC [max]
240 V
Supply voltage [V] AC [min]
200 V
Type
XGE
Type designation
XGE-4MB
UK RoHS compliance
Out of scope
