061H3260

Part Number: 061H3260
061H3260
Manufacturer
Danfoss
Part number
061H3260
Category

Product Information

Extended Description

061H3260 Danfoss: Factory setting [bar]: 28.00, Number of Phases: 1, P band max. [bar]: 7.0, Regulation range [bar] Pe [min]: 22.00, Regulation range [bar] Pe [max]: 39.00, Type designation: XGE-6M
Gross weight
0.272 Kilogram
Net weight
0.19 Kilogram
Volume
0.746 Liter
EAN
5702428275446
Ambient temperature range [°C] [max]
55 °C
Ambient temperature range [°C] [min]
-20 °C
Ambient temperature range [°F] [max]
131 °F
Ambient temperature range [°F] [min]
-4 °F
Approval
CE,UKCA
Burst pressure [bar]
131 bar
Burst pressure [psig]
1900 psig
CE evaluated
Yes
China RoHS compliance
Out of scope
Contain batteries
No
Enclosure rating IP
IP65
EU RoHS compliance
Out of scope
Factory setting [bar]
28 bar
Factory setting [psig]
406 psig
Frequency [Hz]
50/60 Hz
Housing
Closed
Max. current output/phase [A]
3 A
Max. Working Pressure [bar]
47 bar
Max. Working Pressure [psig]
681 psig
Min speed setting [%]
35%@60Hz,45%@50Hz
Number of Phases
1
P band max. [bar]
7 bar
P band max. [psi]
101 psi
Packing format
Multi pack
Parts included
Plug
Pressure connection notes
with Schrader
Pressure inlet conn. size [in]
1/4
Pressure inlet conn. std.
DIN 8906
Pressure inlet conn. type
Flare
Pressure inlet Internal/Extern
Internal
Product accessories
Electron. control accessories
Product group
Electronic controllers
Product Name Description
Fan speed controller
Quantity per packing format
50 pc
REACH Candidate List substances
No
Refrigerants
R407H,R410A,R449B,R450A,R513A
Regulation range [bar] Pe [max]
39 bar
Regulation range [bar] Pe [min]
22 bar
Regulation range [MPa] Pe [max]
3.9 MPa
Regulation range [MPa] Pe [min]
2.2 MPa
Regulation range [psig] Pe [max]
566 psig
Regulation range [psig] Pe [min]
319 psig
Serviceable
No
Supply voltage [V] AC [max]
240 V
Supply voltage [V] AC [min]
200 V
Type
XGE
Type designation
XGE-6M
UK RoHS compliance
Out of scope

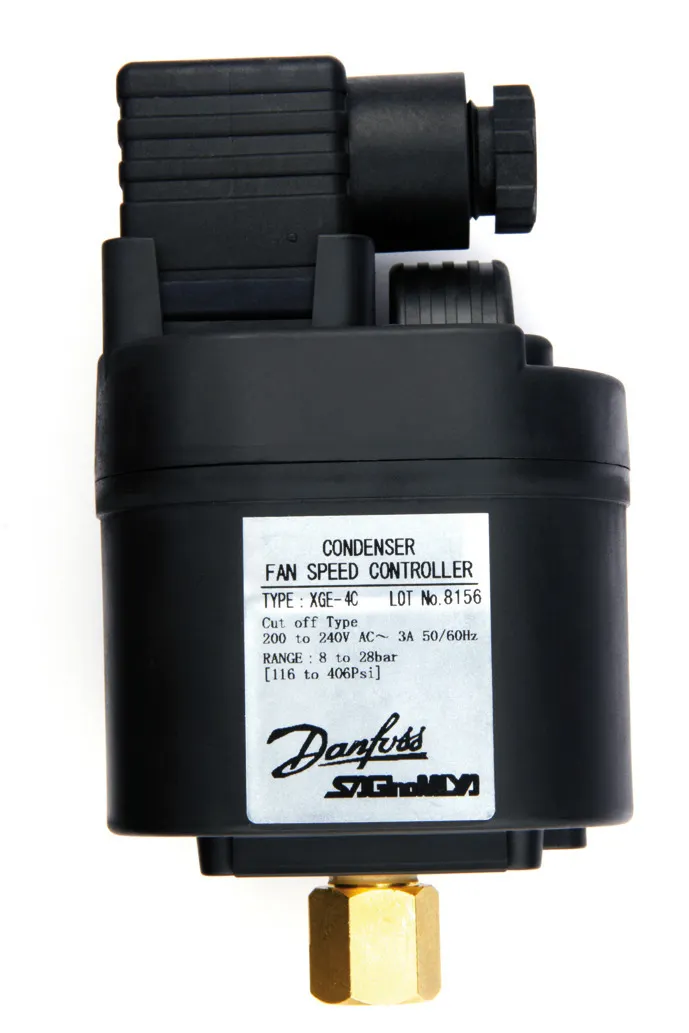

Fan speed controller type XGE XGE fan speed controller Saginomiya Danfoss UA 2024-07-25 cooling sensors Danfoss UA 9032 Danfoss UA 2024-07-25 cooling sensors Danfoss UA 9032 Danfoss UA 2024-07-25 cooling sensors Danfoss UA 9032 Danfoss UA 2024-07-25 cooling sensors Danfoss UA 9032 Danfoss UA 2024-07-25 cooling sensors Danfoss UA 9032 XGE fan speed controller XGE Danfoss Saginomiya fan speed controller, with bracket XGE fan speed controller, no background
