061L1206

Part Number: 061L1206
061L1206
Manufacturer
Danfoss
Part number
061L1206
Category

Product Information

Extended Description

061L1206 Danfoss: Medium temperature range [°C]: -20 - 120, MaxOPD [bar]: 31.0, MinODP [bar]: 3.000, Suction conn size [in]: 3/8, Discharge conn size [in]: 5/16, Design config. Style: A
Gross weight
0.401 Kilogram
Net weight
0.25 Kilogram
Volume
3.726 Liter
EAN
5702428273596
Ambient temperature range [°C] [max]
55 °C
Ambient temperature range [°C] [min]
-20 °C
Ambient temperature range [°F] [max]
131 °F
Ambient temperature range [°F] [min]
-4 °F
Approval
CE,UKCA,VDE
Cap condition 1 [°C]
0°C sub-cooling,38°C condensing,5°C evaporating,5°C super-heat
Cap condition 2 [°C]
54,4 °C condensing,5°C sub-cooling,5°C super-heat,7,2°C evaporating
Cap R407C@Δp:0.1bar(cond1)[kW]
3.76 kW
Cap R407C@Δp:0.1bar(cond2)[kW]
3.48 kW
Cap R407C@Δp:0.2bar(cond1)[kW]
5.3 kW
Cap R407C@Δp:0.2bar(cond2)[kW]
4.9 kW
Cap R410A@Δp:0.1bar(cond1)[kW]
4.61 kW
Cap R410A@Δp:0.1bar(cond2)[kW]
4.16 kW
Cap R410A@Δp:0.2bar(cond1)[kW]
6.5 kW
Cap R410A@Δp:0.2bar(cond2)[kW]
5.87 kW
CE evaluated
Yes
China RoHS compliance
Out of scope
Coil
No
Contain batteries
No
Design config. Style
A
Discharge conn size [in]
5/16
Discharge conn size [mm]
8.1 mm
Discharge conn type
FEMALE
EU RoHS compliance
Out of scope
Evap/cond conn size [in]
3/8
Evap/cond conn size [mm]
9,7
Max. Leakage [cmÂł/min]
1000 cmÂł/min
MaxOPD [bar]
31 bar
MaxOPD [psig]
450 psig
Medium temperature range [°C] [max]
120 °C
Medium temperature range [°C] [min]
-20 °C
Medium temperature range [°F] [max]
248 °F
Medium temperature range [°F] [min]
-4 °F
MinODP [bar]
3 bar
MinODP [psi]
44 psi
Packing format
Industrial pack
Process connection material
Copper
Product group
4-way reversing valves
Product Name Description

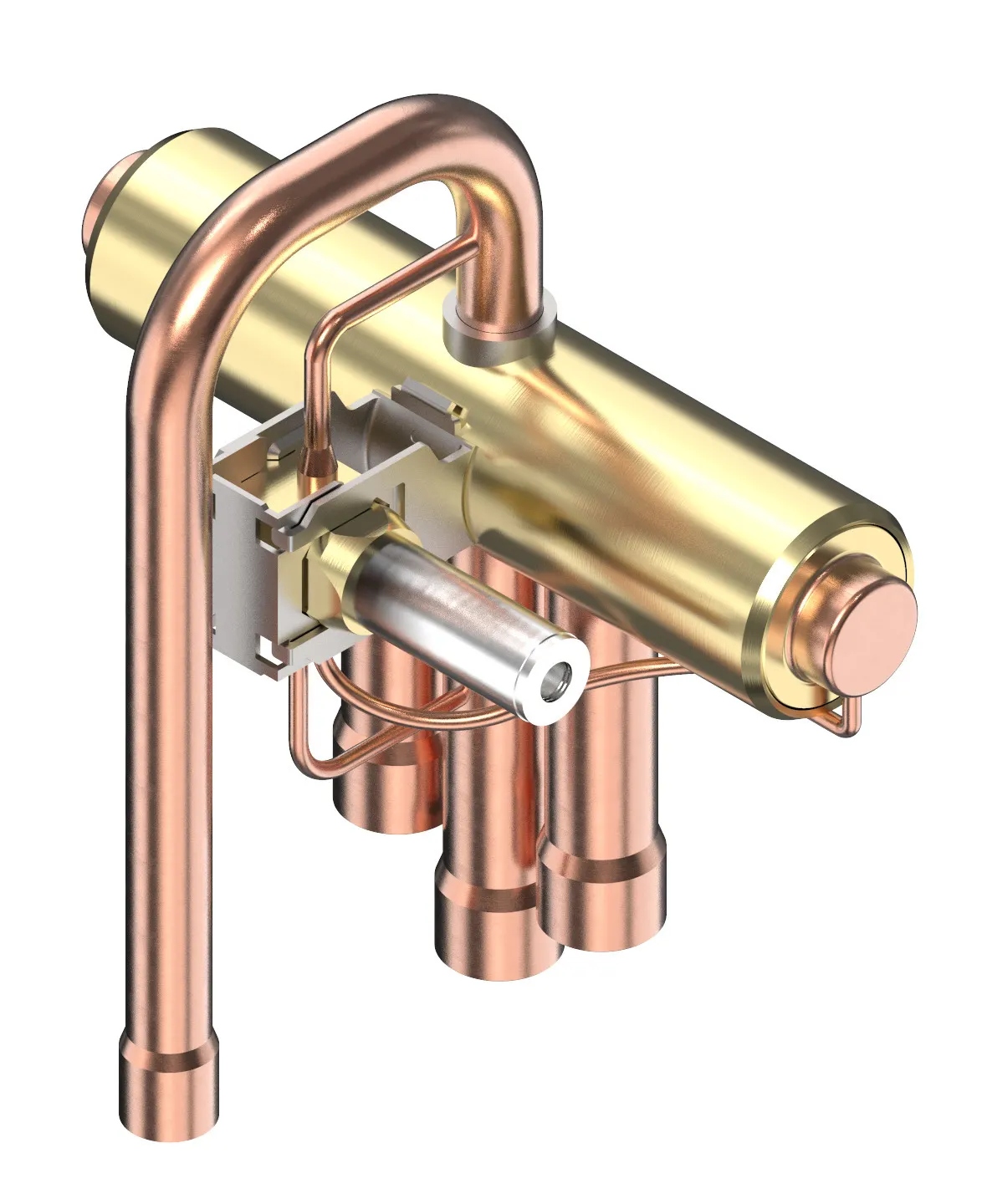

4-way reversing valve
Quantity per packing format
4 pc
REACH Candidate List substances
No
Refrigerants
R134a,R22,R404A,R407C,R410A
Shock resistance standard
JIS C 60068-2-27
Suction conn size [in]
3/8
Suction conn size [mm]
9.7 mm
Type
STF
Type designation
STF-0101G3
UK RoHS compliance
Out of scope
Vibration stability [m/s²]
19.6 m/s²
Vibration test standard
JIS C 60068-2-6
