061L1209
Part Number: 061L1209
Product Information
Extended Description

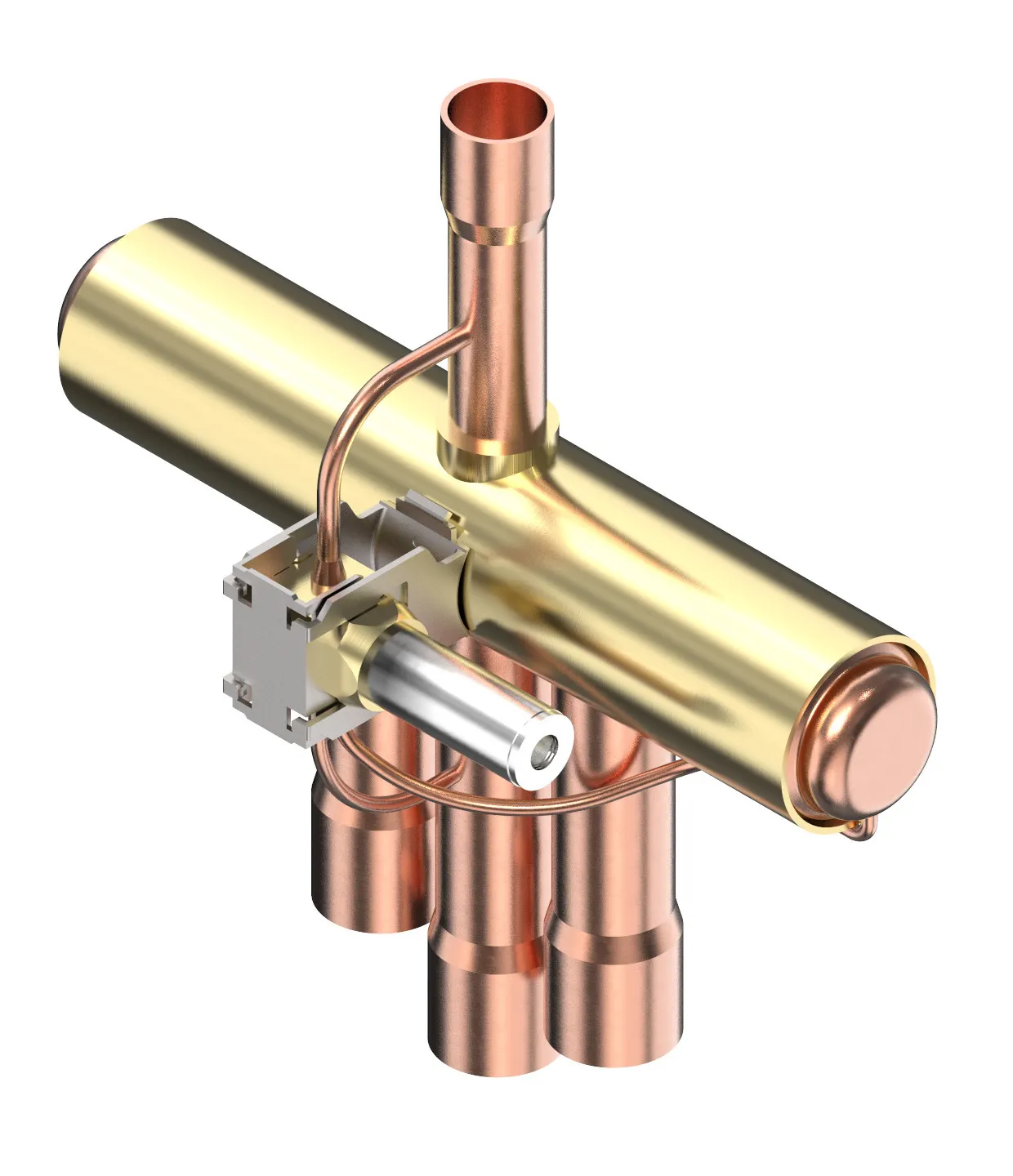

061L1209 Danfoss: Medium temperature range [°C]: -20 - 120, MaxOPD [bar]: 31.0, MinODP [bar]: 3.000, Suction conn size [in]: 3/4, Discharge conn size [in]: 1/2, Design config. Style: B
Gross weight
1.171 Kilogram
Net weight
0.78 Kilogram
Volume
7.61 Liter
EAN
5702428273565
Ambient temperature range [°C] [max]
55 °C
Ambient temperature range [°C] [min]
-20 °C
Ambient temperature range [°F] [max]
131 °F
Ambient temperature range [°F] [min]
-4 °F
Approval
CE,UKCA,VDE
Cap condition 1 [°C]
0°C sub-cooling,38°C condensing,5°C evaporating,5°C super-heat
Cap condition 2 [°C]
54,4 °C condensing,5°C sub-cooling,5°C super-heat,7,2°C evaporating
Cap R407C@Δp:0.1bar(cond1)[kW]
15.91 kW
Cap R407C@Δp:0.1bar(cond2)[kW]
14.7 kW
Cap R407C@Δp:0.2bar(cond1)[kW]
22.4 kW
Cap R407C@Δp:0.2bar(cond2)[kW]
20.7 kW
Cap R410A@Δp:0.1bar(cond1)[kW]
19.5 kW
Cap R410A@Δp:0.1bar(cond2)[kW]
17.58 kW
Cap R410A@Δp:0.2bar(cond1)[kW]
27.51 kW
Cap R410A@Δp:0.2bar(cond2)[kW]
24.8 kW
CE evaluated
Yes
China RoHS compliance
Out of scope
Coil
No
Contain batteries
No
Design config. Style
B
Discharge conn size [in]
1/2
Discharge conn size [mm]
12.8 mm
Discharge conn type
FEMALE
EU RoHS compliance
Out of scope
Evap/cond conn size [in]
3/4
Evap/cond conn size [mm]
19,15
Max. Leakage [cmÂł/min]
4000 cmÂł/min
MaxOPD [bar]
31 bar
MaxOPD [psig]
450 psig
Medium temperature range [°C] [max]
120 °C
Medium temperature range [°C] [min]
-20 °C
Medium temperature range [°F] [max]
248 °F
Medium temperature range [°F] [min]
-4 °F
MinODP [bar]
3 bar
MinODP [psi]
44 psi
Packing format
Industrial pack
Process connection material
Copper
Product group
4-way reversing valves
Product Name Description
4-way reversing valve
Quantity per packing format
2 pc
REACH Candidate List substances
No
Refrigerants
R134a,R22,R404A,R407C,R410A
Shock resistance standard
JIS C 60068-2-27
Suction conn size [in]
3/4
Suction conn size [mm]
19.15 mm
Type
STF
Type designation
STF-0401G3
UK RoHS compliance
Out of scope
Vibration stability [m/s²]
19.6 m/s²
Vibration test standard
JIS C 60068-2-6
