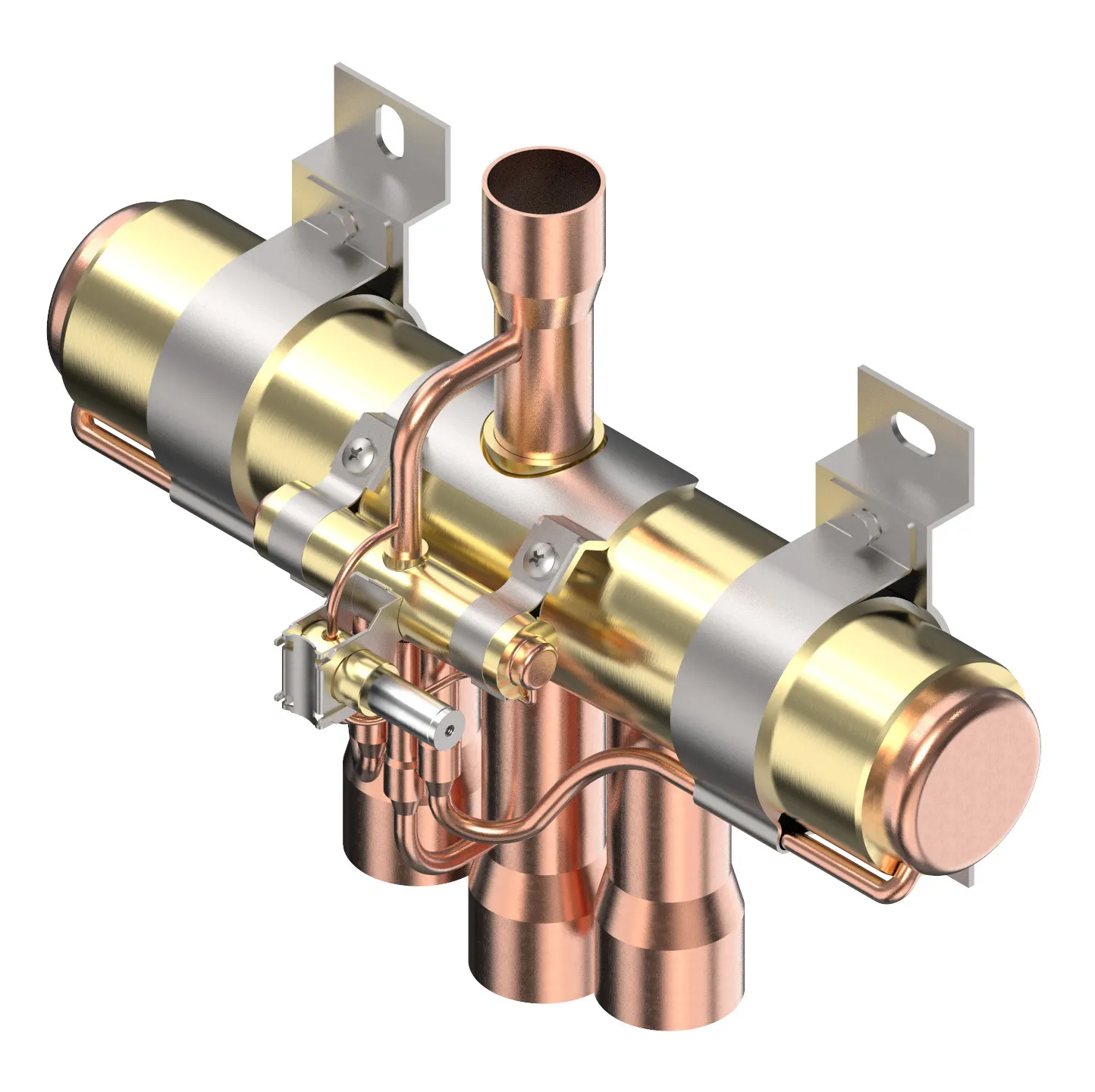

061L1321
Part Number: 061L1321
Product Information
Extended Description
061L1321 Danfoss: Medium temperature range [°C]: -20 - 130, MaxOPD [bar]: 31.0, MinODP [bar]: 3.000, Suction conn size [in]: 1 5/8, Discharge conn size [in]: 1 1/8, Design config. Style: G
Gross weight
5.845 Kilogram
Net weight
1.32 Kilogram
Volume
35.517 Liter
EAN
5702428531702
Ambient temperature range [°C] [max]
55 °C
Ambient temperature range [°C] [min]
-30 °C
Ambient temperature range [°F] [max]
131 °F
Ambient temperature range [°F] [min]
-22 °F
Approval
CE,VDE
Cap condition 1 [°C]
0°C sub-cooling,38°C condensing,5°C evaporating,5°C super-heat
Cap condition 2 [°C]
54,4 °C condensing,5°C sub-cooling,5°C super-heat,7,2°C evaporating
Cap R407C@Δp:0.1bar(cond1)[kW]
82.13 kW
Cap R407C@Δp:0.1bar(cond2)[kW]
75.87 kW
Cap R407C@Δp:0.2bar(cond1)[kW]
115.61 kW
Cap R407C@Δp:0.2bar(cond2)[kW]
106.83 kW
Cap R410A@Δp:0.1bar(cond1)[kW]
100.66 kW
Cap R410A@Δp:0.1bar(cond2)[kW]
90.71 kW
Cap R410A@Δp:0.2bar(cond1)[kW]
141.98 kW
Cap R410A@Δp:0.2bar(cond2)[kW]
127.96 kW
CE evaluated
Yes
China RoHS compliance
Out of scope
Coil
No
Contain batteries
No
Design config. Style
G
Discharge conn size [in]
1 1/8
Discharge conn size [mm]
28.5 mm
Discharge conn type
MALE
EU RoHS compliance
Out of scope
Evap/cond conn size [in]
1 5/8
Evap/cond conn size [mm]
41,7
Max. Leakage [cmÂł/min]
10000 cmÂł/min
MaxOPD [bar]
31 bar
MaxOPD [psig]
450 psig
Medium temperature range [°C] [max]
130 °C
Medium temperature range [°C] [min]
-20 °C
Medium temperature range [°F] [max]
266 °F
Medium temperature range [°F] [min]
-4 °F
MinODP [bar]
3 bar
MinODP [psi]
44 psi
Packing format
Single pack
Process connection material
Copper
Product group
4-way reversing valves
Product Name Description
4-way reversing valve
Quantity per packing format
1 pc
REACH Candidate List substances
No
Refrigerants
R134a,R22,R404A,R407C,R410A
Shock resistance standard
JIS C 60068-2-27
Suction conn size [in]
1 5/8
Suction conn size [mm]
41.7 mm
Type
STF
Type designation
STF-3007G3
UK RoHS compliance
Out of scope
Vibration stability [m/s²]
19.6 m/s²
Vibration test standard
JIS C 60068-2-6
