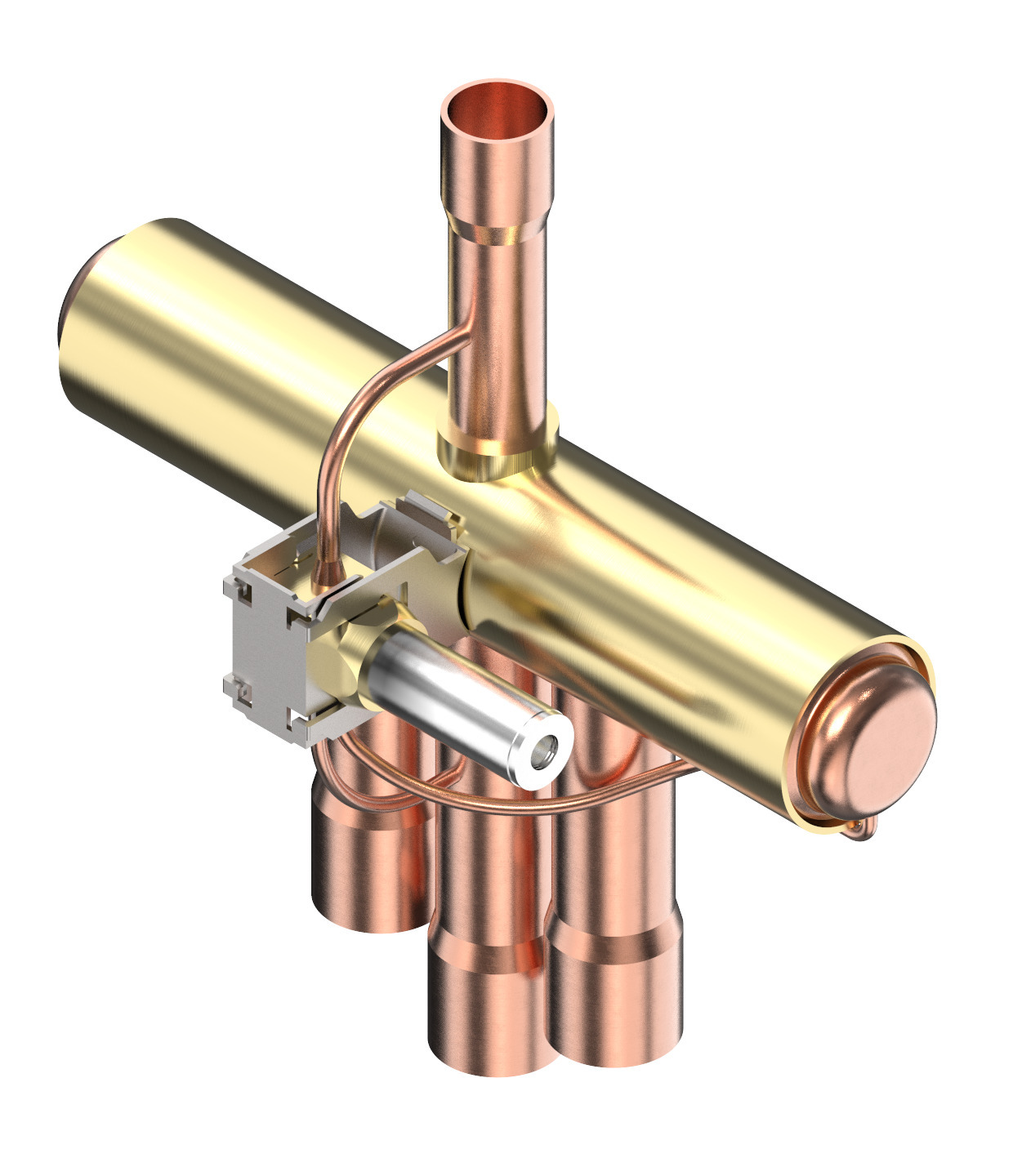

061L1325

Part Number: 061L1325
061L1325
Manufacturer
Danfoss
Part number
061L1325
Category

Product Information

Extended Description

061L1325 Danfoss: Medium temperature range [°C]: -20 - 140, MinODP [bar]: 1.700, Suction conn size [in]: 3/4, Discharge conn size [in]: 1/2, Design config. Style: B
Gross weight
0.856 Kilogram
Net weight
0.843 Kilogram
Volume
2.598 Liter
EAN
5702428531740
Ambient temperature range [°C] [max]
55 °C
Ambient temperature range [°C] [min]
-20 °C
Ambient temperature range [°F] [max]
131 °F
Ambient temperature range [°F] [min]
-4 °F
Approval
CE,UKCA,VDE
Cap condition 1 [°C]
0°C sub-cooling,38°C condensing,5°C evaporating,5°C super-heat
Cap condition 2 [°C]
54,4 °C condensing,5°C sub-cooling,5°C super-heat,7,2°C evaporating
CE evaluated
Yes
China RoHS compliance
Out of scope
Coil
No
Contain batteries
No
Design config. Style
B
Discharge conn size [in]
1/2
Discharge conn size [mm]
12.8 mm
Discharge conn type
FEMALE
EU RoHS compliance
Out of scope
Evap/cond conn size [in]
3/4
Evap/cond conn size [mm]
19,15
Max. Leakage [cmÂł/min]
4000 cmÂł/min
Medium temperature range [°C] [max]
140 °C
Medium temperature range [°C] [min]
-20 °C
Medium temperature range [°F] [max]
284 °F
Medium temperature range [°F] [min]
-4 °F
MinODP [bar]
1.7 bar
MinODP [psi]
24 psi
Packing format
Industrial pack
Process connection material
Copper
Product group
4-way reversing valves
Product Name Description
4-way reversing valve
Quantity per packing format
24 pc
REACH Candidate List substances
No
Refrigerants
R134a,R22,R404A,R407C,R410A
Shock resistance standard
JIS C 60068-2-27
Suction conn size [in]
3/4
Suction conn size [mm]
19.15 mm
Type
STF
Type designation
STF-0441G2
UK RoHS compliance
Out of scope
Vibration stability [m/s²]
19.6 m/s²
Vibration test standard
JIS C 60068-2-6
061L2092
4-way reversing valve coil, STF-01AB500A1
061L2016
4-way reversing valve coil, STF-01AJ504F1
061L2038
4-way reversing valve coil, STF-01AB503B1
4-Way Reversing valves Type STF and STF-H New perspectives with Danfoss Saginomiya 4 - Way Reversing Valves 4-way reversing valve coil, type STF G SAGINOMIYA EU CE-PL-0090 4-way reversing valve, STF-H0351 VHV/STF-A 4-way valve
