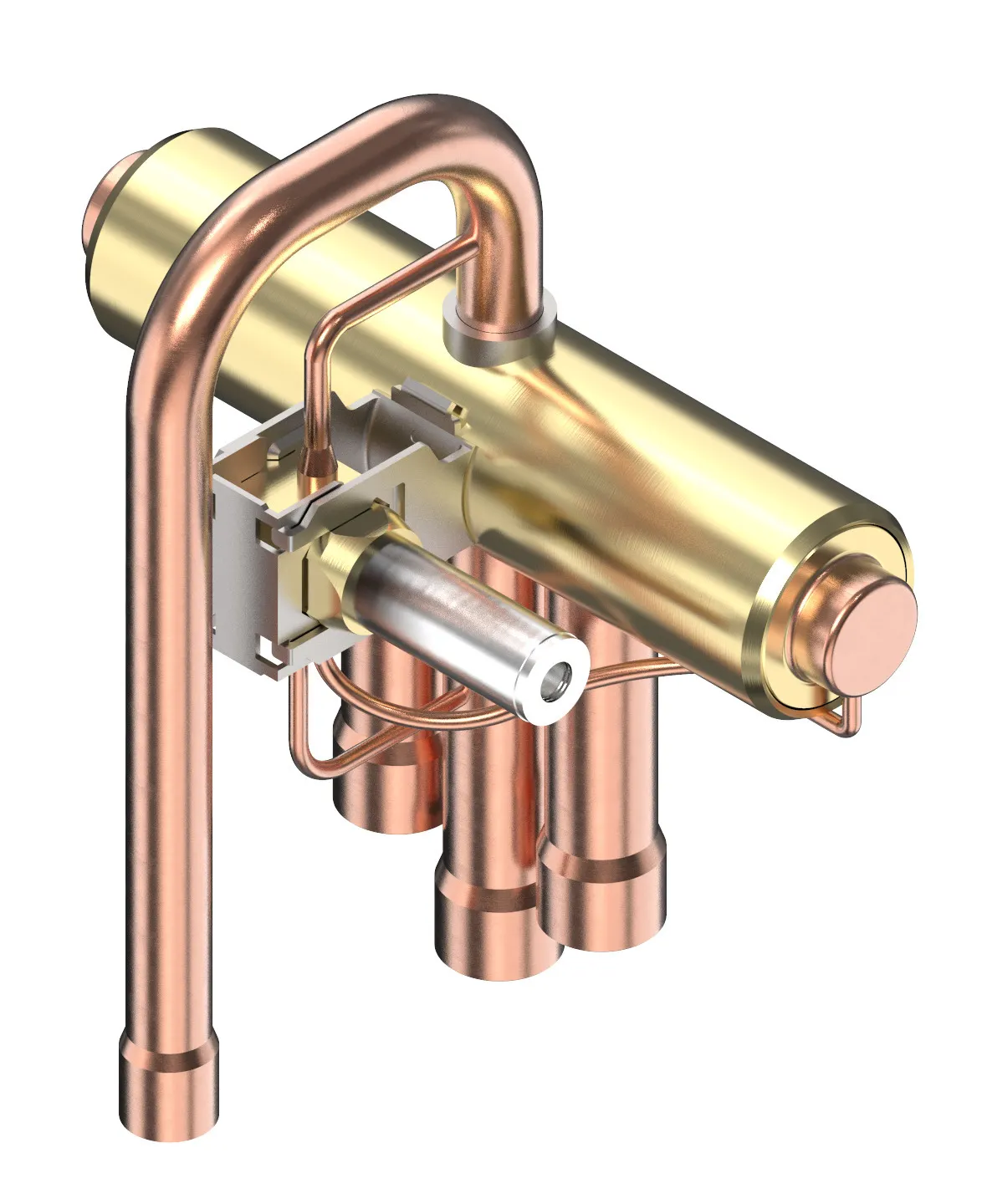

061L1348
Part Number: 061L1348
Product Information
Extended Description
061L1348 Danfoss: Medium temperature range [°C]: -30 - 130, MaxOPD [bar]: 31.0, MinODP [bar]: 3.000, Suction conn size [in]: 3/8, Discharge conn size [in]: 5/16, Design config. Style: A
Gross weight
0.236 Kilogram
Net weight
0.202 Kilogram
Volume
0.947 Liter
EAN
5715162259085
Ambient temperature range [°C] [max]
55 °C
Ambient temperature range [°C] [min]
-30 °C
Cap R410A@Δp:0.1bar(cond1)[kW]
4.8 kW
China RoHS compliance
Out of scope
Coil
No
Contain batteries
No
Design config. Style
A
Discharge conn size [in]
5/16
EU RoHS compliance
Out of scope
Max. Working Pressure [bar]
45 bar
MaxOPD [bar]
31 bar
Medium temperature range [°C] [max]
130 °C
Medium temperature range [°C] [min]
-30 °C
MinODP [bar]
3 bar
Packing format
Industrial pack
Product group
4-way reversing valves
Product Name Description
4-way reversing valve
Quantity per packing format
45 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerants
R134a,R22,R290,R32,R404A,R407A,R407C,R410A,R448A,R449A,R452B,R454B,R454C
SCIP dossier no.
f8fe2fb6-0750-4373-b03a-5b5988b72210
SCIP dossier product name
Four-way valve(1)
Suction conn size [in]
3/8
Type
STF
Type designation
STF-H0167
UK RoHS compliance
Out of scope
