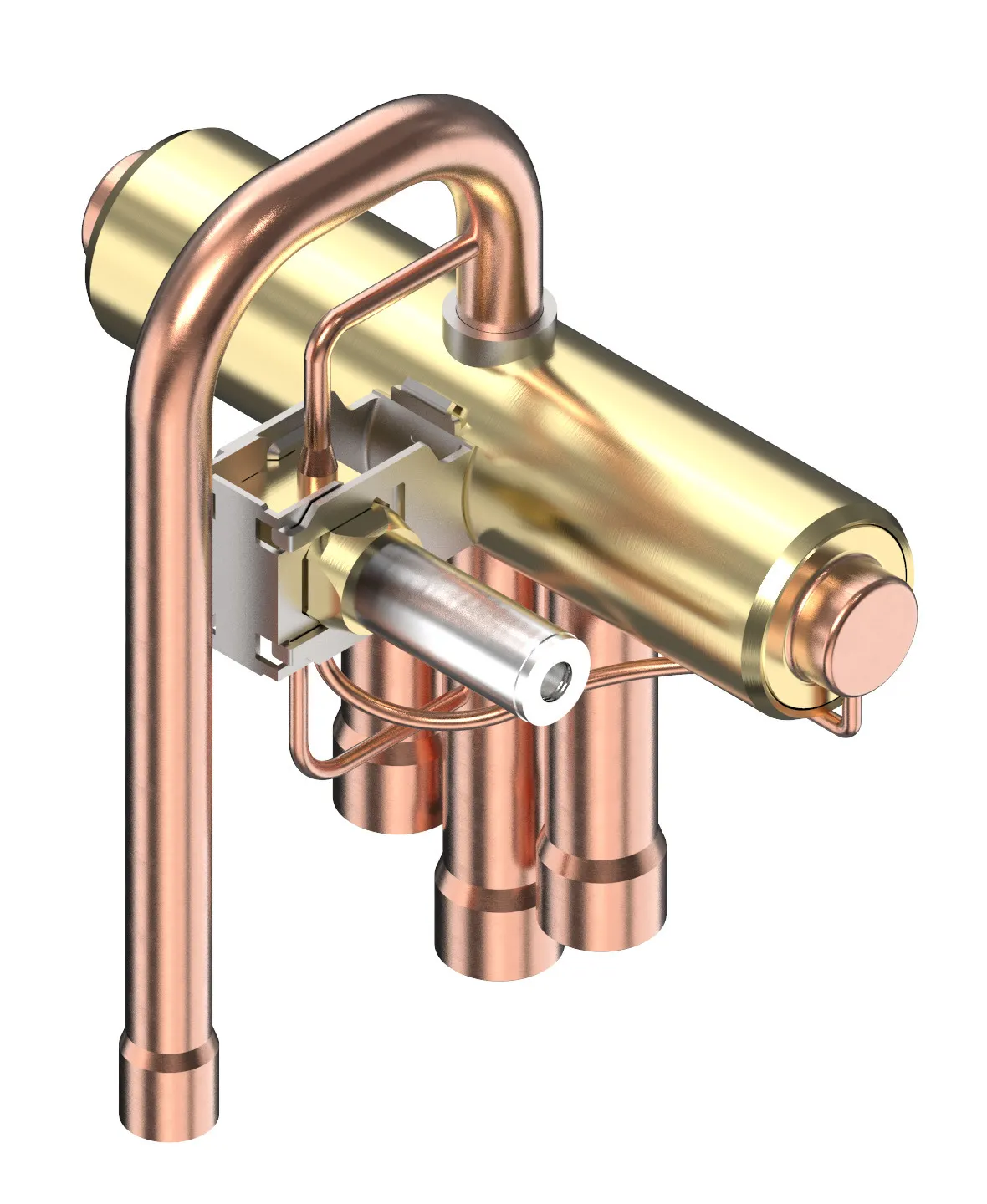

061L1349
Part Number: 061L1349
Product Information
Extended Description
061L1349 Danfoss: Medium temperature range [°C]: -30 - 120, MaxOPD [bar]: 31.0, MinODP [bar]: 3.000, Suction conn size [in]: 1/2, Discharge conn size [in]: 3/8, Design config. Style: A
Gross weight
0.379 Kilogram
Net weight
0.308 Kilogram
Volume
1.848 Liter
EAN
5715162259078
Ambient temperature range [°C] [max]
55 °C
Ambient temperature range [°C] [min]
-30 °C
Ambient temperature range [°F] [max]
131 °F
Ambient temperature range [°F] [min]
-4 °F
Approval
CE,UKCA,VDE
Cap condition 1 [°C]
0°C sub-cooling,38°C condensing,5°C evaporating,5°C super-heat
Cap condition 2 [°C]
54,4 °C condensing,5°C sub-cooling,5°C super-heat,7,2°C evaporating
Cap R407C@Δp:0.1bar(cond1)[kW]
7.18 kW
Cap R407C@Δp:0.1bar(cond2)[kW]
6.63 kW
Cap R407C@Δp:0.2bar(cond1)[kW]
10.11 kW
Cap R407C@Δp:0.2bar(cond2)[kW]
9.34 kW
Cap R410A@Δp:0.1bar(cond1)[kW]
9.5 kW
Cap R410A@Δp:0.1bar(cond2)[kW]
7.94 kW
Cap R410A@Δp:0.2bar(cond1)[kW]
12.43 kW
Cap R410A@Δp:0.2bar(cond2)[kW]
11.2 kW
CE evaluated
Yes
China RoHS compliance
Out of scope
Coil
No
Contain batteries
No
Design config. Style
A
Discharge conn size [in]
3/8
Discharge conn size [mm]
9.7 mm
Discharge conn type
FEMALE
EU RoHS compliance
Out of scope
Evap/cond conn size [in]
1/2
Evap/cond conn size [mm]
12,95
Max. Leakage [cmÂł/min]
1500 cmÂł/min
Max. Working Pressure [bar]
45 bar
MaxOPD [bar]
31 bar
MaxOPD [psig]
450 psig
Medium temperature range [°C] [max]
120 °C
Medium temperature range [°C] [min]
-30 °C
Medium temperature range [°F] [max]
248 °F
Medium temperature range [°F] [min]
-4 °F
MinODP [bar]
3 bar
MinODP [psi]
50 psi
Packing format
Industrial pack
Process connection material
Copper
Product group
4-way reversing valves
Product Name Description
4-way reversing valve
Quantity per packing format
32 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerants
R134a,R22,R290,R32,R404A,R407A,R407C,R410A,R448A,R449A,R452B,R454B,R454C
SCIP dossier no.
f8fe2fb6-0750-4373-b03a-5b5988b72210
SCIP dossier product name
Four-way valve(1)
Shock resistance standard
JIS C 60068-2-27
Suction conn size [in]
1/2
Suction conn size [mm]
12.95 mm
Type
STF
Type designation
STF-H0167
UK RoHS compliance
Out of scope
Vibration stability [m/s²]
19.6 m/s²
Vibration test standard
JIS C 60068-2-6
