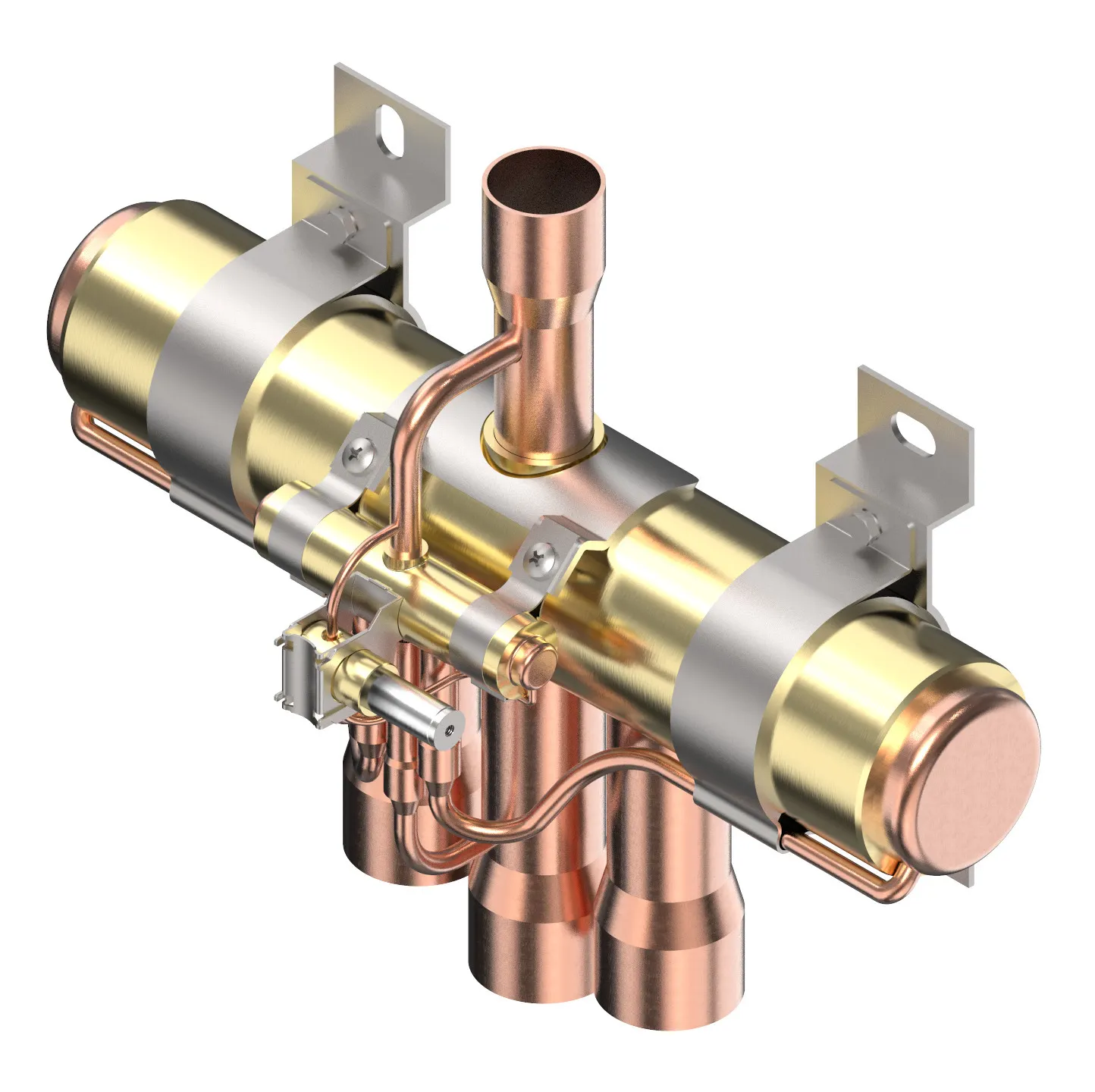

061L1369
Part Number: 061L1369
Product Information
Extended Description
061L1369 Danfoss: Medium temperature range [°C]: -30 - 160, MaxOPD [bar]: 31.0, MinODP [bar]: 3.000, Suction conn size [in]: 2 1/2, Discharge conn size [in]: 15/8, Design config. Style: G
Gross weight
2.444 Kilogram
Net weight
1.36 Kilogram
Volume
15.088 Liter
EAN
5715162500101
Ambient temperature range [°C] [max]
55 °C
Ambient temperature range [°C] [min]
-30 °C
Cap R410A@Δp:0.1bar(cond1)[kW]
161.3 kW
China RoHS compliance
Out of scope
Coil
No
Contain batteries
No
Design config. Style
G
Discharge conn size [in]
15/8
EU RoHS compliance
Out of scope
Max. Working Pressure [bar]
49 bar
MaxOPD [bar]
31 bar
Medium temperature range [°C] [max]
160 °C
Medium temperature range [°C] [min]
-30 °C
MinODP [bar]
3 bar
Packing format
Single pack
Product group
4-way reversing valves
Product Name Description
4-way reversing valve
Quantity per packing format
1 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerants
R134a,R22,R290,R32,R407A,R407C,R410A,R448A,R449A,R452B,R454B,R454C
SCIP dossier no.
f8fe2fb6-0750-4373-b03a-5b5988b72210
SCIP dossier product name
Four-way valve(1)
Suction conn size [in]
2 1/2
Type
STF
Type designation
STF-6009G
UK RoHS compliance
Out of scope
