061L2039
Part Number: 061L2039
Product Information
Extended Description
061L2039 Danfoss: Supply voltage [V] AC: 220, Frequency [Hz]: 50/60 Hz, Enclosure rating IP: IP54
Gross weight
0.11 Kilogram
Net weight
0.105 Kilogram
Volume
0.111 Liter
EAN
5702428272896
Ambient temperature range [°C] [max]
55 °C
Ambient temperature range [°C] [min]
-20 °C
Ambient temperature range [°F] [max]
131 °F
Ambient temperature range [°F] [min]
-4 °F
Approval
CE,UKCA,VDE
CE evaluated
Yes
China RoHS compliance
Out of scope
Class of Insulation
B
Coil
Yes
Coil mount, recom. torque [Nm] [max]
1.96 nm
Coil mount, recom. torque [Nm] [min]
1.47 nm
Contain batteries
No
Enclosure rating IP
IP54
EU RoHS compliance
Out of scope
Frequency [Hz]
50/60 Hz
Packing format
Industrial pack
Power consumption [W]
7 W
Product group
4-way reversing valves
Product Name Description

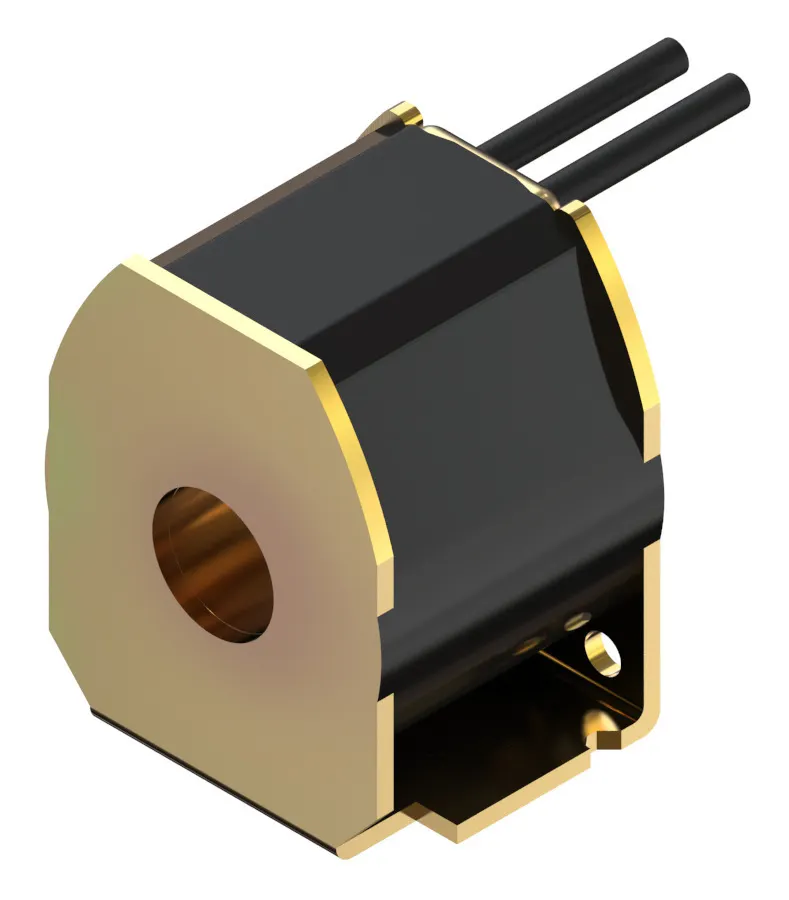

4-way reversing valve coil
Quantity per packing format
140 pc
Supply voltage [V] AC
220 V
Type
STF
Type designation
STF-01AI040A1
UK RoHS compliance
Out of scope
