061L2121
Part Number: 061L2121
Product Information
Extended Description
061L2121 Danfoss: Supply voltage [V] AC: 208, Frequency [Hz]: 50 Hz, Enclosure rating IP: IP54
Gross weight
0.187 Kilogram
Net weight
0.178 Kilogram
Volume
0.263 Liter
EAN
5702428272506
Ambient temperature range [°C] [max]
55 °C
Ambient temperature range [°C] [min]
-20 °C
Ambient temperature range [°F] [max]
131 °F
Ambient temperature range [°F] [min]
-4 °F
Approval
CE,UKCA,VDE
Cable length [in]
102.36 in
Cable length [m]
2.6 m
CE evaluated
Yes
China RoHS compliance
Out of scope
Class of Insulation
B
Coil mount, recom. torque [Nm] [max]
1.96 nm
Coil mount, recom. torque [Nm] [min]
1.47 nm
Contain batteries
No
Enclosure rating IP
IP54
EU RoHS compliance
Out of scope
Frequency [Hz]
50 Hz
Packing format
Industrial pack
Power consumption [W]
6 W
Product group
4-way reversing valves
Product Name Description

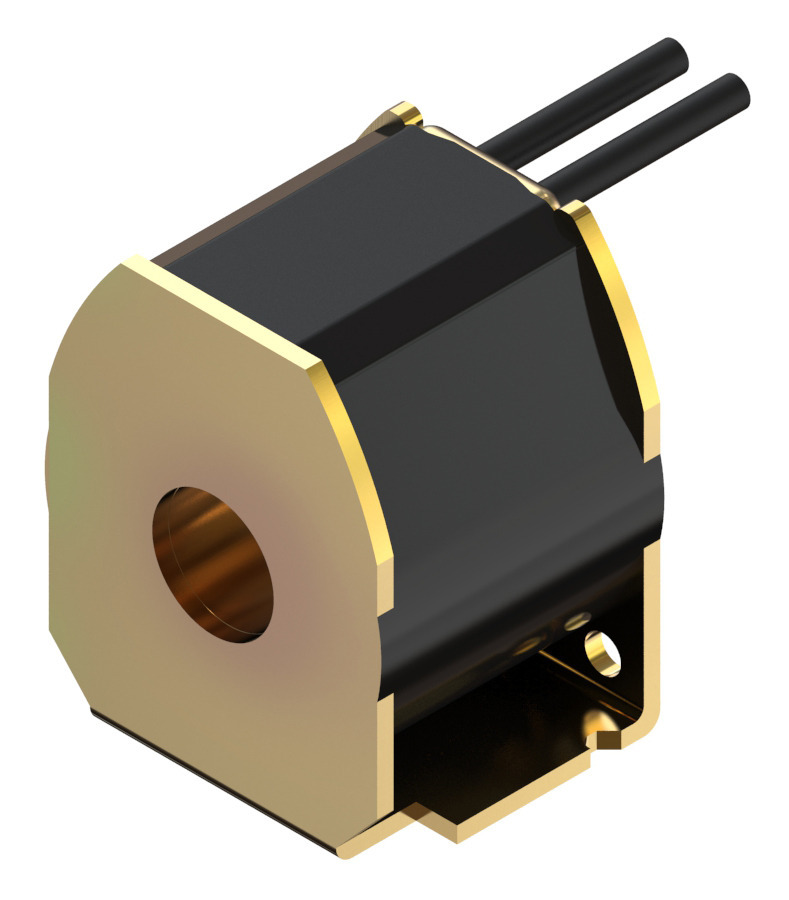

4-way reversing valve coil
Quantity per packing format
60 pc
REACH Candidate List substances
No
Supply voltage [V] AC
208 V
Type
STF
Type designation
STF-01AJ586A1
UK RoHS compliance
Out of scope
