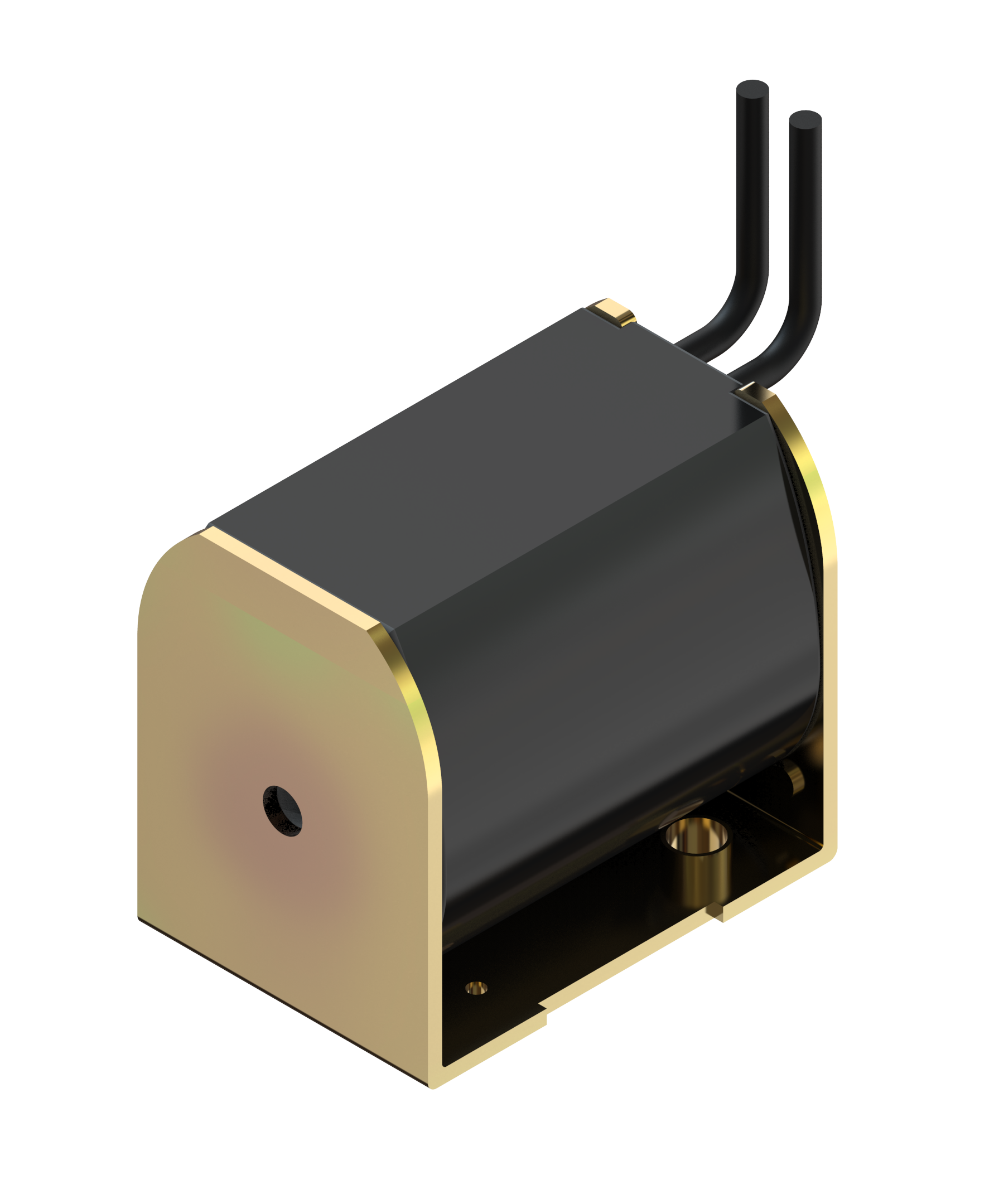

061L2216
Part Number: 061L2216
Product Information
Extended Description
061L2216 Danfoss: Enclosure rating IP: IP54
Gross weight
0.241 Kilogram
Net weight
0.241 Kilogram
Volume
0.432 Liter
EAN
5702428518666
Ambient temperature range [°C] [max]
65 °C
Ambient temperature range [°C] [min]
-30 °C
Ambient temperature range [°F] [max]
149 °F
Ambient temperature range [°F] [min]
-22 °F
Approval
CE,UKCA,VDE
Cable length [in]
23.6 in
Cable length [m]
0.6 m
CE evaluated
Yes
China RoHS compliance
Out of scope
Class of Insulation
B
Coil mount, recom. torque [Nm] [max]
1.96 nm
Coil mount, recom. torque [Nm] [min]
1.47 nm
Contain batteries
No
Enclosure rating IP
IP54
EU RoHS compliance
Out of scope
Packing format
Industrial pack
Power consumption [W]
11 W
Product group
4-way reversing valves
Product Name Description
4-way reversing valve coil
Quantity per packing format
120 pc
REACH Candidate List substances
No
Supply voltage [V] DC
24 V
Type
VHV
Type designation
VHV-MOAT058A1
UK RoHS compliance
Out of scope
