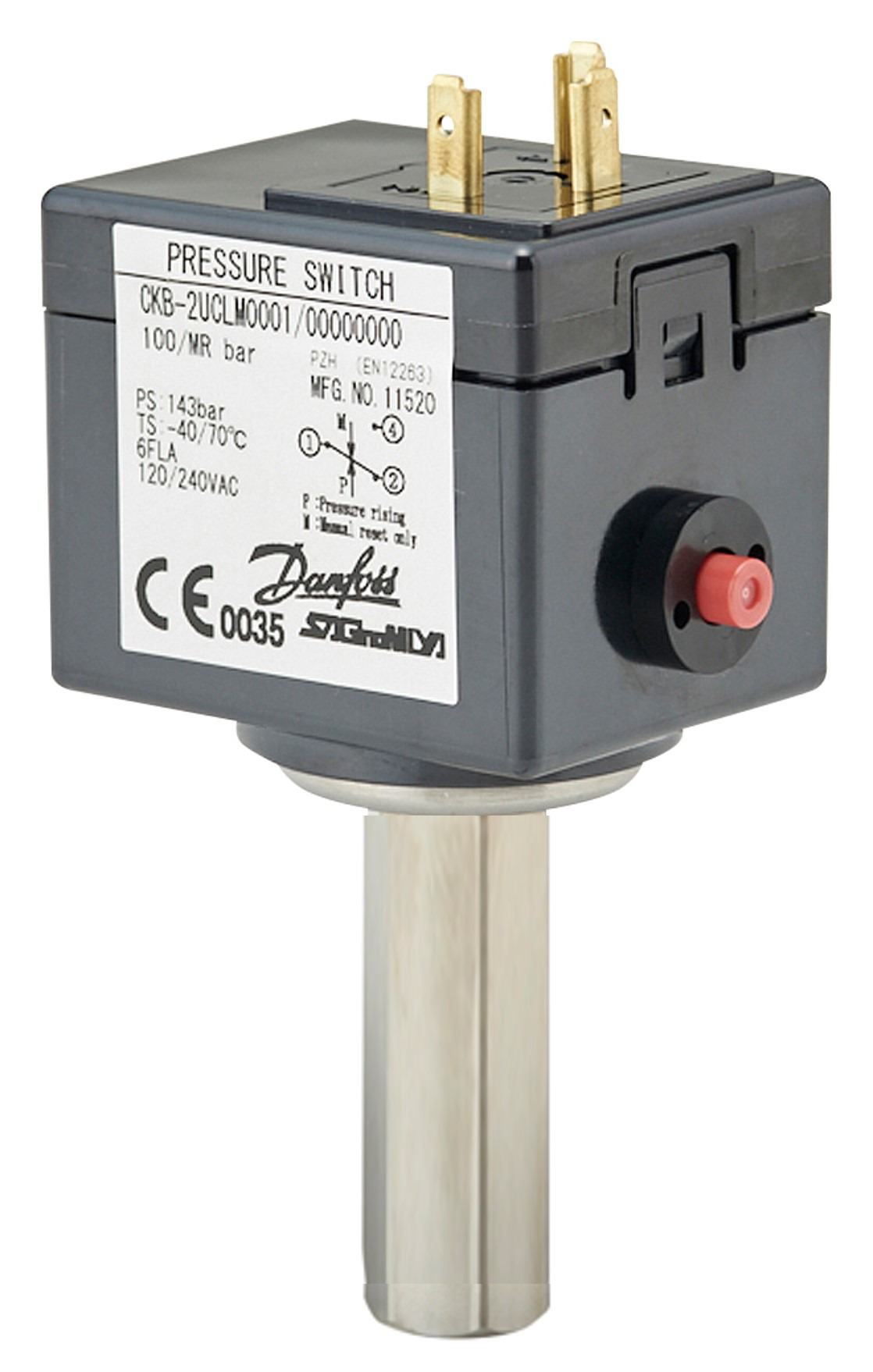

061Z4023
Part Number: 061Z4023
Product Information
Extended Description
061Z4023 Danfoss: Reset function: Auto, Pressure connection type: Flare, Pressure connection size: 1/4 in, Enclosure rating IP: IP65, Max. Working Pressure [bar]: 143.0
Gross weight
0.237 Kilogram
Net weight
0.18 Kilogram
Volume
0.52 Liter
EAN
5715255004738
Ambient temperature range [°C] [max]
70 °C
Ambient temperature range [°C] [min]
-40 °C
Ambient temperature range [°F] [max]
158 °F
Ambient temperature range [°F] [min]
-40 °F
Approval
CE 0035,TĂśV
Contact function
SPDT
Contact rating
AC=6 A, 250 V
Contain batteries
No
Electrical conn. comments
DIN plug not included
Electrical connection
DIN Spade
Enclosure rating IP
IP65
Higher activ. pressure [bar]
130 bar
Higher activ. pressure [psi]
1885 psi
Lower activ. pressure [bar]
120 bar
Lower activ. pressure [psi]
1740 psi
Max. Working Pressure [bar]
143 bar
Max. Working Pressure [psig]
2074 psig
Medium temperature range [°C] [max]
150 °C
Medium temperature range [°C] [min]
-40 °C
Medium temperature range [°F] [max]
302 °F
Medium temperature range [°F] [min]
-40 °F
Packing format
Multi pack
Pressure connection length[in]
1.69 in
Pressure connection length[mm]
43 mm
Pressure connection notes
Deflator
Pressure connection size
1/4 in
Pressure connection type
Flare
Pressure Male/Female
Female
Pressure range category
High pressure
Product group
Switches and thermostats
Product Name Description
Pressure switch
Quantity per packing format
25 pc
Refrigerants
R744
Reset function
Auto
Specification key
CKB-2UCBA4023
Type
CKB
