061Z6003
Part Number: 061Z6003
Product Information
Extended Description
061Z6003 Danfoss: Reset function: Manual with tool, Pressure connection type: Flare, Pressure connection size: 1/4 in, Enclosure rating IP: IP65, Max. Working Pressure [bar]: 143.0
Gross weight
0.247 Kilogram
Net weight
0.18 Kilogram
Volume
0.52 Liter
EAN
5715162609972
Ambient temperature range [°C] [max]
70 °C
Ambient temperature range [°C] [min]
-40 °C
Ambient temperature range [°F] [max]
158 °F
Ambient temperature range [°F] [min]
-40 °F
Approval
CE 0035,TĂśV
CE evaluated
Yes
Contact function
SPDT
Contact rating
AC=6 A, 250 V
Contain batteries
No
Electrical conn. comments
DIN plug not included
Electrical connection
DIN Spade
Enclosure rating IP
IP65
Higher activ. pressure [bar]
130 bar
Higher activ. pressure [psi]
1885 psi
Max. Working Pressure [bar]
143 bar
Max. Working Pressure [psig]
2074 psig
Medium temperature range [°C] [max]
150 °C
Medium temperature range [°C] [min]
-40 °C
Medium temperature range [°F] [max]
302 °F
Medium temperature range [°F] [min]
-40 °F
Packing format
Multi pack
Pressure connection length[in]
1.69 in
Pressure connection length[mm]
43 mm
Pressure connection notes
Deflator
Pressure connection size
1/4 in
Pressure connection type
Flare
Pressure Male/Female
Female
Pressure range category
High pressure
Product group
Switches and thermostats
Product Name Description

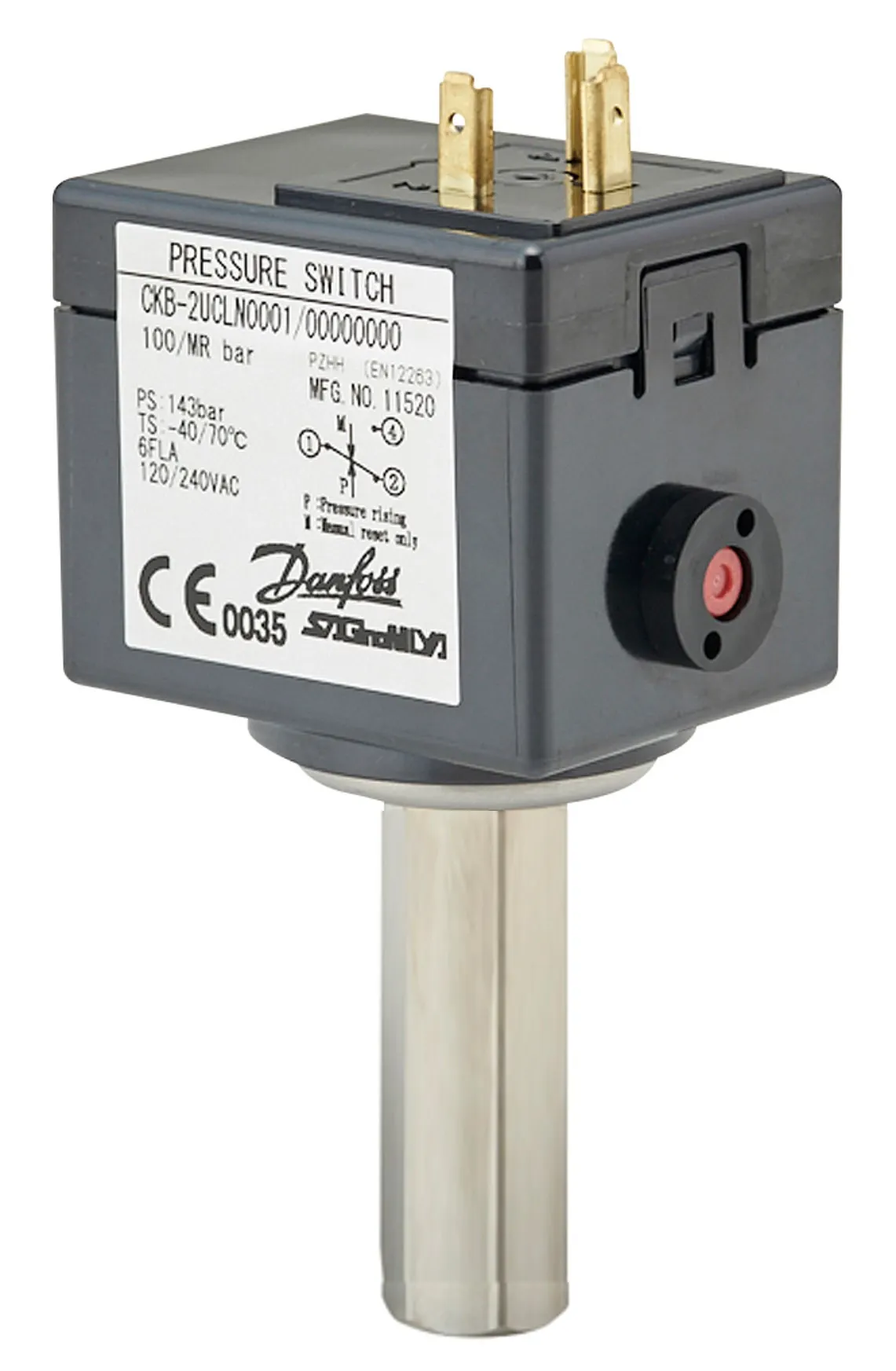

Pressure switch
Quantity per packing format
25 pc
Refrigerants
R744
Reset function
Manual with tool
Specification key
CKB-2UCBN6003
Type
CKB
