065-0597
Part Number: 065-0597
Product Information
Extended Description

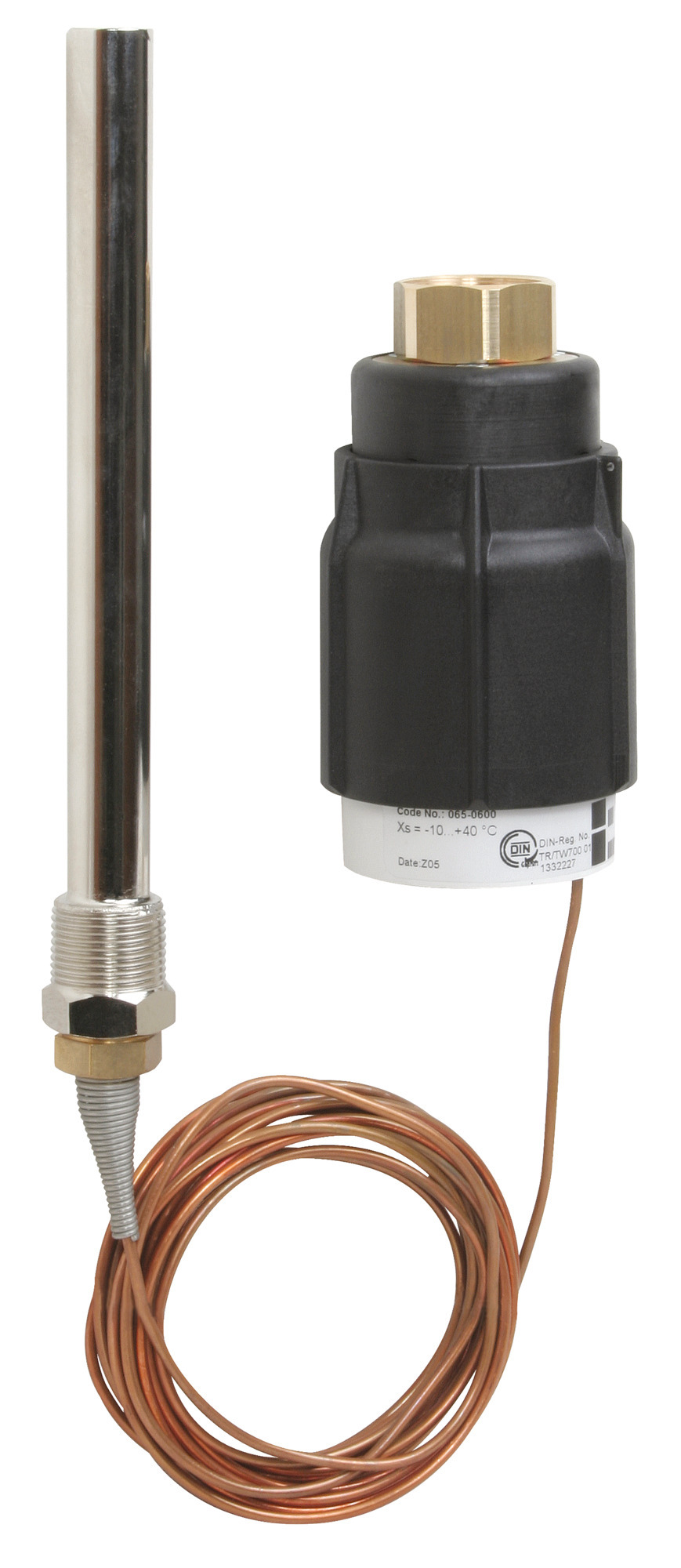

065-0597 Danfoss: AVT PN25 20-70/5m 170mm R1/2 Brass pck
Gross weight
1.426 Kilogram
Net weight
1.198 Kilogram
Volume
5.607 Liter
EAN
5702421544204
Ambient temperature [°C] [max]
70 °C
Ambient temperature [°C] [min]
0 °C
Approval standard
DIN EN 14597:2005-12 TR (TW)700
Capillary tube length [m]
5 m
Contain batteries
No
Description
AVT PN25 20-70/5m 170mm R1/2 Brass pck
EU RoHS compliance
Yes with exemptions
Function
Temp. controller
Gain Ks
0.2
Impulse tube material
Copper mat. No 2.0090
Media temperature at sensor [°C] [Max]
120 °C
Mounting version
Free
Product group
Actuators - Temperature
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
c3f9e8ec-04a0-44f1-a973-1c12af183075
SCIP dossier product name
AVT1
Sensor connection
M14x1 / R1/2 ext thread acc. DIN 2999
Sensor pocket length [mm]
170 mm
Sensor pocket material
Brass
Temperature sensor diameter [mm]
9.5 mm
Temperature sensor length [mm]
170 mm
Temperature sensor material
Copper mat. No 2.0090
Temperature setting range [°C] [Max]
70 °C
Temperature setting range [°C] [Min]
20 °C
Time constant [sec]
50 "
Transport temperature [°C] [Max]
50 °C
Transport temperature [°C] [Min]
-20 °C
Type
AVT
065-4420
Sensor stuffingbox set for AVT R 1/2#
003H6855
Combination Piece K2, M45 / 2 x M45
003H6856
Combination Piece K3, M45 / 3 x M45
065-4414
Immersion pockets, PN 25, For product type: AVT, 170 mm, R 1/2, Brass
065-4415
Immersion pockets, PN 25, For product type: AVT, 170 mm, R 1/2, Stainless steel
065-4420
Sensor stuffingbox set for AVT R 1/2#
