065-0605
Part Number: 065-0605
Product Information
Extended Description

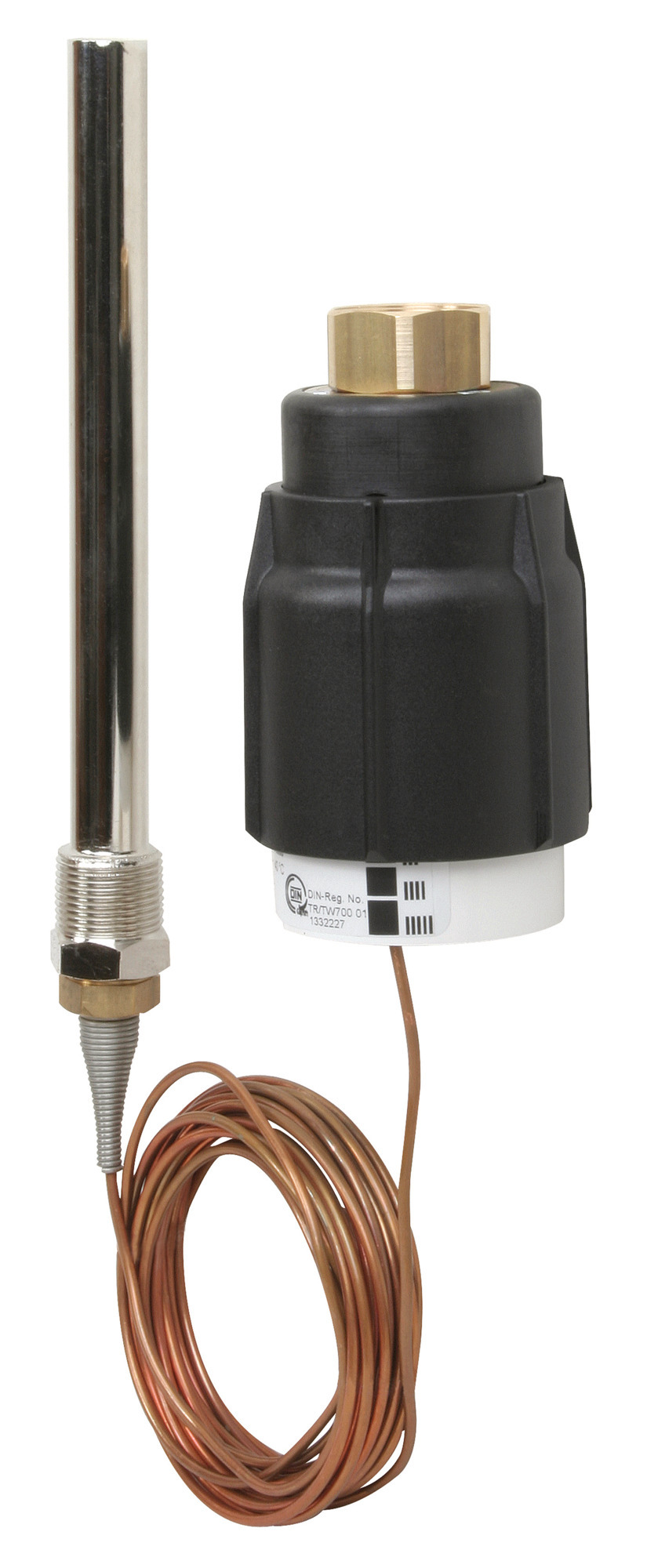

065-0605 Danfoss: AVT PN25 35-70/4m 255mm R3/4
Gross weight
1.745 Kilogram
Net weight
1.55 Kilogram
Volume
5.607 Liter
EAN
5702421544280
Ambient temperature [°C] [max]
70 °C
Ambient temperature [°C] [min]
0 °C
Approval standard
DIN EN 14597:2005-12 TR (TW)700
Capillary tube length [m]
4 m
Contain batteries
No
Description
AVT PN25 35-70/4m 255mm R3/4
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Function
Temp. controller
Gain Ks
0.7
Impulse tube material
Copper mat. No 2.0090
Media temperature at sensor [°C] [Max]
120 °C
Mounting version
Free
Product group
Actuators - Temperature
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
5d246b33-1c54-4638-8794-9836ce32c35f
SCIP dossier product name
AVT PN25
Sensor connection
R 3/4 conic ext. thread acc. to DIN 2999
Temperature sensor diameter [mm]
16 mm
Temperature sensor length [mm]
255 mm
Temperature sensor material
Copper mat. No 2.0090
Temperature setting range [°C] [Max]
70 °C
Temperature setting range [°C] [Min]
35 °C
Time constant [sec]
30 "
Transport temperature [°C] [Max]
50 °C
Transport temperature [°C] [Min]
-20 °C
Type
AVT (fast)
065-4420
Sensor stuffingbox set for AVT R 1/2#
065-4421
Sensor stuffingbox set for AVT(-U) R 3/4
003H6855
Combination Piece K2, M45 / 2 x M45
003H6856
Combination Piece K3, M45 / 3 x M45
003H6927
Adapter M34 / M45
065-4414
Immersion pockets, PN 25, For product type: AVT, 170 mm, R 1/2, Brass
065-4415
Immersion pockets, PN 25, For product type: AVT, 170 mm, R 1/2, Stainless steel
065-4416
Immersion pockets, PN 25, For product type: AVT, 210 mm, R 3/4, Brass
065-4417
Immersion pockets, PN 25, For product type: AVT, 210 mm, R 3/4, Stainless steel
065-4421
Sensor stuffingbox set for AVT(-U) R 3/4
