065-0609
Part Number: 065-0609
Product Information
Extended Description

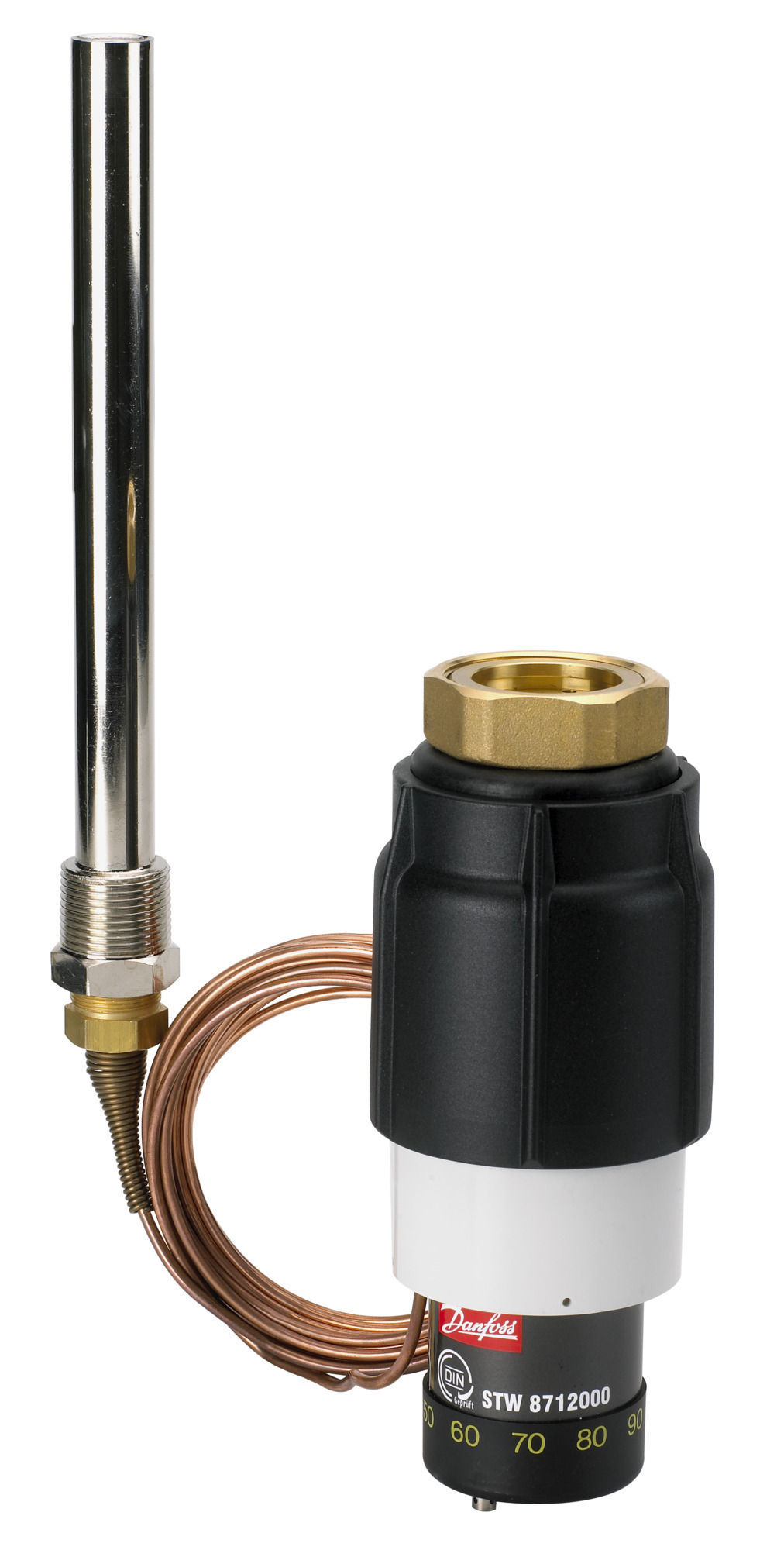

065-0609 Danfoss: STM PN25 20-75/5m
Gross weight
2.676 Kilogram
Net weight
2.676 Kilogram
Volume
5.503 Liter
EAN
5702421544310
Ambient temperature [°C] [max]
70 °C
Ambient temperature [°C] [min]
0 °C
Approval standard
DIN EN 14597:2005-12 STW871
Capillary tube length [m]
5 m
Contain batteries
No
Description
STM PN25 20-75/5m
EU RoHS compliance
Yes with exemptions
Function
Safety temperature monitor
Gain Ks
0.3
Impulse tube material
Copper mat. No 2.0090
Media temperature at sensor [°C] [Max]
125 °C
Mounting version
Free
Product group
Actuators - Temperature
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
14b46c7e-f540-4aec-885a-fcd0f8e0222f
SCIP dossier product name
STM PN25
Sensor connection
M22x1 / R3/4 ext thread acc. DIN 2999
Temperature sensor diameter [mm]
16 mm
Temperature sensor length [mm]
210 mm
Temperature sensor material
Copper mat. No 2.0090
Temperature setting range [°C] [Max]
75 °C
Temperature setting range [°C] [Min]
20 °C
Time constant [sec]
100 "
Transport temperature [°C] [Max]
50 °C
Transport temperature [°C] [Min]
-20 °C
Type
STM
065-4421
Sensor stuffingbox set for AVT(-U) R 3/4
003H6855
Combination Piece K2, M45 / 2 x M45
003H6856
Combination Piece K3, M45 / 3 x M45
003H6927
Adapter M34 / M45
065-4416
Immersion pockets, PN 25, For product type: AVT, 210 mm, R 3/4, Brass
065-4417
Immersion pockets, PN 25, For product type: AVT, 210 mm, R 3/4, Stainless steel
