065-4394
Part Number: 065-4394
Product Information
Extended Description

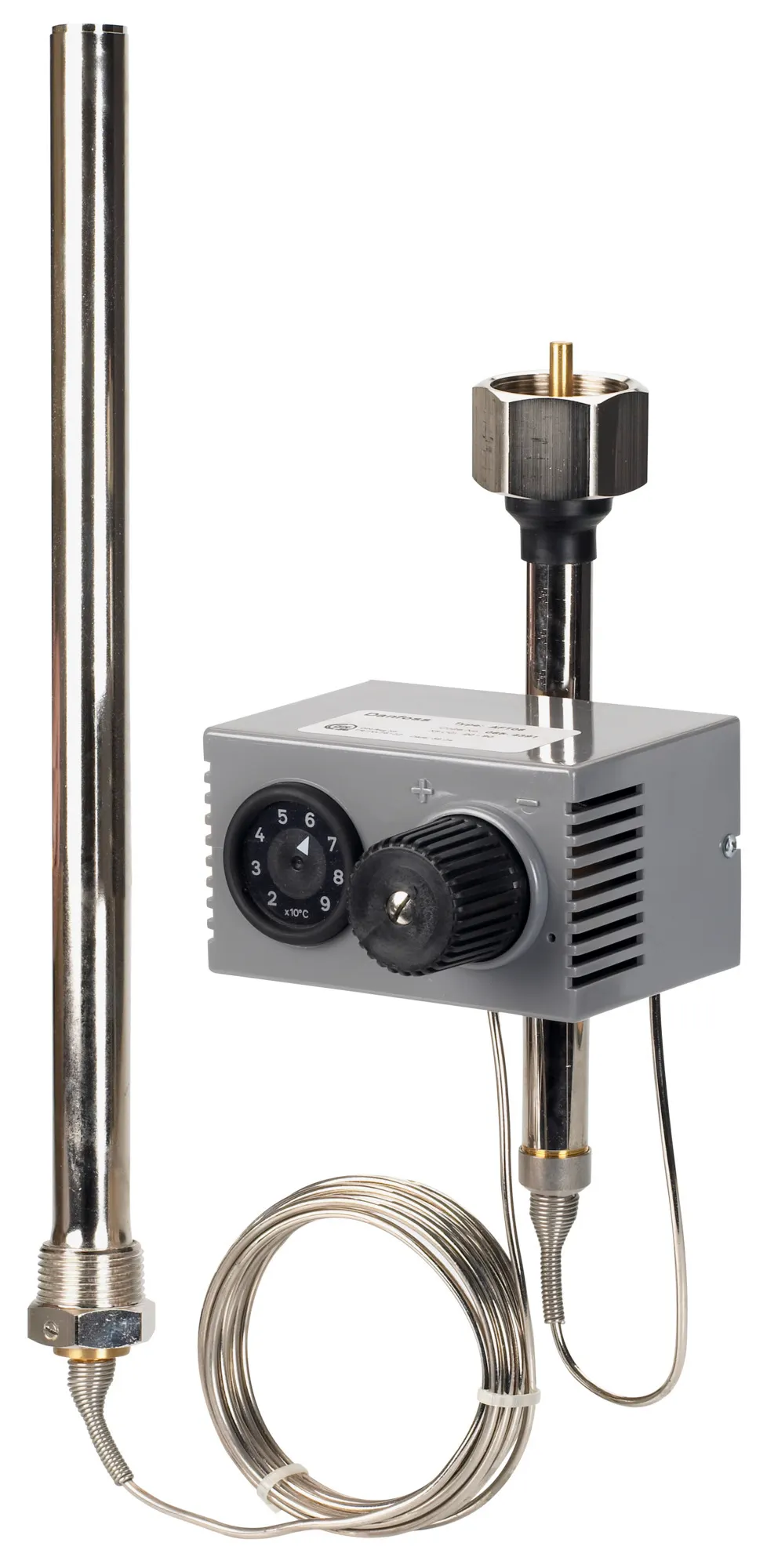

065-4394 Danfoss: AFT06 PN40 110-180/5m Bronze pocket
Gross weight
4.54 Kilogram
Net weight
3.688 Kilogram
Volume
36.39 Liter
EAN
5702421807972
Ambient temperature [°C] [max]
70 °C
Ambient temperature [°C] [min]
0 °C
Approval standard
DIN EN 14597:2005-12 TR(TW)76107
Capillary tube length [m]
5 m
Contain batteries
No
Description
AFT06 PN40 110-180/5m Bronze pocket
Function
Temp. controller
Gain Ks
0.8
Impulse tube material
Copper mat. No 2.0090
Media temperature at sensor [°C] [Max]
280 °C
Mounting version
Free
Product group
Actuators - Temperature
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
ed87ec22-a47b-4139-aab5-e30be62a5a68
SCIP dossier product name
Selfacting Thermostats - AFT
Sensor connection
R1 conic male thread acc. to DIN 2999
Temperature sensor diameter [mm]
22 mm
Temperature sensor length [mm]
386 mm
Temperature sensor material
Copper mat. No 2.0090
Temperature setting range [°C] [Max]
180 °C
Temperature setting range [°C] [Min]
110 °C
Time constant [sec]
120 "
Transport temperature [°C] [Max]
50 °C
Transport temperature [°C] [Min]
-20 °C
Type
AFT 06
003G1399
Immersion pockets, PN 40, For product type: AFT, 401 mm, R1" DIN2999, Bronze
003G1394
Stem extension ZF 4, AF range, DN 15-125
003G1412
Immersion pockets, PN 40, For product type: AFT, 401 mm, R1" DIN2999, Stainless steel
003G1440
Combination pieces KF2 2 x G 1 1/4"
