065B0770

Part Number: 065B0770
065B0770
Manufacturer
Danfoss
Part number
065B0770
Category

Product Information

Extended Description

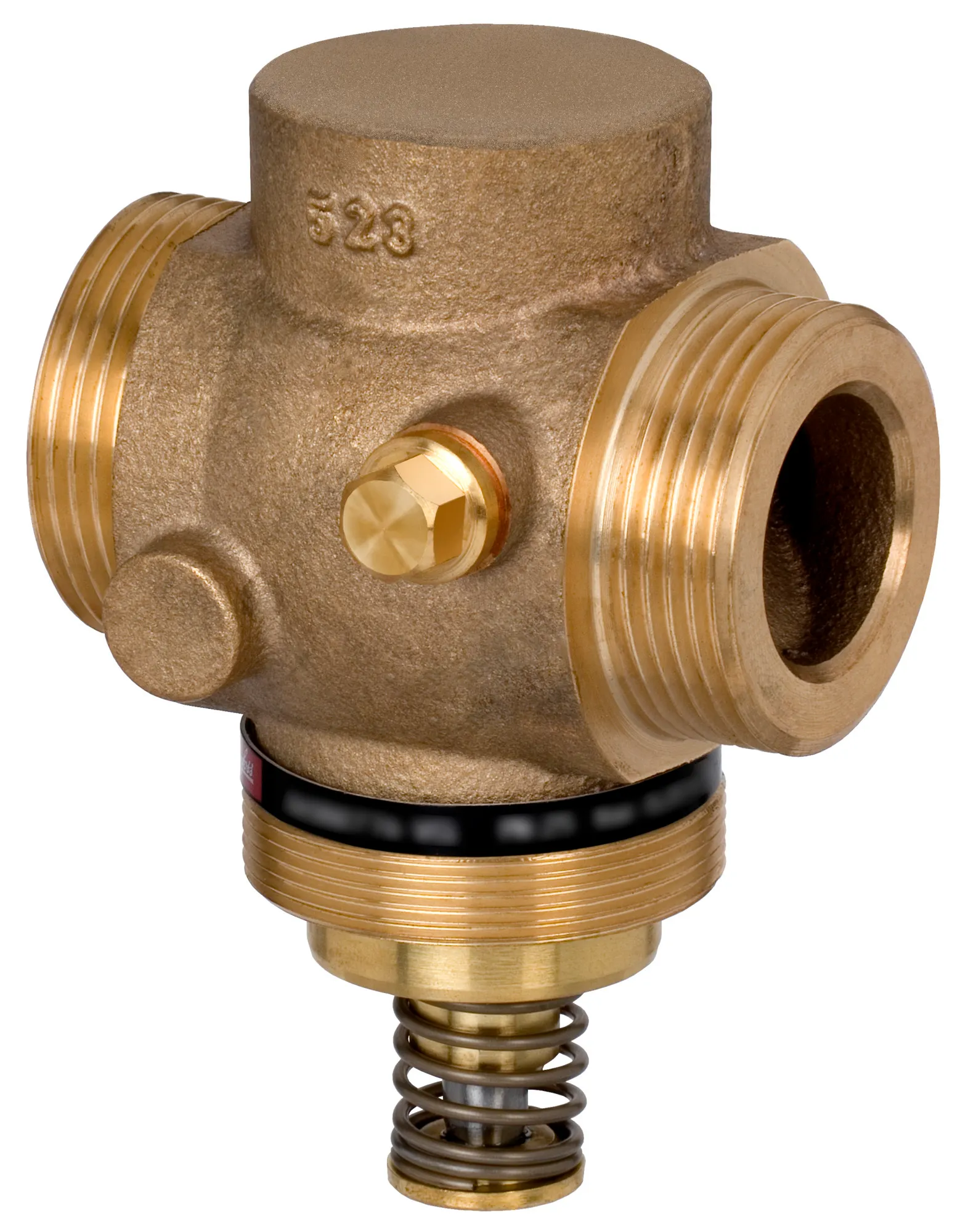

065B0770 Danfoss: VG PN25 15/0,4 2-way thread flow
Gross weight
0.772 Kilogram
Net weight
0.772 Kilogram
Volume
1.467 Liter
EAN
5702421543528
Application
District Heating
Cavitation factor
0.6
China RoHS compliance
Out of scope
Connection size
G 3/4 A
Connection standard
ISO 228/1
Connection types
External Thread
Contain batteries
No
Description
VG PN25 15/0,4 2-way thread flow
Diameter [mm]
15 mm
Differential pressure range [bar] [Max]
20 bar
EU RoHS compliance
Out of scope
Flow characteristic
Approx. linear
Function
Control valve
Kvs values [mÂł/h]
0.4 mÂł/h
Leakage through port max. [% Kvs]
0.02
Media pH [Max]
10
Media pH [Min]
7
Media temperature [°C] [Max]
150 °C
Media temperature [°C] [Min]
2 °C
Medium alternative
Glycolic water up to 30%
Mounting version
Free
Number of ports
2
Permissible media
District heating/cooling circulation water
PN alternative VSP
16
Pressure class
PN 25
Pressure nominal [bar]
25 bar
Pressure relieve system
Piston
Product group
Motorized control valves
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Sealing material
EPDM
Spindle position
Normally open
Stroke [mm]
3 mm
Type
VG
UK RoHS compliance
Out of scope
Valve body material
Red bronze, mat. No. 2.1096.1 (RG5)
Valve cone material
DZR brass CuZn36Pb2AS (CW 602N)
Valve seat material
Stainless steel, mat. No. 1.4571
Valve size
DN 15
003H6869
Valve Inserts, For product type: VG, PN 25, DN 15
003H6902
Thread tailpieces, PN 25, DN 15, R 1/2; G 3/4, External Thread
003H6908
Weld-on tailpieces, PN 25, DN 15, G 3/4
003H6915
Flange tailpieces, PN 25, DN 15, G 3/4
065-0596
AVT, -10 °C - 40 °C, 170 mm, 5.0 m
065-0597
AVT, 20 °C - 70 °C, 170 mm, 5.0 m
065-0598
AVT, 40 °C - 90 °C, 170 mm, 5.0 m
065-0599
AVT, 60 °C - 110 °C, 170 mm, 5.0 m
065-0604
AVT (fast), 10 °C - 45 °C, 255 mm, 4.0 m
065-0605
AVT (fast), 35 °C - 70 °C, 255 mm, 4.0 m
065-0606
AVT (fast), 60 °C - 100 °C, 255 mm, 4.0 m
