065B0784

Part Number: 065B0784
065B0784
Manufacturer
Danfoss
Part number
065B0784
Category

Product Information

Extended Description

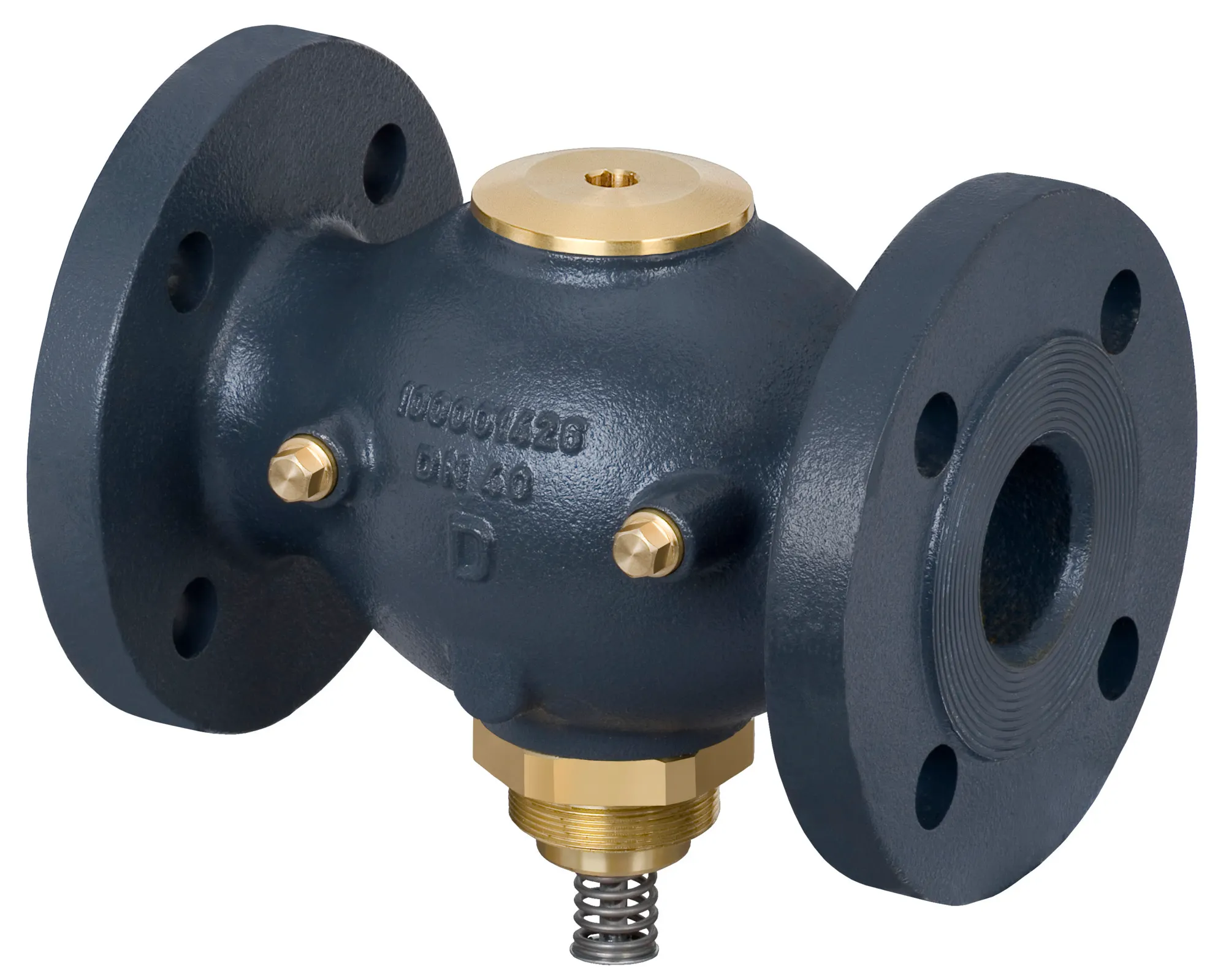

065B0784 Danfoss: VGF PN25 40/20 2-way flange flow
Gross weight
9.31 Kilogram
Net weight
9.31 Kilogram
Volume
14.256 Liter
EAN
5702421543665
Application
District Heating
Cavitation factor
0.6
China RoHS compliance
Out of scope
Connection size
40
Connection standard
EN 1092-2
Connection types
Flange
Contain batteries
No
Description
VGF PN25 40/20 2-way flange flow
Diameter [mm]
40 mm
Differential pressure range [bar] [Max]
16 bar
EU RoHS compliance
Out of scope
Flow characteristic
Approx. linear
Function
Control valve
Kvs values [mÂł/h]
20 mÂł/h
Leakage through port max. [% Kvs]
0.05
Media pH [Max]
10
Media pH [Min]
7
Media temperature [°C] [Max]
150 °C
Media temperature [°C] [Min]
2 °C
Medium alternative
Glycolic water up to 30%
Mounting version
Free
Number of ports
2
Permissible media
District heating/cooling circulation water
PN alternative VSP
16
Pressure class
PN 25
Pressure nominal [bar]
25 bar
Pressure relieve system
Piston
Product group
Motorized control valves
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Spindle position
Normally open
Stroke [mm]
10 mm
Type
VGF
UK RoHS compliance
Out of scope
Valve body material
Ductile cast iron EN-GJS-400-18-LT (GGG 40.3)
Valve cone material
DZR brass CuZn36Pb2AS (CW 602N)
Valve seat material
Stainless steel, mat. No. 1.4571
Valve size
DN 40
003H6876
Valve Inserts, For product type: VG, PN 25, DN 32
065-0600
AVT, -10 °C - 40 °C, 210 mm, 5.0 m
065-0601
AVT, 20 °C - 70 °C, 210 mm, 5.0 m
065-0602
AVT, 40 °C - 90 °C, 210 mm, 5.0 m
065-0603
AVT, 60 °C - 110 °C, 210 mm, 5.0 m
065-0604
AVT (fast), 10 °C - 45 °C, 255 mm, 4.0 m
065-0605
AVT (fast), 35 °C - 70 °C, 255 mm, 4.0 m
065-0606
AVT (fast), 60 °C - 100 °C, 255 mm, 4.0 m
065-0607
AVT (fast), 85 °C - 125 °C, 255 mm, 4.0 m
065-0608
STM, 30 °C - 110 °C, 210 mm, 5.0 m
065-0609
STM, 20 °C - 75 °C, 210 mm, 5.0 m
