065B0790

Part Number: 065B0790
065B0790
Manufacturer
Danfoss
Part number
065B0790
Category

Product Information

Extended Description

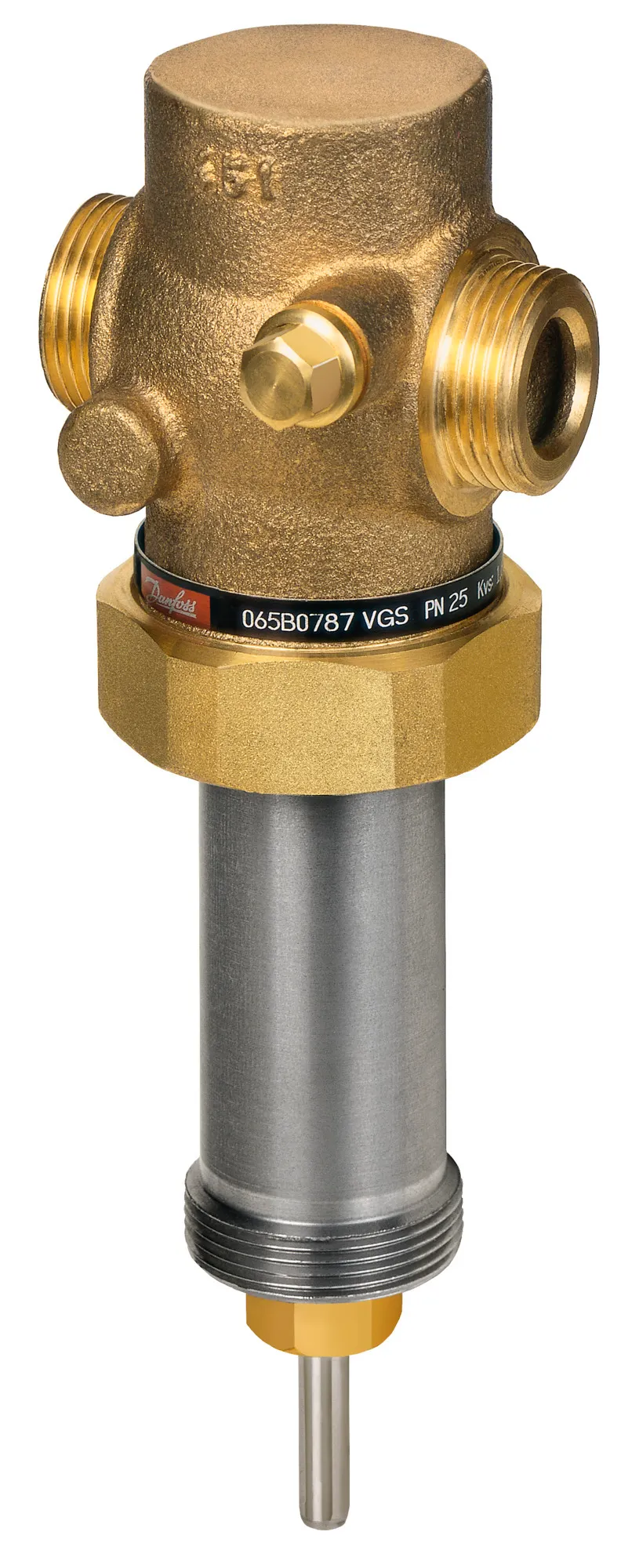

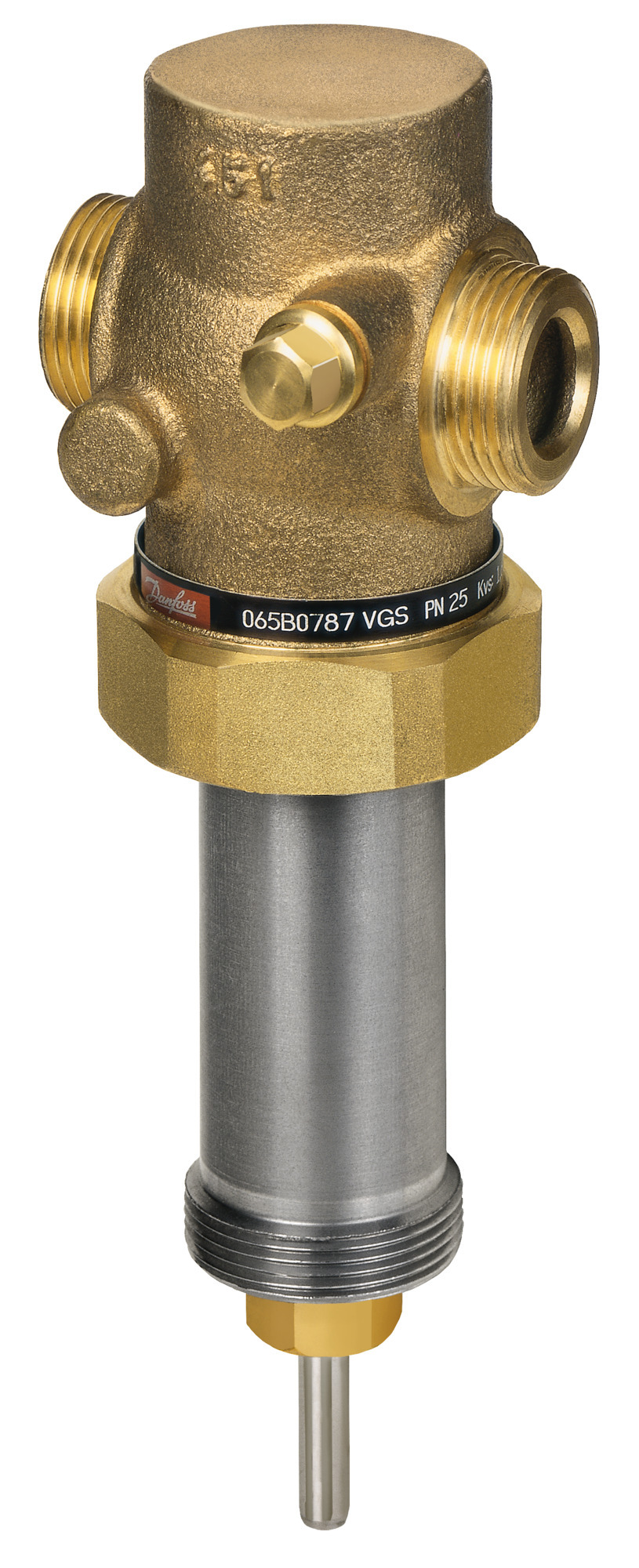

065B0790 Danfoss: VGS PN25 25/6,3 2-way thread flow/ret
Gross weight
1.584 Kilogram
Net weight
1.584 Kilogram
Volume
1.365 Liter
EAN
5702421543726
Application
Steam
Cavitation factor
0.6
China RoHS compliance
Out of scope
Connection size
G 1 1/4 A
Connection standard
ISO 228/1
Connection types
External Thread
Contain batteries
No
Description
VGS PN25 25/6,3 2-way thread flow/ret
Diameter [mm]
25 mm
Differential pressure range [bar] [Max]
10 bar
EU RoHS compliance
Out of scope
Flow characteristic
Approx. linear
Function
Control valve
Kvs values [mÂł/h]
6.3 mÂł/h
Leakage through port max. [% Kvs]
0.05
Media pH [Max]
10
Media pH [Min]
7
Media temperature [°C] [Max]
200 °C
Media temperature [°C] [Min]
2 °C
Medium alternative
Circulation water
Mounting version
Free
Number of ports
2
Permissible media
Steam
PN alternative VSP
16
Pressure class
PN 25
Pressure nominal [bar]
25 bar
Product group
Motorized control valves
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
65895f52-3e32-45db-8318-8d3e5b5f455b
SCIP dossier product name
VGS PN25
Spindle position
Normally open
Stroke [mm]
5 mm
Type
VGS
UK RoHS compliance
Out of scope
Valve body material
Red bronze, mat. No. 2.1096.1 (RG5)
Valve cone material
Stainless steel, mat. No. 1.4122
Valve seat material
Stainless steel, mat. No. 1.4571
Valve size
DN 25
003H6877
Valve Inserts, For product type: VGS, PN 25
003H1835
Adapter M34 / M30 5mm for VIS 2#
003H6877
Valve Inserts, For product type: VGS, PN 25
003H6904
Thread tailpieces, PN 25, DN 25, R 1; G 1 1/4, External Thread
003H6910
Weld-on tailpieces, PN 25, DN 25, G 1 1/4
003H6917
Flange tailpieces, PN 25, DN 25, G 1 1/4
003H6927
Adapter M34 / M45
065-0600
AVT, -10 °C - 40 °C, 210 mm, 5.0 m
065-0601
AVT, 20 °C - 70 °C, 210 mm, 5.0 m
065-0602
AVT, 40 °C - 90 °C, 210 mm, 5.0 m
065-0603
AVT, 60 °C - 110 °C, 210 mm, 5.0 m
