065B0792

Part Number: 065B0792
065B0792
Manufacturer
Danfoss
Part number
065B0792
Category

Product Information

Extended Description

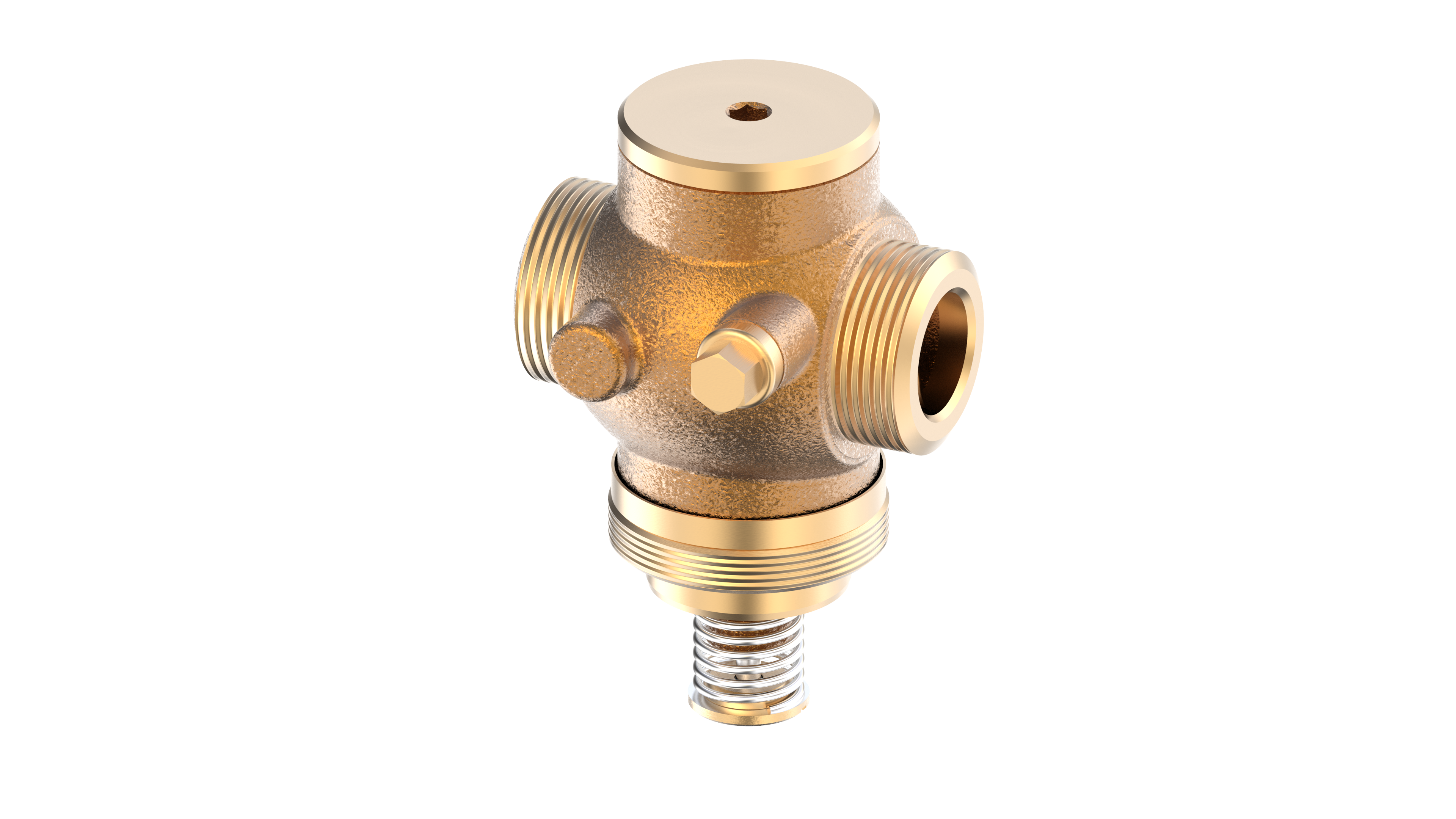

065B0792 Danfoss: VGU PN25 20/6,3 2-way thread flow/ret
Gross weight
0.856 Kilogram
Net weight
0.856 Kilogram
Volume
0.825 Liter
EAN
5702421543740
Application
Cooling
Cavitation factor
0.6
China RoHS compliance
Out of scope
Connection size
G 1 A
Connection standard
ISO 228/1
Connection types
External Thread
Contain batteries
No
Description
VGU PN25 20/6,3 2-way thread flow/ret
Diameter [mm]
20 mm
Differential pressure range [bar] [Max]
20 bar
EU RoHS compliance
Out of scope
Flow characteristic
Approx. linear
Function
Control valve
Kvs values [mÂł/h]
6.3 mÂł/h
Leakage through port max. [% Kvs]
0.05
Media pH [Max]
10
Media pH [Min]
7
Media temperature [°C] [Max]
150 °C
Media temperature [°C] [Min]
2 °C
Medium alternative
Glycolic water up to 30%
Mounting version
Free
Number of ports
2
Permissible media
District heating/cooling circulation water
PN alternative VSP
16
Pressure class
PN 25
Pressure nominal [bar]
25 bar
Pressure relieve system
Piston
Product group
Motorized control valves
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Sealing material
EPDM
Spindle position
Normally closed
Stroke [mm]
5 mm
Type
VGU
UK RoHS compliance
Out of scope
Valve body material
Red bronze, mat. No. 2.1096.1 (RG5)
Valve cone material
DZR brass CuZn36Pb2AS (CW 602N)
Valve seat material
Stainless steel, mat. No. 1.4571
Valve size
DN 20
003H6903
Thread tailpieces, PN 25, DN 20, R 3/4; G 1, External Thread
003H6909
Weld-on tailpieces, PN 25, DN 20, G 1
003H6916
Flange tailpieces, PN 25, DN 20, G 1
003H6928
Adapter M45 / M30
065-0596
AVT, -10 °C - 40 °C, 170 mm, 5.0 m
065-0597
AVT, 20 °C - 70 °C, 170 mm, 5.0 m
065-0598
AVT, 40 °C - 90 °C, 170 mm, 5.0 m
065-0599
AVT, 60 °C - 110 °C, 170 mm, 5.0 m
065B0792
VGU, PN 25, DN 20, 6.30 mÂł/h, G 1 A
