065B0796

Part Number: 065B0796
065B0796
Manufacturer
Danfoss
Part number
065B0796
Category

Product Information

Extended Description

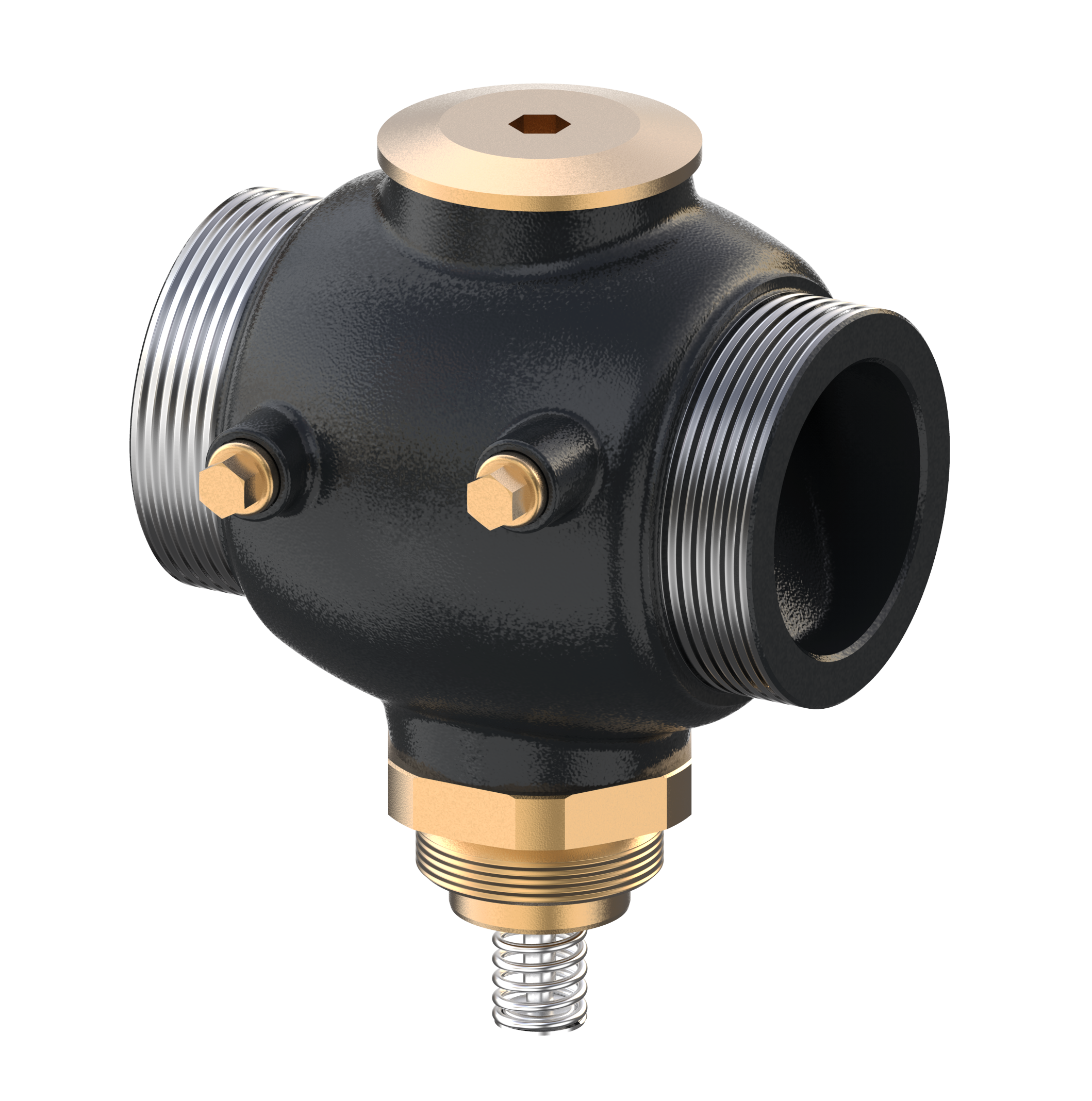

065B0796 Danfoss: VGU PN25 50/20 2-way thread flow/ret
Gross weight
4.045 Kilogram
Net weight
4.045 Kilogram
Volume
4.946 Liter
EAN
5702421543788
Application
Cooling
Cavitation factor
0.6
China RoHS compliance
Out of scope
Connection size
G 2 1/2 A
Connection standard
ISO 228/1
Connection types
External Thread
Contain batteries
No
Description
VGU PN25 50/20 2-way thread flow/ret
Diameter [mm]
50 mm
Differential pressure range [bar] [Max]
16 bar
EU RoHS compliance
Out of scope
Flow characteristic
Approx. linear
Function
Control valve
Kvs values [mÂł/h]
20 mÂł/h
Leakage through port max. [% Kvs]
0.05
Media pH [Max]
10
Media pH [Min]
7
Media temperature [°C] [Max]
150 °C
Media temperature [°C] [Min]
2 °C
Medium alternative
Glycolic water up to 30%
Mounting version
Free
Number of ports
2
Permissible media
District heating/cooling circulation water
PN alternative VSP
16
Pressure class
PN 25
Pressure nominal [bar]
25 bar
Pressure relieve system
Piston
Product group
Motorized control valves
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Sealing material
EPDM
Spindle position
Normally closed
Stroke [mm]
5 mm
Type
VGU
UK RoHS compliance
Out of scope
Valve body material
Ductile cast iron EN-GJS-400-18-LT (GGG 40.3)
Valve cone material
DZR brass CuZn36Pb2AS (CW 602N)
Valve seat material
Stainless steel, mat. No. 1.4571
Valve size
DN 50
003H6913
Weld-on tailpieces, PN 25, DN 50, G 2 1/2
003H6928
Adapter M45 / M30
065-0600
AVT, -10 °C - 40 °C, 210 mm, 5.0 m
065-0601
AVT, 20 °C - 70 °C, 210 mm, 5.0 m
065-0602
AVT, 40 °C - 90 °C, 210 mm, 5.0 m
065-0603
AVT, 60 °C - 110 °C, 210 mm, 5.0 m
