065B0797

Part Number: 065B0797
065B0797
Manufacturer
Danfoss
Part number
065B0797
Category

Product Information

Extended Description

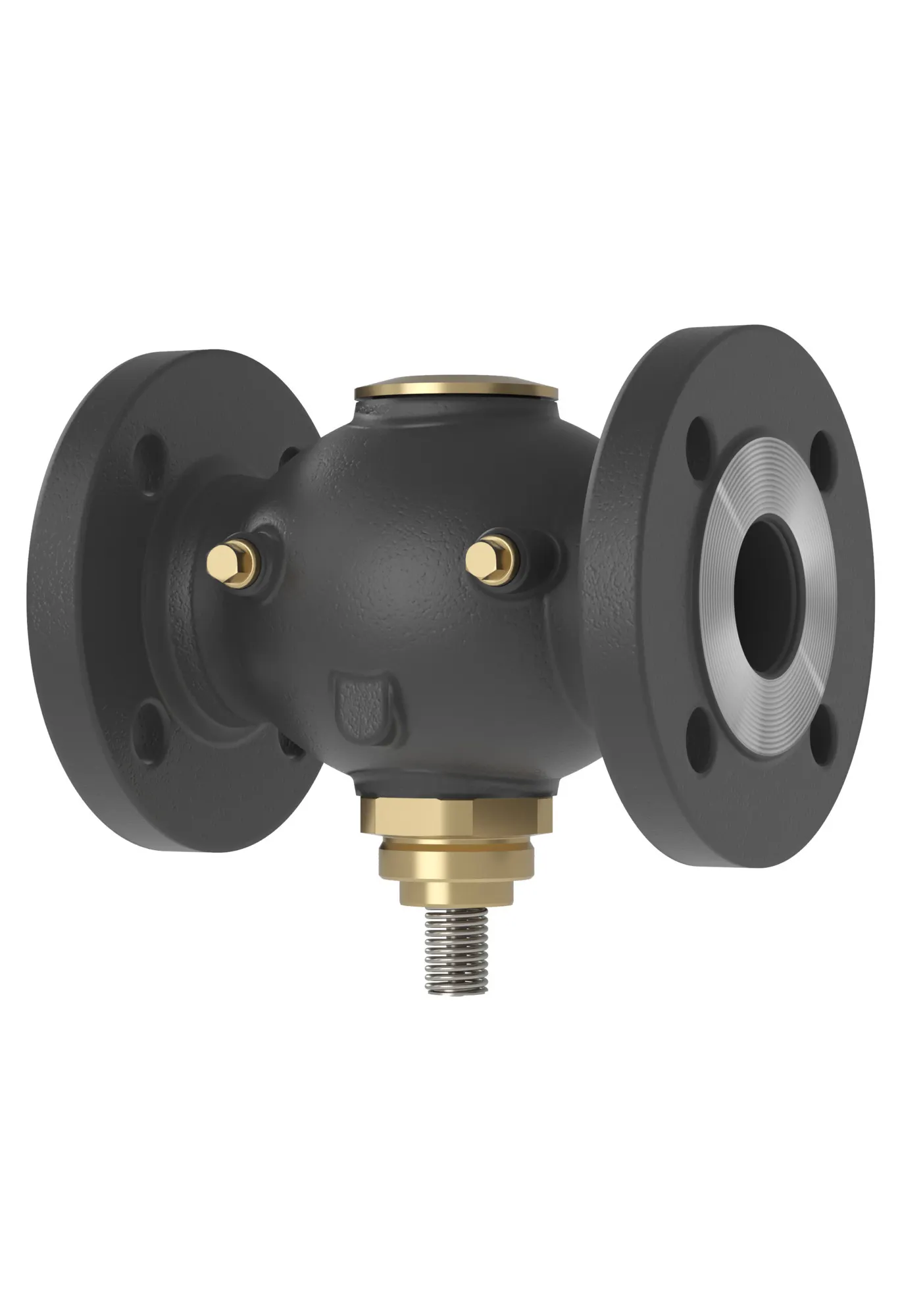

065B0797 Danfoss: VGUF PN25 32/12,5 2-way flange flow/ret
Gross weight
8.126 Kilogram
Net weight
8.126 Kilogram
Volume
14.256 Liter
EAN
5702421543795
Application
Cooling
Cavitation factor
0.6
China RoHS compliance
Out of scope
Connection size
32
Connection standard
EN 1092-2
Connection types
Flange
Contain batteries
No
Description
VGUF PN25 32/12,5 2-way flange flow/ret
Diameter [mm]
32 mm
Differential pressure range [bar] [Max]
16 bar
EU RoHS compliance
Out of scope
Flow characteristic
Approx. linear
Function
Control valve
Kvs values [mÂł/h]
12.5 mÂł/h
Leakage through port max. [% Kvs]
0.05
Media pH [Max]
10
Media pH [Min]
7
Media temperature [°C] [Max]
150 °C
Media temperature [°C] [Min]
2 °C
Medium alternative
Glycolic water up to 30%
Mounting version
Free
Number of ports
2
Permissible media
District heating/cooling circulation water
PN alternative VSP
16
Pressure class
PN 25
Pressure nominal [bar]
25 bar
Pressure relieve system
Piston
Product group
Motorized control valves
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Sealing material
EPDM
Spindle position
Normally closed
Stroke [mm]
5 mm
Type
VGUF
UK RoHS compliance
Out of scope
Valve body material
Ductile cast iron EN-GJS-400-18-LT (GGG 40.3)
Valve cone material
DZR brass CuZn36Pb2AS (CW 602N)
Valve seat material
Stainless steel, mat. No. 1.4571
Valve size
DN 32
003H6928
Adapter M45 / M30
065-0600
AVT, -10 °C - 40 °C, 210 mm, 5.0 m
065-0601
AVT, 20 °C - 70 °C, 210 mm, 5.0 m
065-0602
AVT, 40 °C - 90 °C, 210 mm, 5.0 m
065-0603
AVT, 60 °C - 110 °C, 210 mm, 5.0 m
