065B2391

Part Number: 065B2391
065B2391
Manufacturer
Danfoss
Part number
065B2391
Category

Product Information

Extended Description

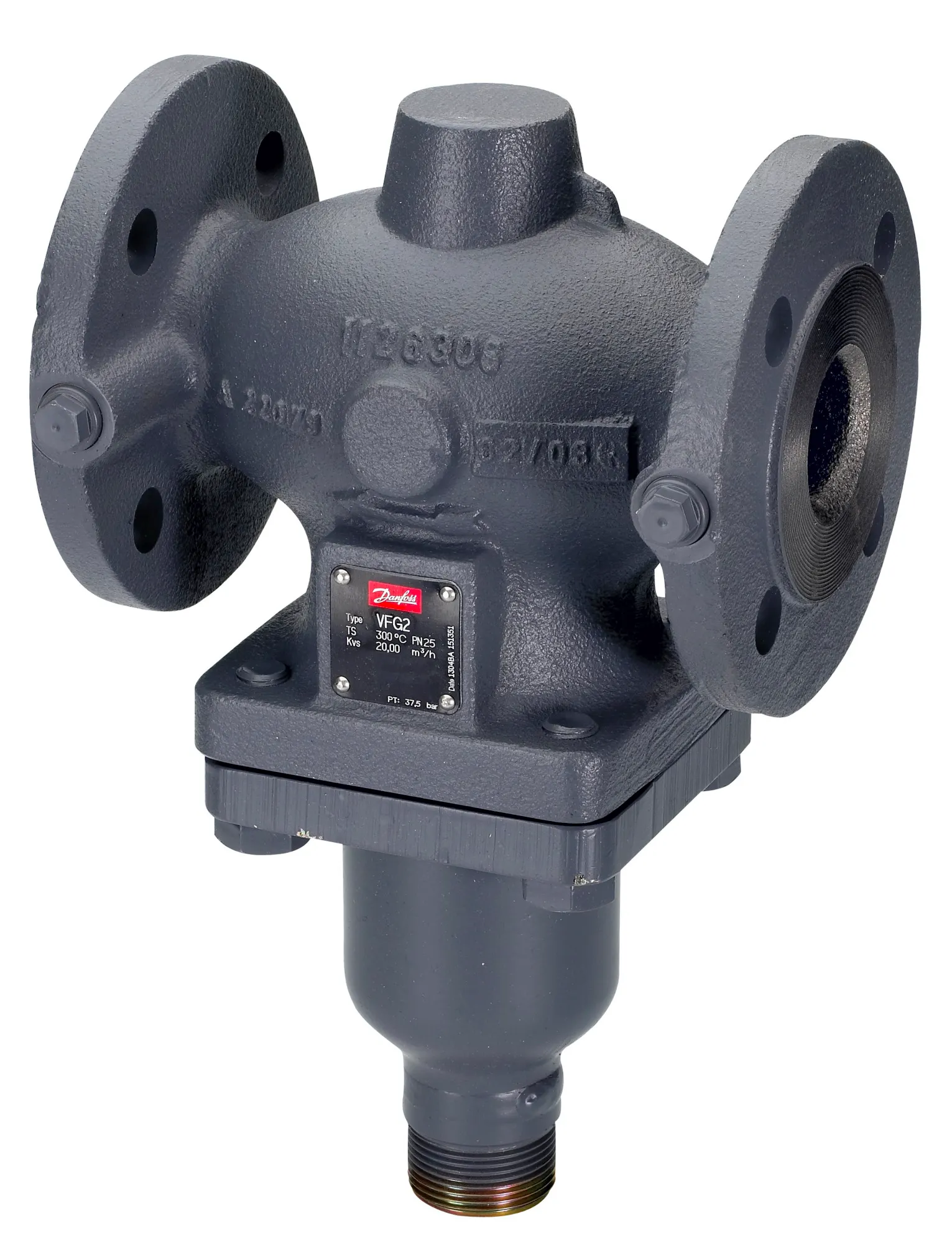

065B2391 Danfoss: VFG2 PN16 32/16 2-way flange flow/return
Gross weight
13 Kilogram
Net weight
11.88 Kilogram
Volume
20.912 Liter
EAN
5702421803080
Application
District Heating
Cavitation factor
0.55
Cavitation factor 100%
0.38
Cavitation factor 25%
0.64
Cavitation factor 50%
0.57
Cavitation factor 75%
0.55
China RoHS compliance
Out of scope
Connection types
Flange
Contain batteries
No
Description
VFG2 PN16 32/16 2-way flange flow/return
Diameter [mm]
32 mm
Differential pressure range [bar] [Max]
16 bar
EU RoHS compliance
Out of scope
Flow characteristic
Linear optimized
Function
Pressure relief
Kvs values [mÂł/h]
16 mÂł/h
Leakage through port max. [% Kvs]
0.03
Media pH [Max]
10
Media pH [Min]
7
Media temperature [°C] [Max]
200 °C
Media temperature [°C] [Min]
2 °C
Medium alternative
Glycolic water up to 30%
Mounting version
Free
Number of ports
2
Permissible media
District heating/cooling circulation water
Pressure class
PN 16
Pressure nominal [bar]
16 bar
Product group
Pressure flow controllers
REACH Candidate List substances
No
Spindle position
Normally open
Stroke [mm]
9 mm
Type
VFG 2
UK RoHS compliance
Out of scope
Valve body material
Grey cast iron EN-GJL-250 (GG-25)
Valve cone material
Stainless steel, mat. No. 1.4404
Valve seat material
Stainless steel, mat. No. 1.4021
Valve size
DN 32
003G1464
Stuffing cone fi12 incl. EPDM O-rings,AF
065B2798
Valve Inserts, For product type: VFG/Q/U/QM, PN 40, DN 25/32
003G1000
AFD, PN 25, 8.00 bar - 16.00 bar, 32 cm², Black
003G1001
AFD, PN 25, 3.00 bar - 12.00 bar, 32 cm², Red
003G1002
AFD, PN 25, 1.00 bar - 6.00 bar, 80 cm², Red
003G1003
AFD, PN 25, 0.50 bar - 3.00 bar, 80 cm², Yellow
003G1004
AFD, PN 25, 0.10 bar - 0.70 bar, 250 cm², Yellow
003G1005
AFD, PN 25, 0.15 bar - 1.50 bar, 250 cm², Red
003G1006
AFD, PN 25, 0.05 bar - 0.40 bar, 630 cm², Yellow
003G1007
AFA, PN 25, 10.00 bar - 16.00 bar, 32 cm², Black
003G1008
AFA, PN 25, 3.00 bar - 11.00 bar, 32 cm², Silver
003G1009
AFA, PN 25, 1.00 bar - 5.00 bar, 80 cm², Silver
