065B2424

Part Number: 065B2424
065B2424
Manufacturer
Danfoss
Part number
065B2424
Category

Product Information

Extended Description

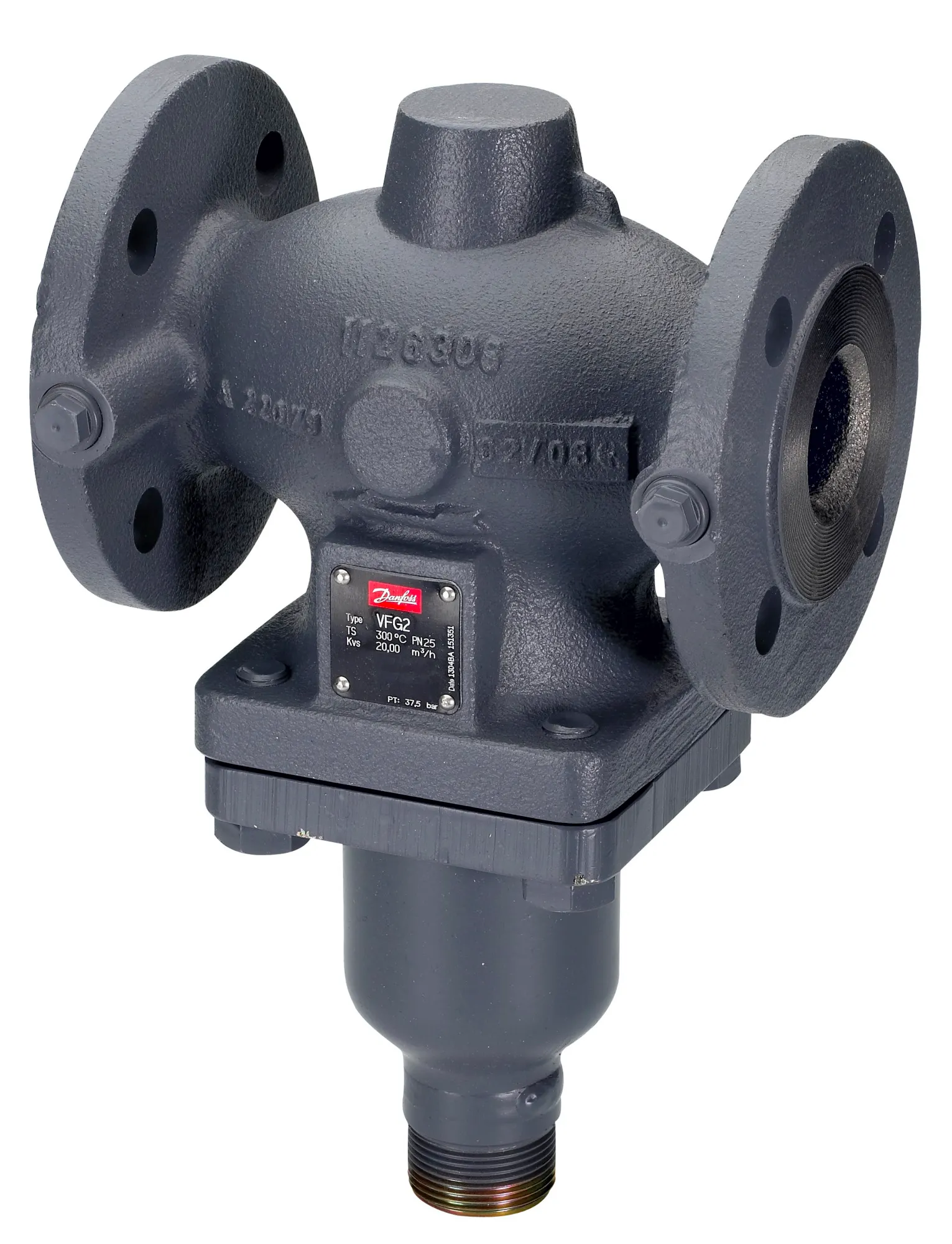

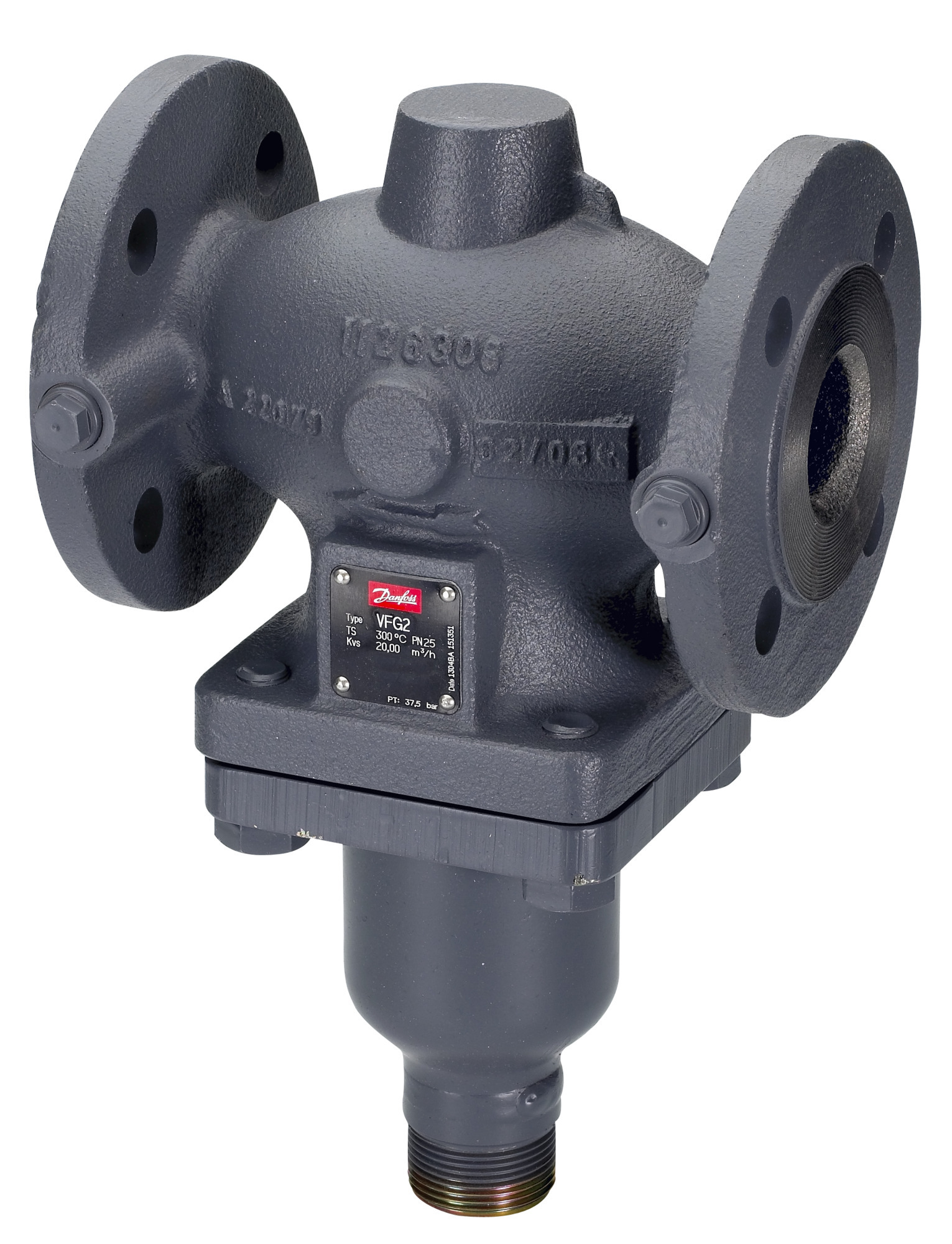

065B2424 Danfoss: VFG2 PN16 150/280 2-way flange flow/ret
Gross weight
199 Kilogram
Net weight
199 Kilogram
Volume
968.32 Liter
EAN
5702421803417
Application
District Heating
Application alternative VSP
District heating
Cavitation factor
0.3
Cavitation factor 100%
0.2
Cavitation factor 25%
0.45
Cavitation factor 50%
0.37
Cavitation factor 75%
0.3
China RoHS compliance
Out of scope
Connection types
Flange
Contain batteries
No
Description
VFG2 PN16 150/280 2-way flange flow/ret
Diameter [mm]
150 mm
Differential pressure range [bar] [Max]
12 bar
EU RoHS compliance
Out of scope
Flow characteristic
Linear optimized
Function
Pressure relief
Kvs values [mÂł/h]
280 mÂł/h
Leakage through port max. [% Kvs]
0.05
Media pH [Max]
10
Media pH [Min]
7
Media temperature [°C] [Max]
150 °C
Media temperature [°C] [Min]
2 °C
Medium alternative
Glycolic water up to 30%
Mounting version
Free
Number of ports
2
Permissible media
District heating/cooling circulation water
Pressure class
PN 16
Pressure nominal [bar]
16 bar
Product group
Pressure flow controllers
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
6207cef2-a1bf-4cd8-a867-a70e2a072201
SCIP dossier product name
VFG DN150-250 - 2
Spindle position
Normally open
Stroke [mm]
24 mm
Type
VFG 2
UK RoHS compliance
Out of scope
Valve body material
Grey cast iron EN-GJL-250 (GG-25)
Valve cone material
Stainless steel, mat. No. 1.4021
Valve seat material
Stainless steel, mat. No. 1.4313
Valve size
DN 150
003G1464
Stuffing cone fi12 incl. EPDM O-rings,AF
003G1016
AFP, PN 25, 0.15 bar - 1.50 bar, 250 cm², Red
003G1017
AFP, PN 25, 0.10 bar - 0.70 bar, 250 cm², Yellow
003G1018
AFP, PN 16, 0.05 bar - 0.35 bar, 630 cm², Yellow
003G1393
Stem extension ZF 6, AF range, DN 15-125
003G1394
Stem extension ZF 4, AF range, DN 15-125
003G1395
Stem extension ZF 4, FKM, AF range, DN 15-125
003G1396
Stem extension ZF 5, AF range, DN 15-125
003G1440
Combination pieces KF2 2 x G 1 1/4"
003G1441
Combination pieces KF3, 2 x G 1 1/4"
