065B2440

Part Number: 065B2440
065B2440
Manufacturer
Danfoss
Part number
065B2440
Category

Product Information

Extended Description

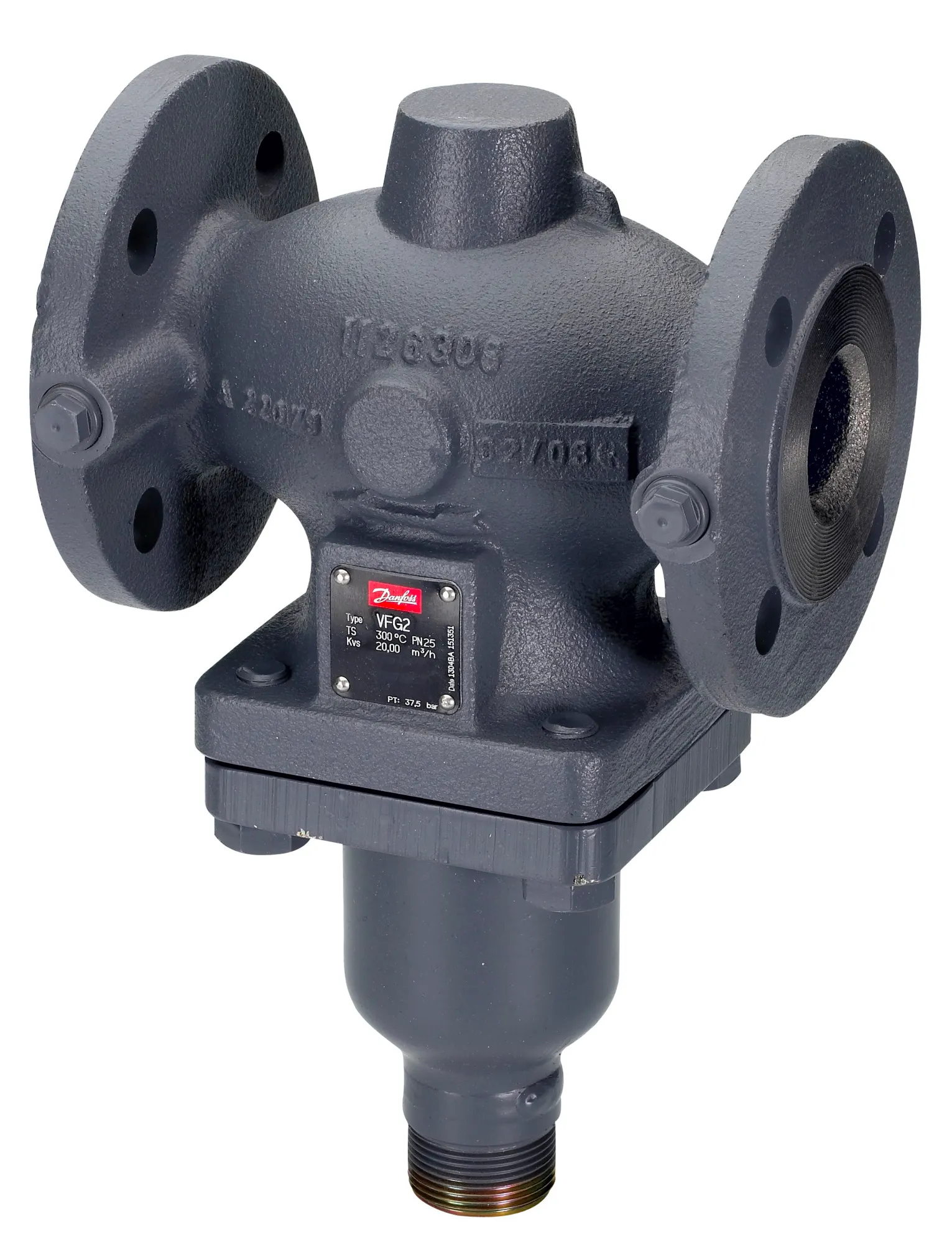

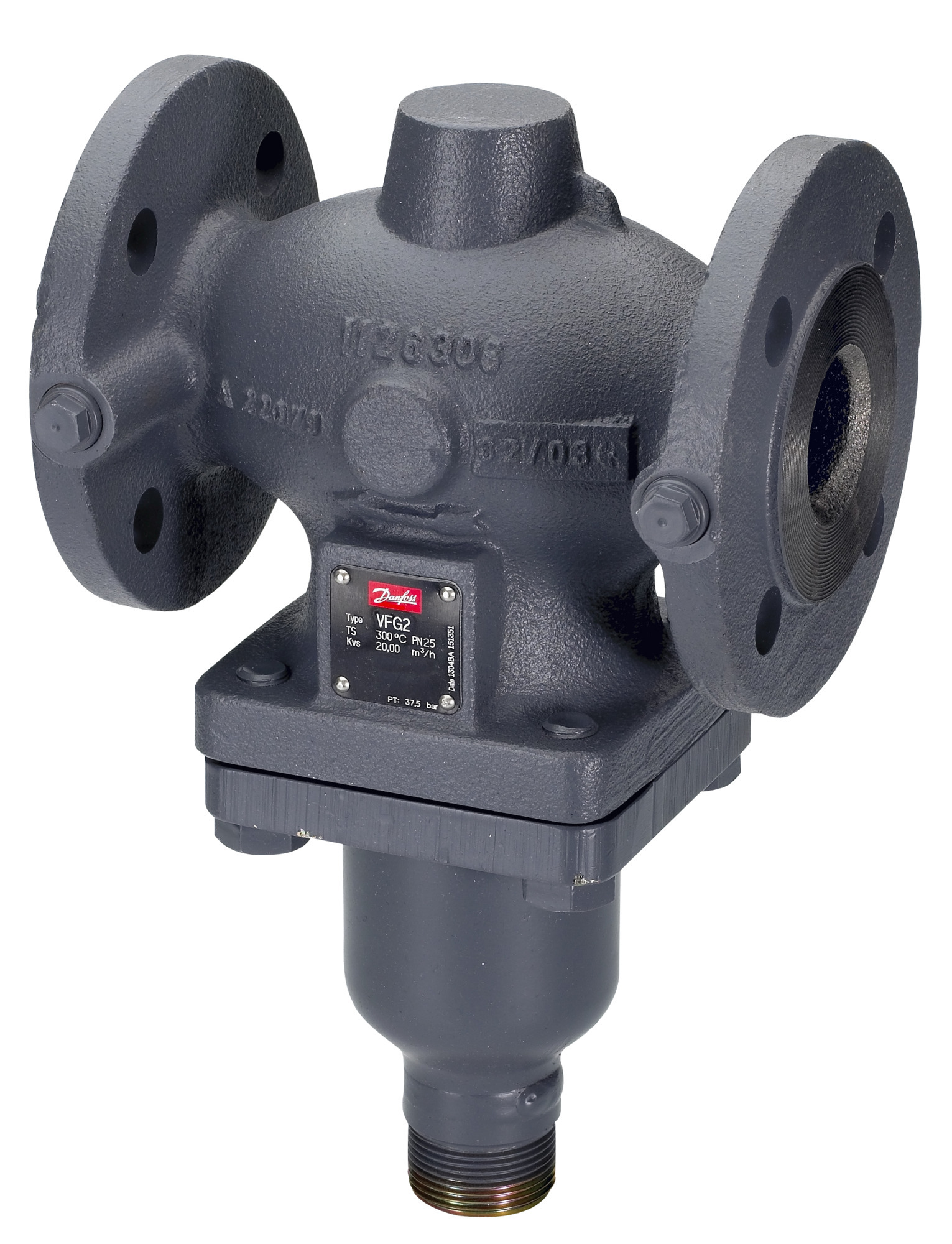

065B2440 Danfoss: VFGS2 PN16 150/280 2-way flange flow/ret
Gross weight
199 Kilogram
Net weight
199 Kilogram
Volume
643.2 Liter
EAN
5702421803578
Application
Steam
Cavitation factor
0.3
China RoHS compliance
Out of scope
Connection types
Flange
Contain batteries
No
Description
VFGS2 PN16 150/280 2-way flange flow/ret
Diameter [mm]
150 mm
Differential pressure range [bar] [Max]
12 bar
EU RoHS compliance
Out of scope
Flow characteristic
Linear optimized
Function
Pressure relief
Kvs values [mÂł/h]
280 mÂł/h
Leakage through port max. [% Kvs]
0.05
Media pH [Max]
10
Media pH [Min]
7
Media temperature [°C] [Max]
300 °C
Media temperature [°C] [Min]
2 °C
Medium alternative
Circulation water
Mounting version
Free
Number of ports
2
Permissible media
Steam
Pressure class
PN 16
Pressure nominal [bar]
16 bar
Product group
Pressure flow controllers
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Spindle position
Normally open
Stroke [mm]
24 mm
Type
VFGS 2
UK RoHS compliance
Out of scope
Valve body material
Grey cast iron EN-GJL-250 (GG-25)
Valve cone material
Stainless steel, mat. No. 1.4313
Valve seat material
Stainless steel, mat. No. 1.4021
Valve size
DN 150
003G1464
Stuffing cone fi12 incl. EPDM O-rings,AF
003G1004
AFD, PN 25, 0.10 bar - 0.70 bar, 250 cm², Yellow
003G1005
AFD, PN 25, 0.15 bar - 1.50 bar, 250 cm², Red
003G1006
AFD, PN 25, 0.05 bar - 0.40 bar, 630 cm², Yellow
003G1393
Stem extension ZF 6, AF range, DN 15-125
003G1394
Stem extension ZF 4, AF range, DN 15-125
003G1395
Stem extension ZF 4, FKM, AF range, DN 15-125
003G1396
Stem extension ZF 5, AF range, DN 15-125
003G1413
AFD, PN 25, 1.00 bar - 6.00 bar, 160 cm², Blue
003G1440
Combination pieces KF2 2 x G 1 1/4"
003G1441
Combination pieces KF3, 2 x G 1 1/4"
