065B2441

Part Number: 065B2441
065B2441
Manufacturer
Danfoss
Part number
065B2441
Category

Product Information

Extended Description

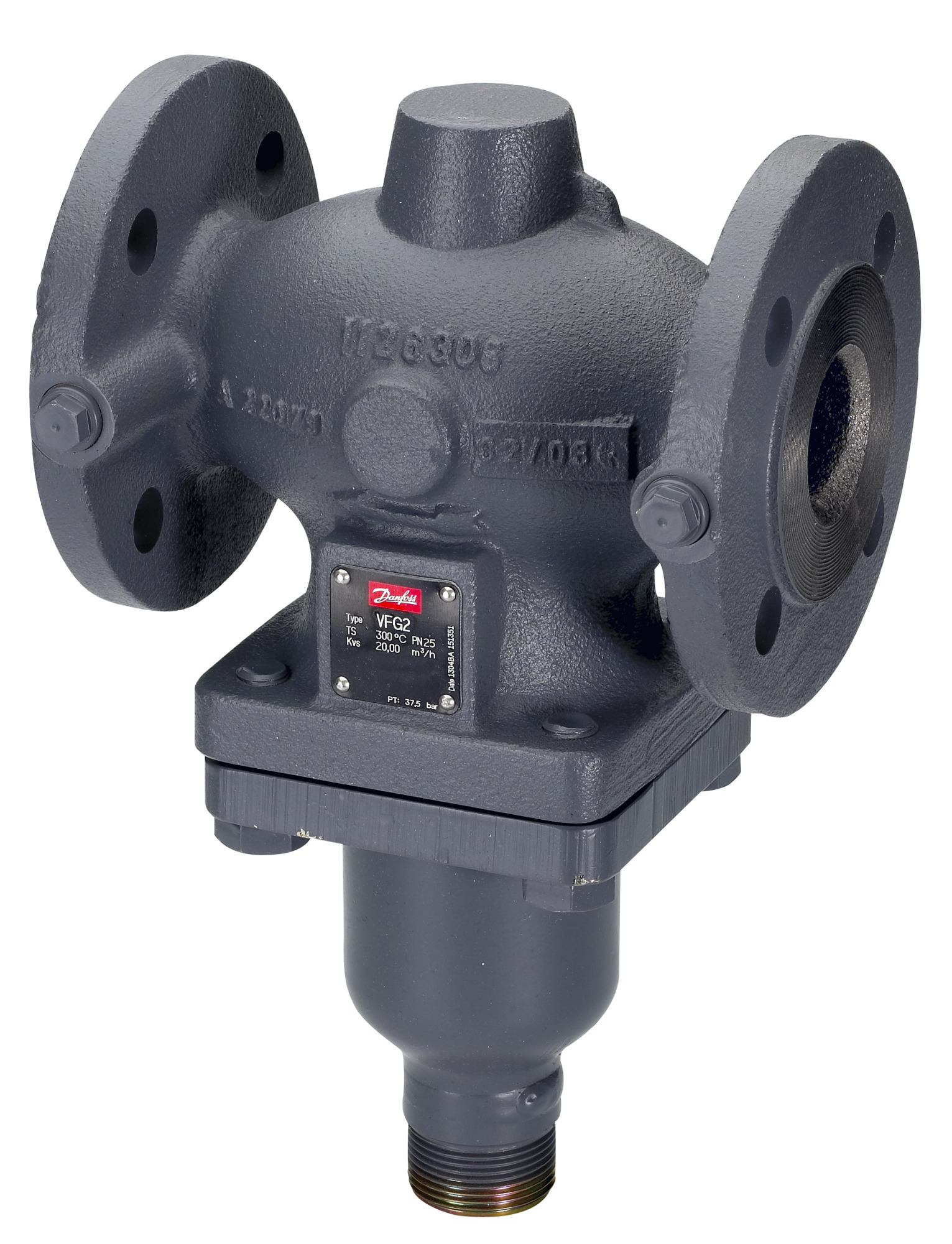

065B2441 Danfoss: VFGS2 PN16 200/320 2-way flange flow/ret
Gross weight
352 Kilogram
Net weight
352 Kilogram
Volume
979.2 Liter
EAN
5702421803585
Application
Steam
Cavitation factor
0.2
China RoHS compliance
Out of scope
Connection types
Flange
Contain batteries
No
Description
VFGS2 PN16 200/320 2-way flange flow/ret
Diameter [mm]
200 mm
Differential pressure range [bar] [Max]
10 bar
EU RoHS compliance
Out of scope
Flow characteristic
Linear optimized
Function
Pressure relief
Kvs values [mÂł/h]
320 mÂł/h
Leakage through port max. [% Kvs]
0.05
Media pH [Max]
10
Media pH [Min]
7
Media temperature [°C] [Max]
300 °C
Media temperature [°C] [Min]
2 °C
Medium alternative
Circulation water
Mounting version
Free
Number of ports
2
Permissible media
Steam
Pressure class
PN 16
Pressure nominal [bar]
16 bar
Product group
Pressure flow controllers
Spindle position
Normally open
Stroke [mm]
24 mm
Type
VFGS 2
UK RoHS compliance
Out of scope
Valve body material
Grey cast iron EN-GJL-250 (GG-25)
Valve cone material
Stainless steel, mat. No. 1.4313
Valve seat material
Stainless steel, mat. No. 1.4021
Valve size
DN 200
003G1464
Stuffing cone fi12 incl. EPDM O-rings,AF
003G1004
AFD, PN 25, 0.10 bar - 0.70 bar, 250 cm², Yellow
003G1005
AFD, PN 25, 0.15 bar - 1.50 bar, 250 cm², Red
003G1006
AFD, PN 25, 0.05 bar - 0.40 bar, 630 cm², Yellow
003G1393
Stem extension ZF 6, AF range, DN 15-125
003G1394
Stem extension ZF 4, AF range, DN 15-125
003G1395
Stem extension ZF 4, FKM, AF range, DN 15-125
003G1396
Stem extension ZF 5, AF range, DN 15-125
003G1413
AFD, PN 25, 1.00 bar - 6.00 bar, 160 cm², Blue
003G1440
Combination pieces KF2 2 x G 1 1/4"
003G1441
Combination pieces KF3, 2 x G 1 1/4"
