065B2537
Part Number: 065B2537
Product Information
Extended Description

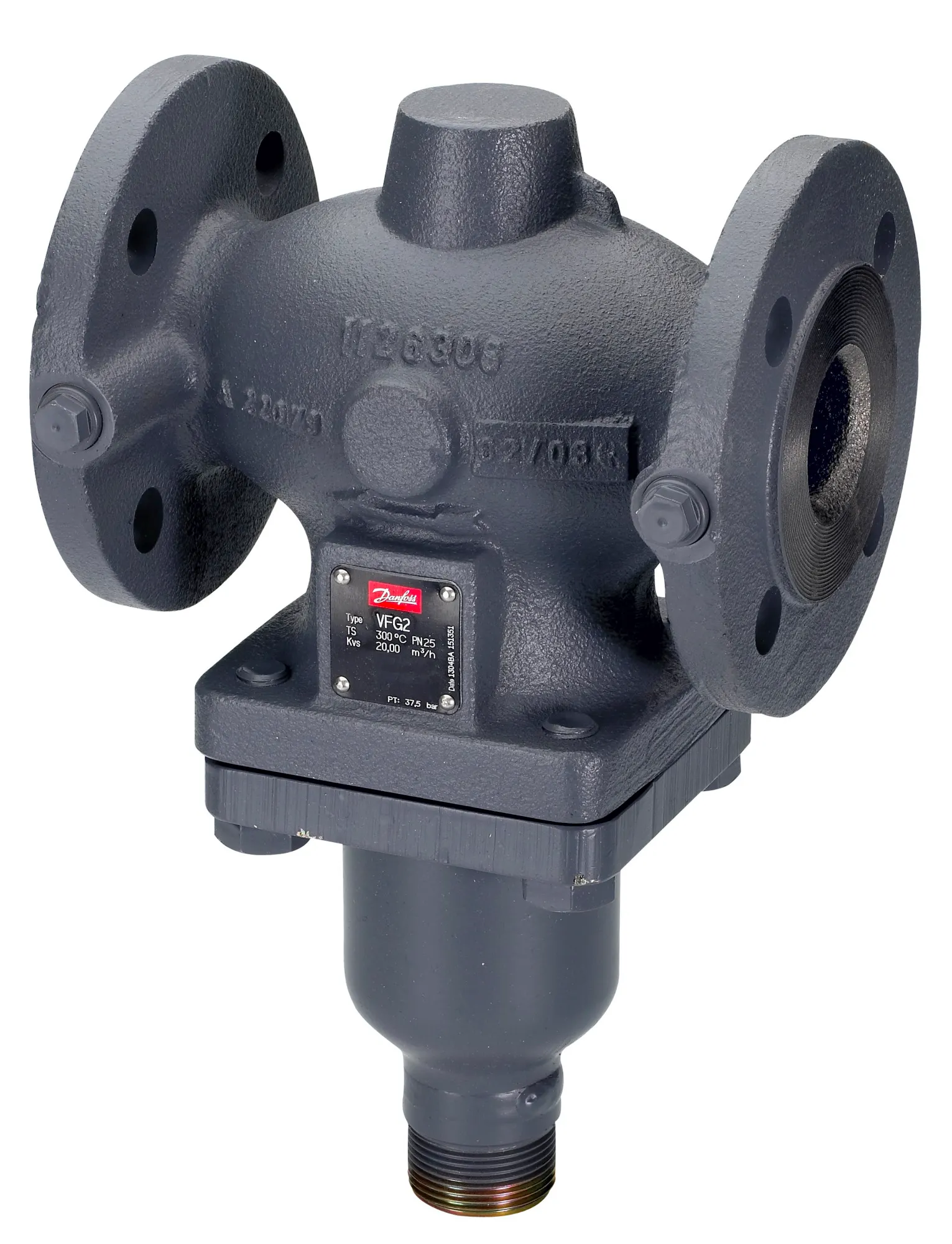

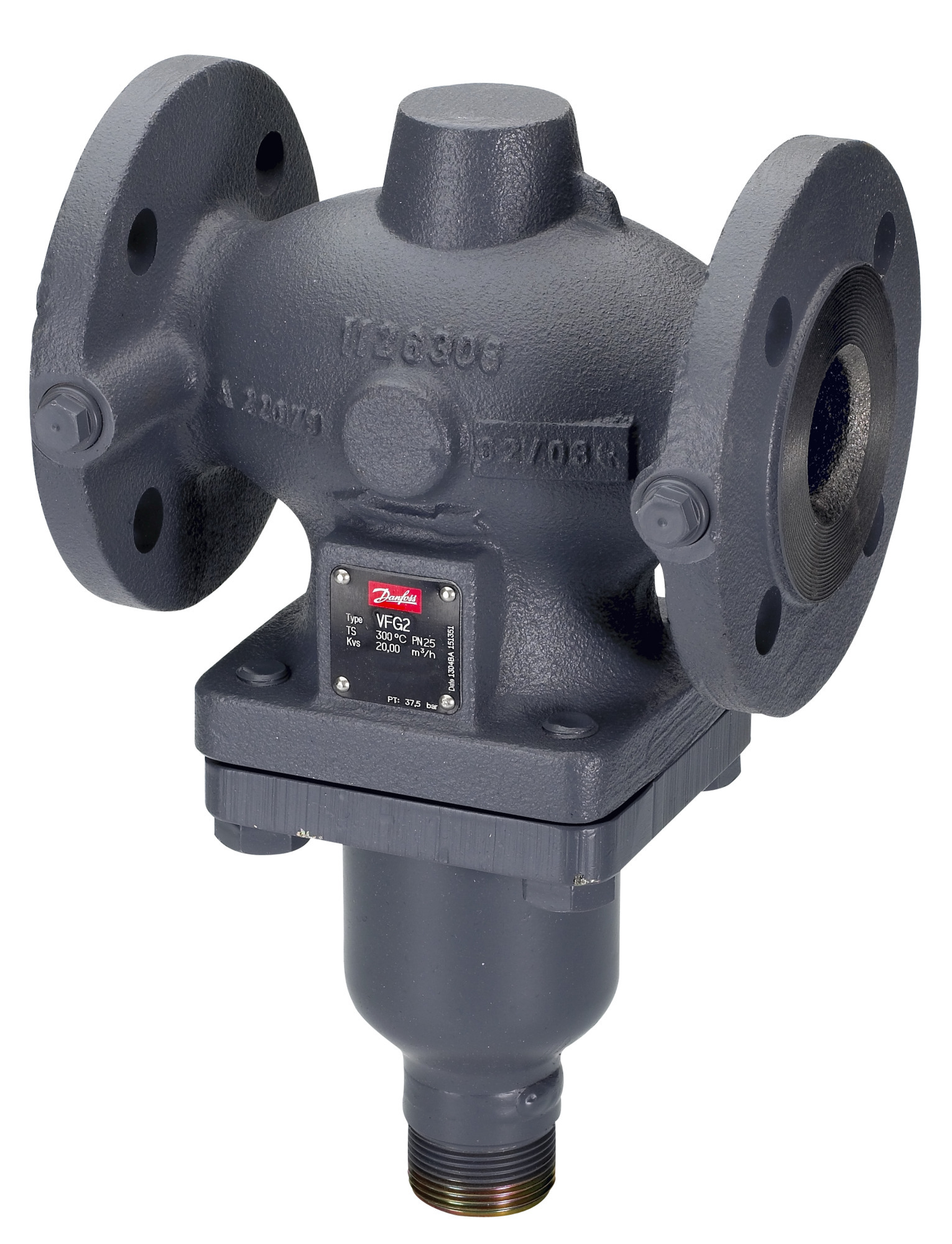

065B2537 Danfoss: VFG21 PN40 250/400 2-way flange flow/ret
Gross weight
220 Kilogram
Net weight
220 Kilogram
Volume
506.1 Liter
EAN
5702421804544
Cavitation factor 100%
0.15
Cavitation factor 25%
0.31
Cavitation factor 50%
0.25
Cavitation factor 75%
0.2
China RoHS compliance
Out of scope
Connection types
Flange
Contain batteries
No
Description
VFG21 PN40 250/400 2-way flange flow/ret
EU RoHS compliance
Out of scope
Kvs values [mÂł/h]
400 mÂł/h
Pressure class
PN 16
Product group
Pressure flow controllers
REACH Candidate List substances
No
Type
VFG 21
UK RoHS compliance
Out of scope
Valve size
DN 250
Making applications future proof, all our knowledge – is now yours
Valve characteristics for motorized valves
Motorized Control Valves for district heating & cooling, heating and HVAC systems
Save energy with efficient and safe steam distribution
VFG / VFGS / VFU
VFG(S) 2 (21/25/27)/VFQ 2 (21), DN15-125
Danfoss EU 230530EN0858104.05
Danfoss EU 230612EN0854103.04
Actuators pressure flow and temperature
BV UKCA-0041-PESR-H-DAF 001-22-FBR
Danfoss UK 230612EN0855102.02
Danfoss UK 230612EN0856102.02
2-way seated valve type VFG 2
VFG2(VFG21)_PN40_DN250_3D
VFG2(VFG21)_PN40_DN250_2D
