065B2612

Part Number: 065B2612
065B2612
Manufacturer
Danfoss
Part number
065B2612
Category

Product Information

Extended Description

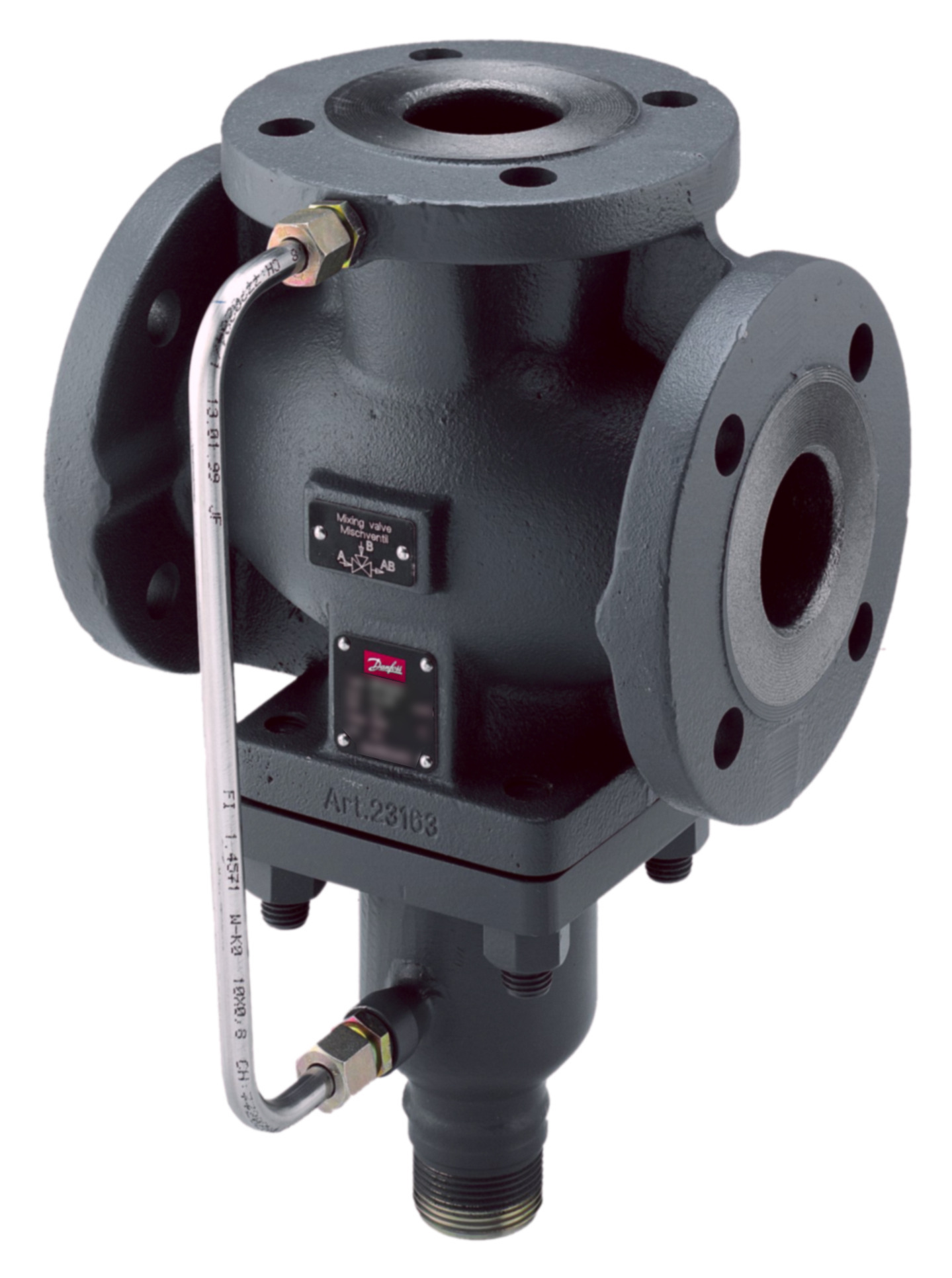

065B2612 Danfoss: VFG33 PN25 100/125 3-way flange flow/ret
Gross weight
100.35 Kilogram
Net weight
84 Kilogram
Volume
216 Liter
EAN
5702421805299
Application
District Heating
Cavitation factor
0.4
China RoHS compliance
Out of scope
Connection types
Flange
Contain batteries
No
Control ratio
1:50
Description
VFG33 PN25 100/125 3-way flange flow/ret
Diameter [mm]
100 mm
Differential pressure range [bar] [Max]
10 bar
EU RoHS compliance
Out of scope
Flow characteristic
Linear
Function
Pressure relief
Function 2
Mixing valve
Kvs values [mÂł/h]
125 mÂł/h
Leakage bypass port max. [% Kvs]
0.05 %
Leakage through port max. [% Kvs]
0.05
Media pH [Max]
10
Media pH [Min]
7
Media temperature [°C] [Max]
200 °C
Media temperature [°C] [Min]
2 °C
Medium alternative
Glycolic water up to 30%
Mounting version
Free
Number of ports
3
Permissible media
District heating/cooling circulation water
Pressure class
PN 25
Pressure nominal [bar]
25 bar
Product group
Motorized control valves
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Spindle position
A-AB: Normally closed
Stroke [mm]
20 mm
Type
VFG 33
UK RoHS compliance
Out of scope
Valve body material
Ductile cast iron EN-GJS-400-18-LT (GGG 40.3)
Valve cone material
Stainless steel, mat. No. 1.4404
Valve seat material
Stainless steel, mat. No. 1.4021
Valve size
DN 100
003G1393
Stem extension ZF 6, AF range, DN 15-125
003G1394
Stem extension ZF 4, AF range, DN 15-125
003G1395
Stem extension ZF 4, FKM, AF range, DN 15-125
003G1396
Stem extension ZF 5, AF range, DN 15-125
003G1440
Combination pieces KF2 2 x G 1 1/4"
003G1441
Combination pieces KF3, 2 x G 1 1/4"
065B2779
Flow dividers, For valves: VFGS2, DN 125; DN 100
