065B2662

Part Number: 065B2662
065B2662
Manufacturer
Danfoss
Part number
065B2662
Category

Product Information

Extended Description

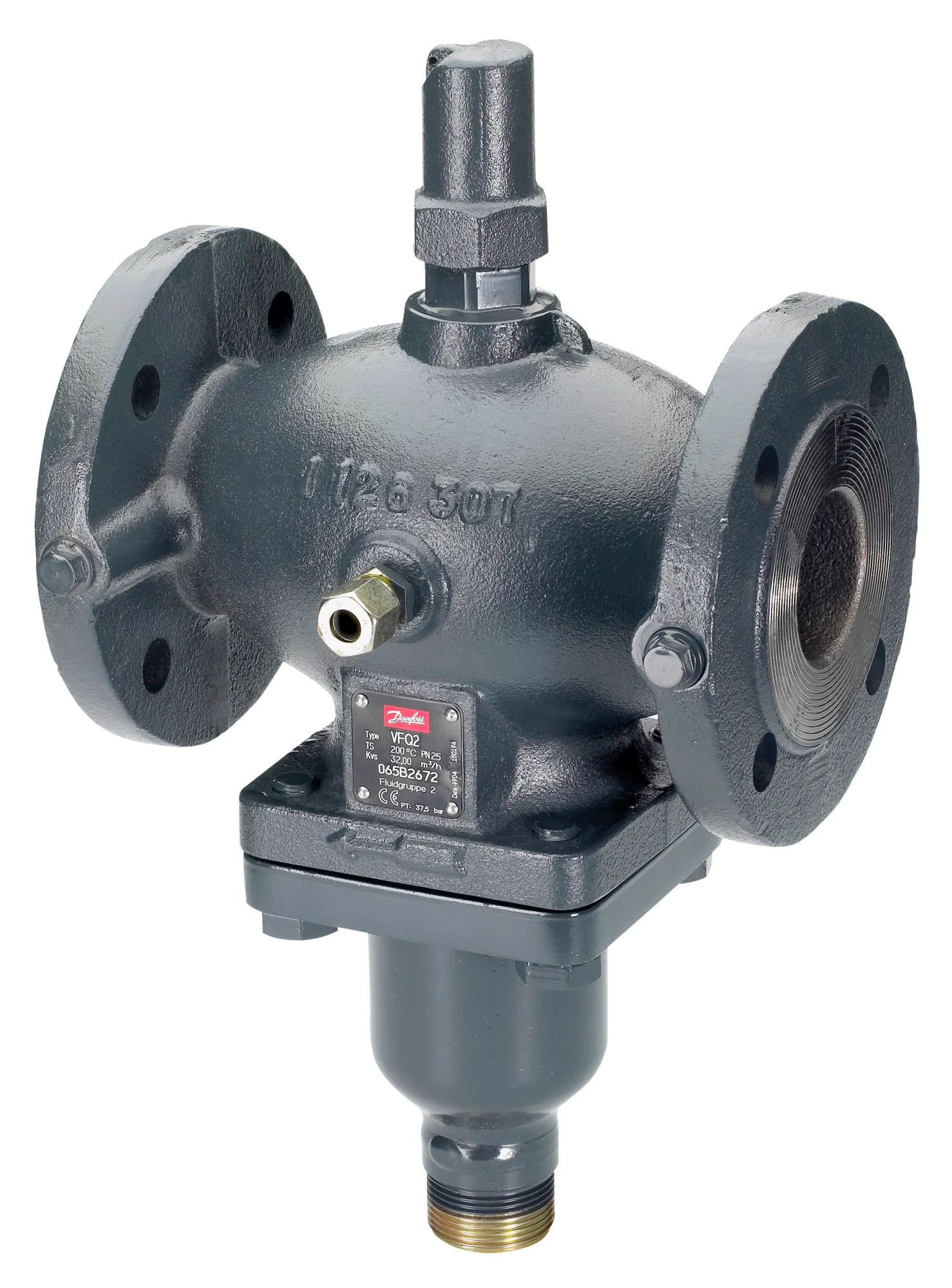

065B2662 Danfoss: VFQ2 PN16 100/125 2-way flange flow/ret
Gross weight
67.8 Kilogram
Net weight
67.8 Kilogram
Volume
90 Liter
EAN
5702421809266
Application
District Heating
Cavitation factor
0.4
Cavitation factor 100%
0.35
Cavitation factor 25%
0.4
Cavitation factor 50%
0.62
Cavitation factor 75%
0.65
China RoHS compliance
Out of scope
Connection types
Flange
Contain batteries
No
Description
VFQ2 PN16 100/125 2-way flange flow/ret
Diameter [mm]
100 mm
Differential pressure range [bar] [Max]
15 bar
EU RoHS compliance
Out of scope
Flow characteristic
Linear optimized
Function
Pressure relief
Kvs values [m³/h]
125 m³/h
Leakage through port max. [% Kvs]
0.03
Media pH [Max]
10
Media pH [Min]
7
Media temperature [°C] [Max]
200 °C
Media temperature [°C] [Min]
2 °C
Medium alternative
Glycolic water up to 30%
Mounting version
Free
Number of ports
2
Permissible media
District heating/cooling circulation water
Pressure class
PN 16
Pressure nominal [bar]
16 bar
Product group
Pressure flow controllers
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Spindle position
Normally open
Stroke [mm]
20 mm
Type
VFQ 2
UK RoHS compliance
Out of scope
Valve body material
Grey cast iron EN-GJL-250 (GG-25)
Valve cone material
Stainless steel, mat. No. 1.4404
Valve size
DN 100
003G1464
Stuffing cone fi12 incl. EPDM O-rings,AF
065B2675
VFQ 2, PN 25, DN 100, 125.00 m³/h, Flange
065B2801
Valve Inserts, For product type: VFG/Q/U/QM, PN 40, DN 100/125
003G1029
AFPQ, PN 40, 0.10 bar - 0.70 bar, 0.20 bar, 250 cm², Yellow
003G1030
AFPQ, PN 40, 0.10 bar - 0.70 bar, 0.50 bar, 250 cm², Yellow
003G1031
AFPQ, PN 40, 0.15 bar - 1.50 bar, 0.20 bar, 250 cm², Red
003G1032
AFPQ, PN 40, 0.15 bar - 1.50 bar, 0.50 bar, 250 cm², Red
003G1033
AFPQ 4, PN 40, 0.10 bar - 0.70 bar, 0.20 bar, 250 cm², Yellow
003G1034
AFPQ 4, PN 40, 0.10 bar - 0.70 bar, 0.50 bar, 250 cm², Yellow
003G1035
AFPQ 4, PN 40, 0.15 bar - 1.50 bar, 0.20 bar, 250 cm², Red
003G1036
AFPQ 4, PN 40, 0.15 bar - 1.50 bar, 0.50 bar, 250 cm², Red
003G1373
Impulse tubes, 10 mm, G 1/4, Stainless steel, For product type: AVPQ, DN 100
003G1386
Impulse tubes, 10 mm, G 1/4, Stainless steel, For product type: AFPQ4, DN 100
