065B2679

Part Number: 065B2679
065B2679
Manufacturer
Danfoss
Part number
065B2679
Category

Product Information

Extended Description

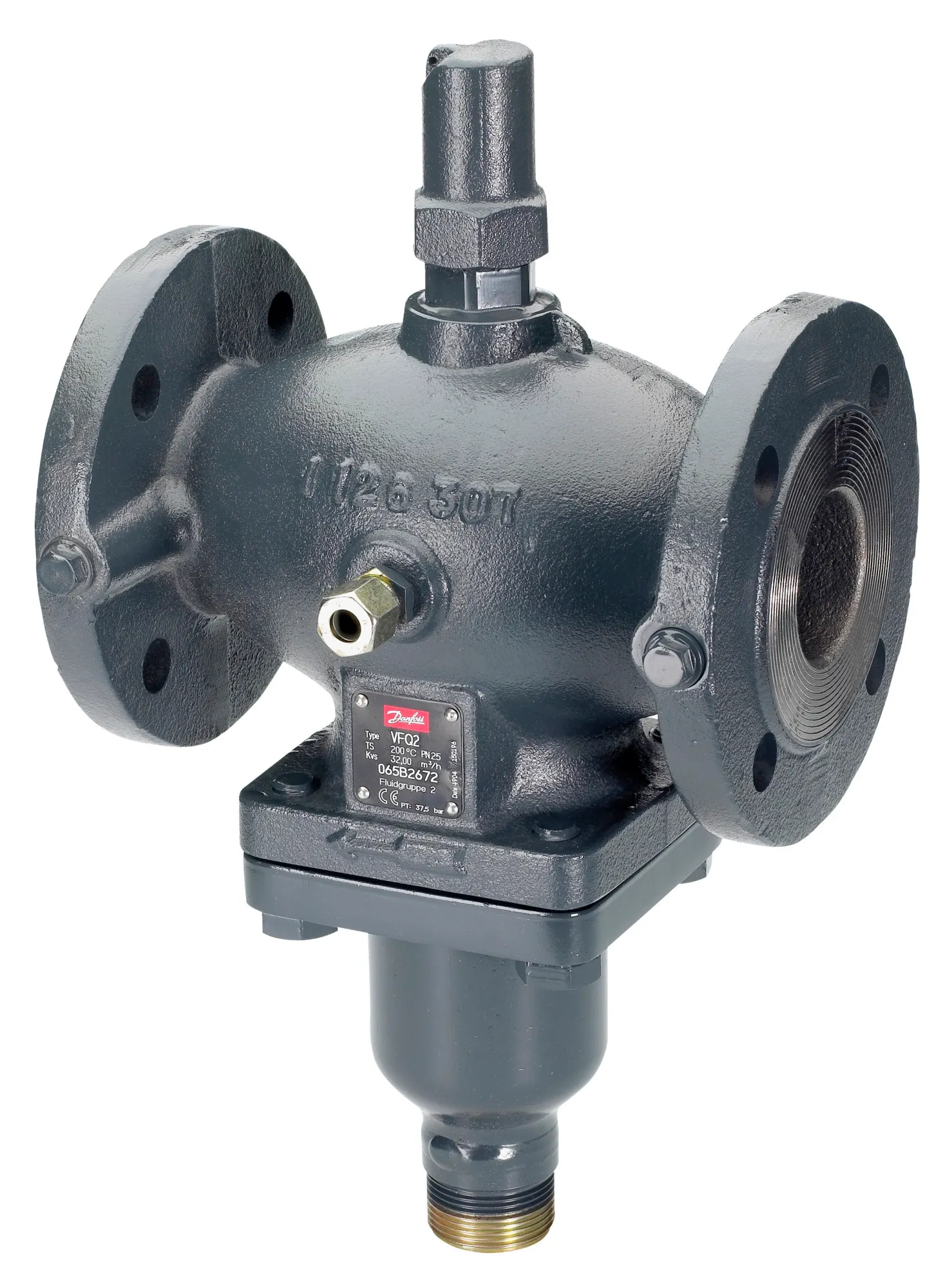

065B2679 Danfoss: VFQ2 PN40 25/8 2-way flange flow/return
Gross weight
11.12 Kilogram
Net weight
10.504 Kilogram
Volume
11.813 Liter
EAN
5702421809433
Application
District Heating
Cavitation factor
0.6
Cavitation factor 100%
0.38
Cavitation factor 25%
0.64
Cavitation factor 50%
0.57
Cavitation factor 75%
0.55
China RoHS compliance
Out of scope
Connection types
Flange
Contain batteries
No
Description
VFQ2 PN40 25/8 2-way flange flow/return
Diameter [mm]
25 mm
Differential pressure range [bar] [Max]
20 bar
EU RoHS compliance
Out of scope
Flow characteristic
Linear optimized
Function
Pressure relief
Kvs values [mÂł/h]
8 mÂł/h
Leakage through port max. [% Kvs]
0.03
Media pH [Max]
10
Media pH [Min]
7
Media temperature [°C] [Max]
200 °C
Media temperature [°C] [Min]
2 °C
Medium alternative
Glycolic water up to 30%
Mounting version
Free
Number of ports
2
Permissible media
District heating/cooling circulation water
Pressure class
PN 40
Pressure nominal [bar]
40 bar
Product group
Pressure flow controllers
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Spindle position
Normally open
Stroke [mm]
6 mm
Type
VFQ 2
UK RoHS compliance
Out of scope
Valve body material
GS-C 25
Valve cone material
Stainless steel, mat. No. 1.4404
Valve size
DN 25
003G1464
Stuffing cone fi12 incl. EPDM O-rings,AF
065B2798
Valve Inserts, For product type: VFG/Q/U/QM, PN 40, DN 25/32
003G1029
AFPQ, PN 40, 0.10 bar - 0.70 bar, 0.20 bar, 250 cm², Yellow
003G1030
AFPQ, PN 40, 0.10 bar - 0.70 bar, 0.50 bar, 250 cm², Yellow
003G1031
AFPQ, PN 40, 0.15 bar - 1.50 bar, 0.20 bar, 250 cm², Red
003G1032
AFPQ, PN 40, 0.15 bar - 1.50 bar, 0.50 bar, 250 cm², Red
003G1033
AFPQ 4, PN 40, 0.10 bar - 0.70 bar, 0.20 bar, 250 cm², Yellow
003G1034
AFPQ 4, PN 40, 0.10 bar - 0.70 bar, 0.50 bar, 250 cm², Yellow
003G1035
AFPQ 4, PN 40, 0.15 bar - 1.50 bar, 0.20 bar, 250 cm², Red
003G1036
AFPQ 4, PN 40, 0.15 bar - 1.50 bar, 0.50 bar, 250 cm², Red
003G1367
Impulse tubes, 10 mm, G 1/4, Stainless steel, For product type: AVPQ, DN 32; DN 25
003G1380
Impulse tubes, 10 mm, G 1/4, Stainless steel, For product type: AFPQ4, DN 32; DN 25
