065B2745

Part Number: 065B2745
065B2745
Manufacturer
Danfoss
Part number
065B2745
Category

Product Information

Extended Description

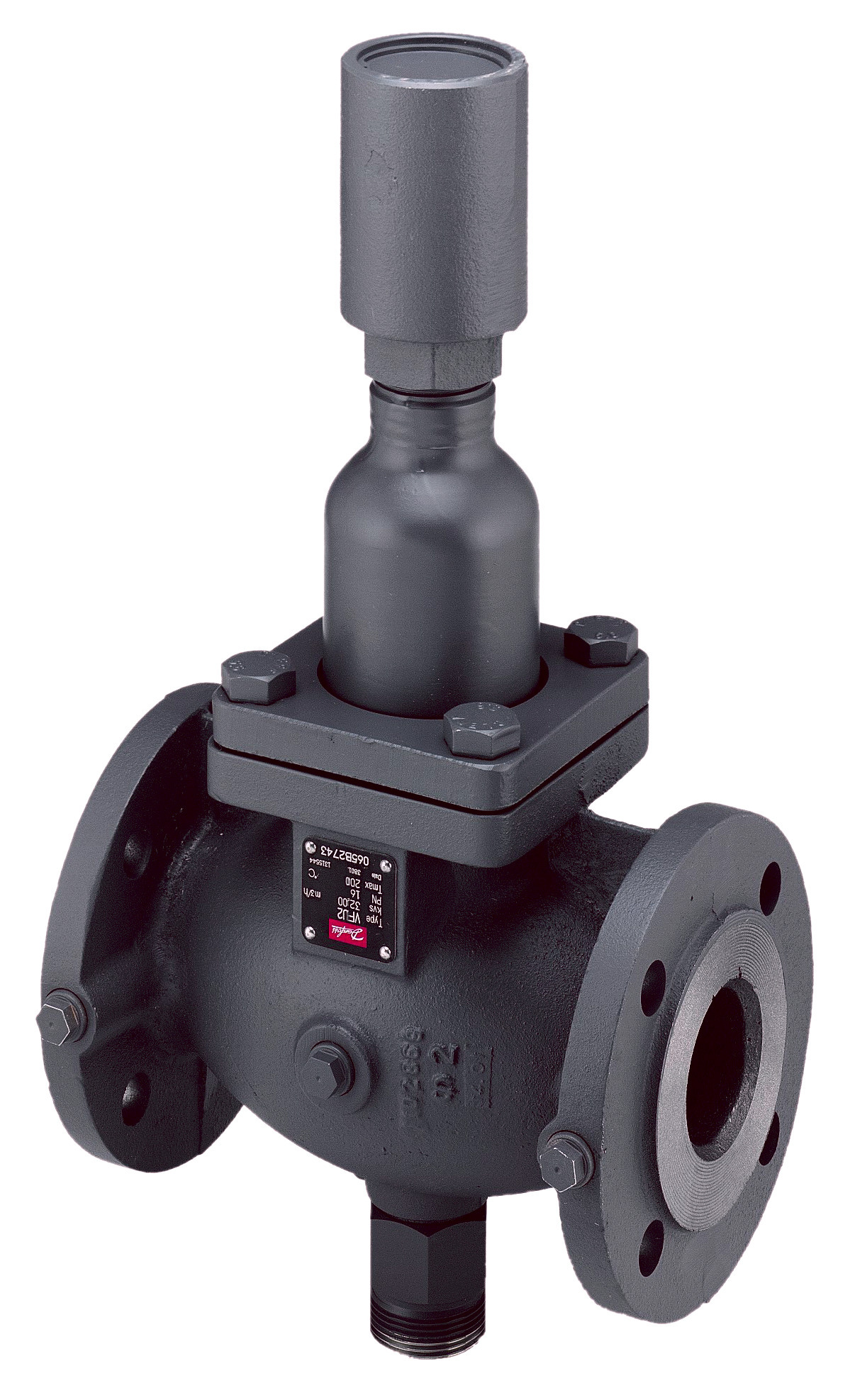

065B2745 Danfoss: VFU2 PN16 80/80 2-way flange flow/return
Gross weight
37.126 Kilogram
Net weight
37.126 Kilogram
Volume
90 Liter
EAN
5702421810095
Application
District Heating
Cavitation factor
0.45
China RoHS compliance
Out of scope
Connection types
Flange
Contain batteries
No
Description
VFU2 PN16 80/80 2-way flange flow/return
Diameter [mm]
80 mm
Differential pressure range [bar] [Max]
16 bar
EU RoHS compliance
Out of scope
Function
Pressure relief
Kvs values [mÂł/h]
80 mÂł/h
Leakage through port max. [% Kvs]
0.03
Media pH [Max]
10
Media pH [Min]
7
Media temperature [°C] [Max]
200 °C
Media temperature [°C] [Min]
2 °C
Medium alternative
Glycolic water up to 30%
Mounting version
Free
Number of ports
2
Permissible media
District heating/cooling circulation water
Pressure class
PN 16
Pressure nominal [bar]
16 bar
Product group
Motorized control valves
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Spindle position
Normally closed
Stroke [mm]
18 mm
Type
VFU 2
UK RoHS compliance
Out of scope
Valve body material
Grey cast iron EN-GJL-250 (GG-25)
Valve cone material
Stainless steel, mat. No. 1.4404
Valve seat material
Stainless steel, mat. No. 1.4021
Valve size
DN 80
003G1393
Stem extension ZF 6, AF range, DN 15-125
003G1394
Stem extension ZF 4, AF range, DN 15-125
003G1395
Stem extension ZF 4, FKM, AF range, DN 15-125
003G1396
Stem extension ZF 5, AF range, DN 15-125
003G1440
Combination pieces KF2 2 x G 1 1/4"
003G1441
Combination pieces KF3, 2 x G 1 1/4"
065B2778
Flow dividers, For valves: VFGS2, DN 65; DN 80
