065B5515

Part Number: 065B5515
065B5515
Manufacturer
Danfoss
Part number
065B5515
Category

Product Information

Extended Description

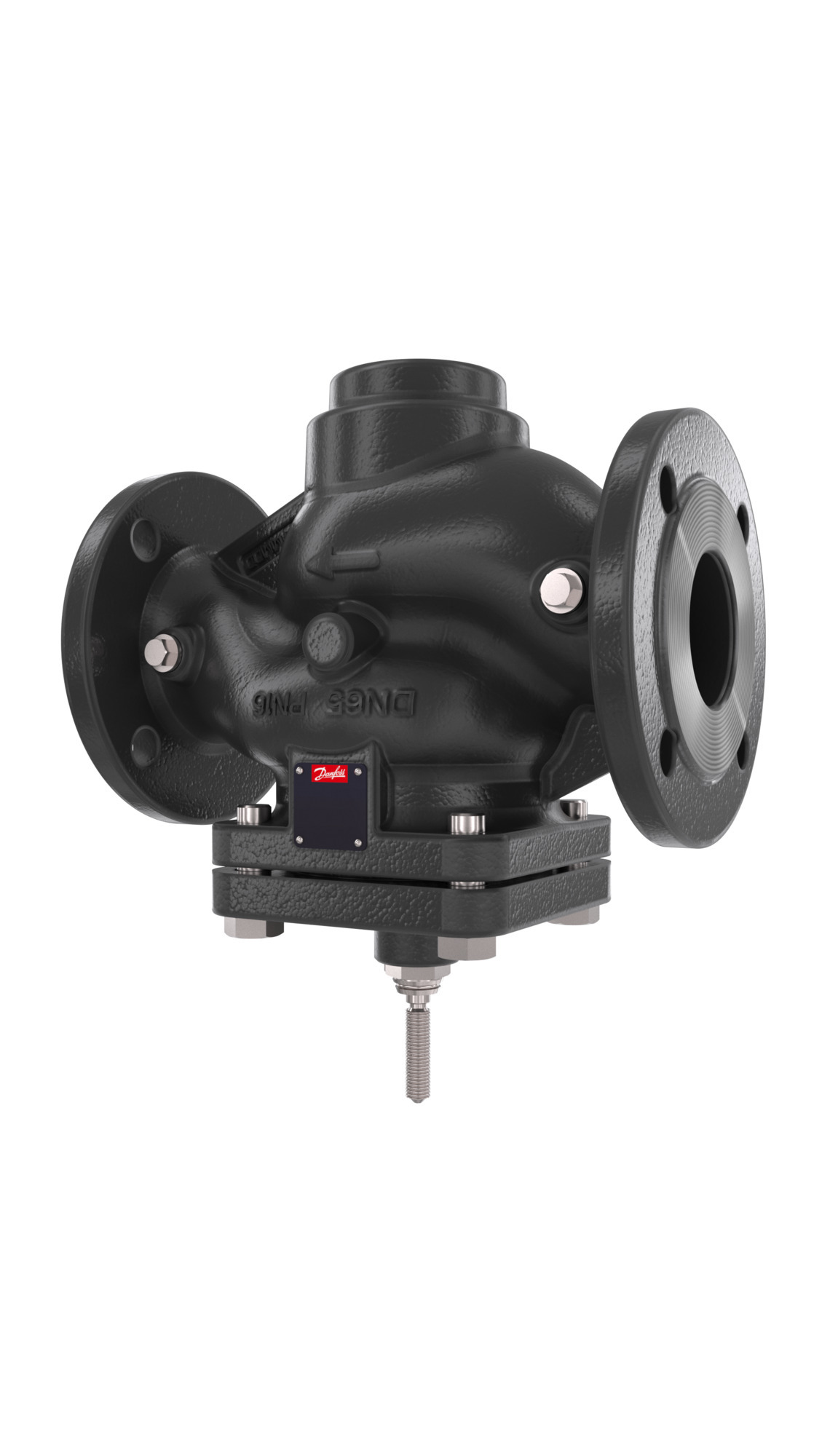

065B5515 Danfoss: Pressure operated valves
Gross weight
38 Kilogram
Net weight
32 Kilogram
Volume
84 Liter
EAN
5714279052503
Application
District heating and cooling
Cavitation factor
0.35
Cavitation factor 100%
0.28
Cavitation factor 25%
0.51
Cavitation factor 50%
0.4
Cavitation factor 75%
0.35
China RoHS compliance
Out of scope
Connection size
DN 80
Connection types
Flange
Contain batteries
No
Description
Pressure operated valves
Diameter [mm]
80 mm
Differential pressure range [bar] [Max]
20 bar
EU RoHS compliance
Out of scope
Kvs values [mÂł/h]
80 mÂł/h
Leakage rate [% Kvs]
0.03
Leakage through port max. [% Kvs]
0.03
Media pH [Max]
10
Media pH [Min]
7
Media temperature [°C] [Max]
150 °C
Media temperature [°C] [Min]
2 °C
Medium alternative
Glycolic water up to 30%
Mounting version
Free
Number of ports
2
Operating pressure [bar] [Max]
40 bar
Permissible media
District heating/cooling circulation water
Pressure class
PN 40
Pressure nominal [bar]
40 bar
Pressure relieve system control valve insert
Chamber
Product group
Pressure flow controllers
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Sealing DP material
Metal
Type
VFG 22
UK RoHS compliance
Out of scope
Valve body material
Cast steel EN-GP-240-GH (GS-C 25)
Valve cone DP material
Stainless steel mat. No. 1.4021
Valve seat DP material
Stainless steel, mat. No. 1.4021
Valve size
DN 80
003G1730
003G5604
AFP 2, PN 16, 1.50 bar - 5.00 bar, 80 cm²
003G5605
AFP 2, PN 16, 1.00 bar - 3.00 bar, 80 cm²
003G5606
AFP 2, PN 16, 1.50 bar - 4.00 bar, 160 cm²
003G5607
AFP 2, PN 16, 1.00 bar - 2.50 bar, 160 cm²
003G5608
AFP 2, PN 16, 0.50 bar - 1.50 bar, 160 cm²
003G5609
AFP 2, PN 16, 0.40 bar - 1.50 bar, 320 cm²
003G5610
AFP 2, PN 16, 0.10 bar - 1.00 bar, 320 cm²
003G5611
AFP 2, PN 16, 0.10 bar - 0.35 bar, 640 cm²
003G5612
AFP 2, PN 16, 0.10 bar - 1.00 bar, 160 cm²
003G5614
AFP 2, PN 40, 1.50 bar - 5.00 bar, 80 cm²
AFD 2/VFG 22(1) VFG22(1), VFQ22(1) Danfoss EU 230530EN0858104.05 Danfoss EU 230612EN0854103.04 Actuators pressure flow and temperature BV UKCA-0041-PESR-H-DAF 001-22-FBR Danfoss UK 230612EN0855102.02 Danfoss UK 230612EN0856102.02 VFG22(1)_DN65_065B5500_065B55210_l VFG 22(1)_DN65-250_PN40_AFP2_AMEi6_RFA VFG 22(1)_DN65-250_PN40_AFP2_RFA VFG22(1)_DN80_PN40_STEP VFG22(1)_DN80_PN40_2D VFG22(1)_DN80_PN40_3D
