065B5528
Part Number: 065B5528
Product Information
Extended Description

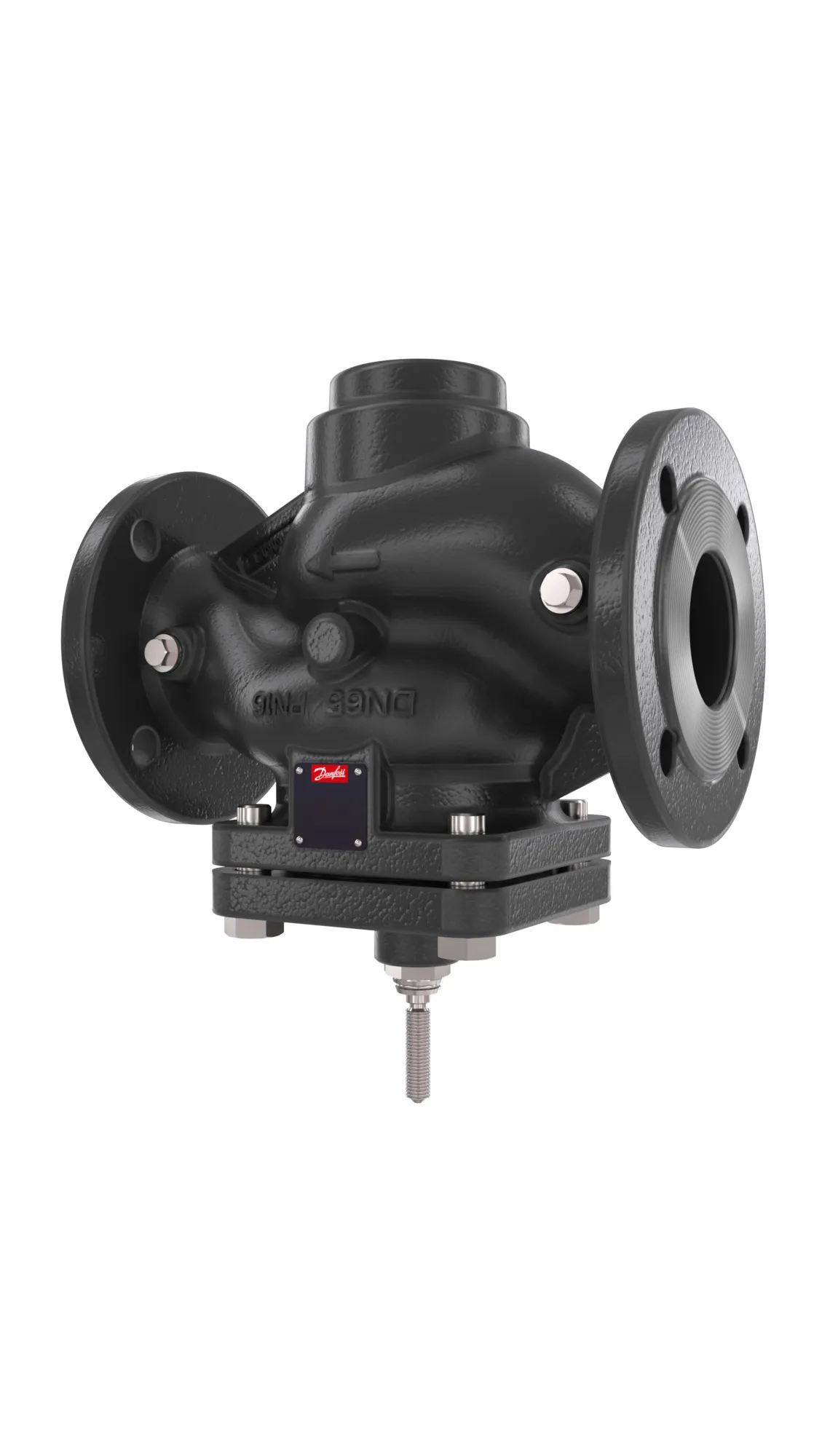

065B5528 Danfoss: Pressure operated valves
Gross weight
30 Kilogram
Net weight
24 Kilogram
Volume
84 Liter
EAN
5710104522807
Application
District heating and cooling
Cavitation factor
0.42
Cavitation factor 100%
0.36
Cavitation factor 25%
0.6
Cavitation factor 50%
0.49
Cavitation factor 75%
0.42
China RoHS compliance
Out of scope
Connection size
DN 65
Connection types
Flange
Contain batteries
No
Description
Pressure operated valves
Diameter [mm]
65 mm
Differential pressure range [bar] [Max]
20 bar
EU RoHS compliance
Out of scope
Kvs values [mÂł/h]
60 mÂł/h
Leakage rate [% Kvs]
0.01
Leakage through port max. [% Kvs]
0.01
Media pH [Max]
10
Media pH [Min]
7
Media temperature [°C] [Max]
150 °C
Media temperature [°C] [Min]
2 °C
Medium alternative
Glycolic water up to 30%
Mounting version
Free
Number of ports
2
Operating pressure [bar] [Max]
25 bar
Permissible media
District heating/cooling circulation water
Pressure class
PN 25
Pressure nominal [bar]
25 bar
Pressure relieve system control valve insert
Chamber
Product group
Pressure flow controllers
Sealing DP material
EPDM
Type
VFG 221
UK RoHS compliance
Out of scope
Valve body material
Ductile iron EN-GJS-400-18-LT (GGG 40.3)
Valve cone DP material
Stainless steel mat. No. 1.4021
Valve seat DP material
Stainless steel, mat. No. 1.4021
Valve size
DN 65
003G1730
003G1807
Valve Inserts, For product type: VFG, PN 16, DN 65
003G5604
AFP 2, PN 16, 1.50 bar - 5.00 bar, 80 cm²
003G5605
AFP 2, PN 16, 1.00 bar - 3.00 bar, 80 cm²
003G5606
AFP 2, PN 16, 1.50 bar - 4.00 bar, 160 cm²
003G5607
AFP 2, PN 16, 1.00 bar - 2.50 bar, 160 cm²
003G5608
AFP 2, PN 16, 0.50 bar - 1.50 bar, 160 cm²
003G5609
AFP 2, PN 16, 0.40 bar - 1.50 bar, 320 cm²
003G5610
AFP 2, PN 16, 0.10 bar - 1.00 bar, 320 cm²
003G5611
AFP 2, PN 16, 0.10 bar - 0.35 bar, 640 cm²
003G5612
AFP 2, PN 16, 0.10 bar - 1.00 bar, 160 cm²
003G5614
AFP 2, PN 40, 1.50 bar - 5.00 bar, 80 cm²
AFD 2/VFG 22(1)
VFG22(1), VFQ22(1)
Danfoss EU 230530EN0858104.05
Danfoss EU 230612EN0854103.04
Actuators pressure flow and temperature
BV UKCA-0041-PESR-H-DAF 001-22-FBR
Danfoss UK 230612EN0855102.02
Danfoss UK 230612EN0856102.02
VFG22(1)_DN65_065B5500_065B55210_l
VFG 22(1)_DN65-250_PN25_AFP2_AMEi6_RFA
VFG 22(1)_DN65-250_PN25_AFP2_RFA
VFG22(1)_DN65_PN25_3D
VFG22(1)_DN65_PN25_2D
VFG22(1)_DN65_PN25_STEP
