065B5534
Part Number: 065B5534
Product Information
Extended Description

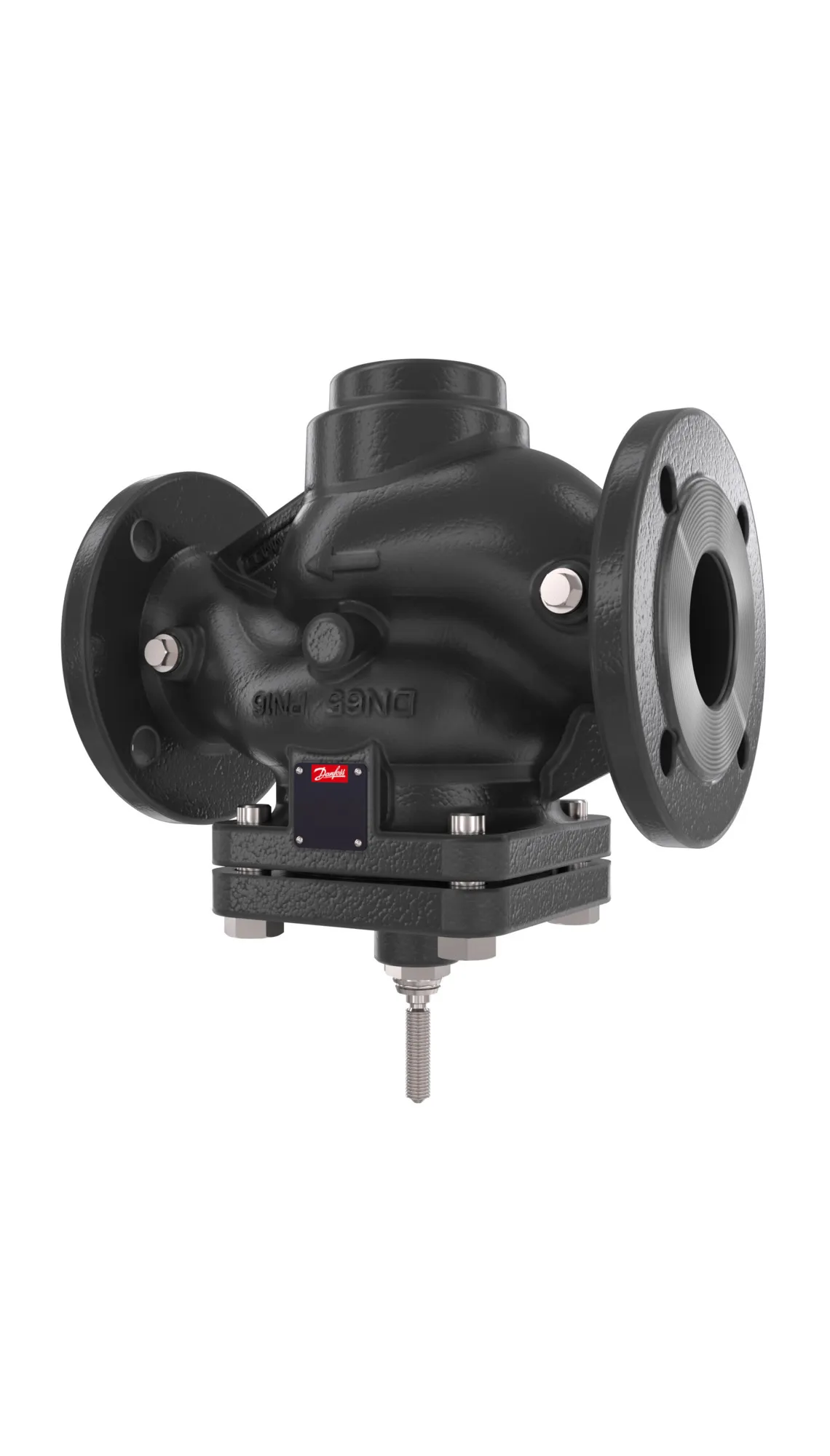

065B5534 Danfoss: Pressure operated valves
Gross weight
377 Kilogram
Net weight
350 Kilogram
Volume
746 Liter
EAN
5710104522920
Application
District heating and cooling
Cavitation factor
0.18
Cavitation factor 100%
0.12
Cavitation factor 25%
0.32
Cavitation factor 50%
0.25
Cavitation factor 75%
0.18
China RoHS compliance
Out of scope
Connection size
DN 250
Connection types
Flange
Contain batteries
No
Description
Pressure operated valves
Diameter [mm]
250 mm
Differential pressure range [bar] [Max]
10 bar
EU RoHS compliance
Out of scope
Kvs values [mÂł/h]
800 mÂł/h
Leakage rate [% Kvs]
0.01
Leakage through port max. [% Kvs]
0.01
Media pH [Max]
10
Media pH [Min]
7
Media temperature [°C] [Max]
150 °C
Media temperature [°C] [Min]
2 °C
Medium alternative
Glycolic water up to 30%
Mounting version
Free
Number of ports
2
Operating pressure [bar] [Max]
25 bar
Permissible media
District heating/cooling circulation water
Pressure class
PN 25
Pressure nominal [bar]
25 bar
Pressure relieve system control valve insert
Chamber
Product group
Pressure flow controllers
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Sealing DP material
EPDM
Type
VFG 221
UK RoHS compliance
Out of scope
Valve body material
Ductile iron EN-GJS-400-18-LT (GGG 40.3)
Valve cone DP material
Stainless steel mat. No. 1.4021
Valve seat DP material
Stainless steel, mat. No. 1.4021
Valve size
DN 250
003G5606
AFP 2, PN 16, 1.50 bar - 4.00 bar, 160 cm²
003G5607
AFP 2, PN 16, 1.00 bar - 2.50 bar, 160 cm²
003G5609
AFP 2, PN 16, 0.40 bar - 1.50 bar, 320 cm²
003G5610
AFP 2, PN 16, 0.10 bar - 1.00 bar, 320 cm²
003G5611
AFP 2, PN 16, 0.10 bar - 0.35 bar, 640 cm²
003G5616
AFP 2, PN 40, 1.50 bar - 4.00 bar, 160 cm²
003G5617
AFP 2, PN 40, 1.00 bar - 2.50 bar, 160 cm²
003G5619
AFP 2, PN 40, 0.40 bar - 1.50 bar, 320 cm²
003G5620
AFP 2, PN 40, 0.10 bar - 1.00 bar, 320 cm²
003G5621
AFP 2, PN 40, 0.10 bar - 0.35 bar, 640 cm²
AFD 2/VFG 22(1)
VFG22(1), VFQ22(1)
Danfoss EU 230530EN0858104.05
Danfoss EU 230612EN0854103.04
Actuators pressure flow and temperature
BV UKCA-0041-PESR-H-DAF 001-22-FBR
Danfoss UK 230612EN0855102.02
Danfoss UK 230612EN0856102.02
VFG22(1)_DN65_065B5500_065B55210_l
VFG 22(1)_DN65-250_PN25_AFP2_AMEi6_RFA
VFG 22(1)_DN65-250_PN25_AFP2_RFA
VFG22(1)_DN250_PN25_STEP
VFG22(1)_DN250_PN25_3D
VFG22(1)_DN250_PN25_2D
