065B5610

Part Number: 065B5610
065B5610
Manufacturer
Danfoss
Part number
065B5610
Category

Product Information

Extended Description

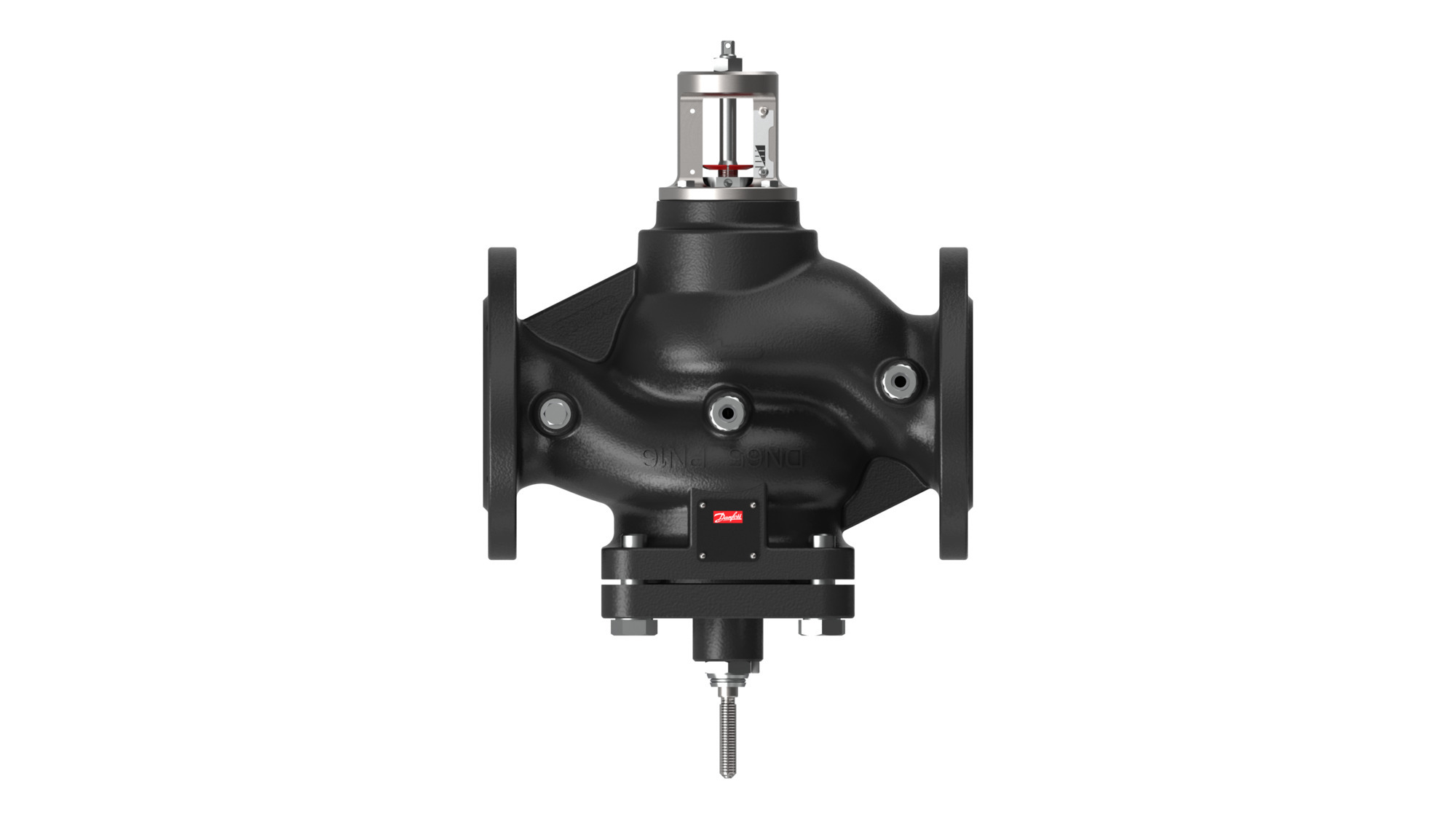

065B5610 Danfoss: Pressure operated valves
Gross weight
99 Kilogram
Net weight
89 Kilogram
Volume
191.5 Liter
EAN
5715162398708
Application
District heating and cooling
Cavitation factor
0.4
Cavitation factor 100%
0.39
Cavitation factor 25%
0.68
Cavitation factor 50%
0.47
Cavitation factor 75%
0.42
Connection types
Flange
Contain batteries
No
Description
Pressure operated valves
Diameter [mm]
125 mm
Differential pressure range [bar] [Max]
15 bar
Kvs values [m³/h]
250 m³/h
Leakage rate [% Kvs]
0.03
Leakage through port max. [% Kvs]
0.03
Media pH [Max]
10
Media pH [Min]
7
Media temperature [°C] [Max]
150 °C
Media temperature [°C] [Min]
2 °C
Medium alternative
Glycolic water up to 30%
Mounting version
Free
Number of ports
2
Operating pressure [bar] [Max]
25 bar
Permissible media
District heating/cooling circulation water
Pressure class
PN 25
Pressure nominal [bar]
25 bar
Pressure relieve system
Chamber
Product group
Pressure flow controllers
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Sealing DP material
EPDM
Type
VFQ 221
Valve body material
Ductile cast iron EN-GJS-400-18-LT (GGG 40.3)
Valve cone DP material
Stainless steel mat. No. 1.4021
Valve cone material
Stainless steel M. No. 1.4021
Valve seat DP material
Stainless steel, mat. No. 1.4021
Valve seat material
Stainless steel M. No. 1.4021
Valve size
DN 125
003G1730
003G1810
Valve Inserts, For product type: VFG, PN 16, DN 125
003G5600
AFQ 2, PN 16, 0.20 bar, 160 cm²
003G5601
AFQ 2, PN 16, 0.50 bar, 160 cm²
003G5608
AFP 2, PN 16, 0.50 bar - 1.50 bar, 160 cm²
003G5612
AFP 2, PN 16, 0.10 bar - 1.00 bar, 160 cm²
003G5618
AFP 2, PN 40, 0.50 bar - 1.50 bar, 160 cm²
003G5622
AFP 2, PN 40, 0.10 bar - 1.00 bar, 160 cm²
003G5710
AFPQ 2, PN 40, 0.20 bar - 1.00 bar, 160 cm²
003G5711
AFPQ 2, PN 40, 0.20 bar - 1.00 bar, 160 cm²
003G5712
AFPQ 2, PN 40, 0.50 bar - 1.50 bar, 160 cm²
003G5713
AFPQ 2, PN 40, 0.50 bar - 1.50 bar, 160 cm²
AFPB(-F) 2 / VFQ22(1) VFG22(1), VFQ22(1) ЕАС KZ 7100841.13.12.02339 LLC CDC EURO-TYSK UA.TR.089.330.05-23 Modul D Danfoss UA 10.01.23 Heat Control Valves ЕАС KZ 7100841.13.12.02339 LLC CDC EURO-TYSK UA.TR.089.330.05-23 Modul D Danfoss UA 10.01.23 Heat Control Valves ЕАС KZ 7100841.13.12.02339 LLC CDC EURO-TYSK UA.TR.089.330.05-23 Modul D Danfoss UA 10.01.23 Heat Control Valves ЕАС KZ 7100841.13.12.02339 VFQ22_VFQ221 VFQ22(1)_DN125_PN25_2D VFQ22(1)_DN125_PN25_STEP VFQ22(1)_DN125_PN25_3D
